849AT Datasheet and Replacement


   Type Designator: 849AT
   SMD Transistor Code: 2A
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.15 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 300(typ) MHz
   Collector Capacitance (Cc): 6(max) pF
   Forward Current Transfer Ratio (hFE), MIN: 110
   Noise Figure, dB: -
   Package: SOT523


 849AT Substitution

   - BJT ⓘ Cross-Reference Search

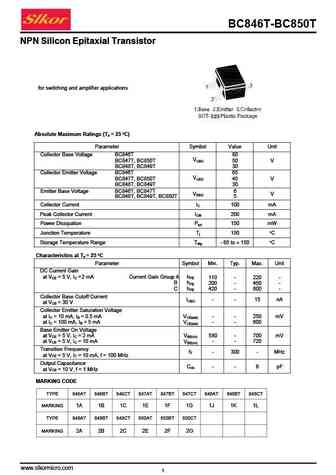

849AT Datasheet (PDF)

 ..1. Size:724K  slkor
 846at 846bt 846ct 847at 847bt 847ct 848at 848bt 848ct 849at 849bt 849ct 850at 850bt 850ct.pdf pdf_icon

849AT

BC846T-BC850TNPN Silicon Epitaxial Transistorfor switching and amplifier applicationsOAbsolute Maximum Ratings (T = 25 C)aParameter Symbol Value UnitCollector Base Voltage BC846T 80VCBOBC847T, BC850T 50 VBC848T, BC849T 30Collector Emitter Voltage BC846T 65VCEOBC847T, BC850T 45 VBC848T, BC849T 30Emitter Base Voltage BC846T, BC847T 6VEBO VBC848T, BC849T, BC850T 5

Datasheet: 846BT , 846CT , 847AT , 847BT , 847CT , 848AT , 848BT , 848CT , 2SC945 , 849BT , 849CT , 850AT , 850BT , 850CT , 857AW , 857BW , 858AW .
