10N60 Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: 10N60 📄📄
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 156 W
|Vds|ⓘ - Voltaje máximo drenador-fuente: 600 V
|Vgs|ⓘ - Voltaje máximo fuente-puerta: 30 V
|Id|ⓘ - Corriente continua de drenaje: 10 A
Tjⓘ - Temperatura máxima de unión: 150 °C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 69 nS
Cossⓘ - Capacitancia de salida: 166 pF
RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.72 Ohm
Encapsulados: TO-220 TO-220F TO-220F1 TO-220F2 TO-262 TO-263
📄📄 Copiar
Búsqueda de reemplazo de 10N60 MOSFET
- Selecciónⓘ de transistores por parámetros
10N60 datasheet
10n60.pdf
UNISONIC TECHNOLOGIES CO., LTD 10N60 Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 10N60 is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switchin
10n60 10n60f.pdf
GOFORD 10N60/10N60F 600V N-Channel MOSFET GENERAL DESCRIPTION VDSS RDS(ON) ID This Power MOSFET is produced using advanced planar stripe DMOS 600V 0.75 10A technology.This advanced technology has been especially tailored tominimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are
10n60.pdf
isc N-Channel MOSFET Transistor 10N60 FEATURES Drain Current I = 9.5A@ T =25 D C Drain Source Voltage- V = 600V(Min) DSS Static Drain-Source On-Resistance R = 0.73 (Max) DS(on) Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRITION Designed for high efficiency switch mode power supply. ABSOLUTE MAXIMUM RATINGS(T =25
sgs10n60ruf.pdf
April 2001 IGBT SGS10N60RUF Short Circuit Rated IGBT General Description Features Fairchild's RUF series of Insulated Gate Bipolar Transistors Short circuit rated 10us @ TC = 100 C, VGE = 15V (IGBTs) provide low conduction and switching losses as High speed switching well as short circuit ruggedness. The RUF series is Low saturation voltage VCE(sat) = 2.2 V @ IC = 10A d
irfbl10n60a.pdf
PD - 91819C SMPS MOSFET IRFBL10N60A HEXFET Power MOSFET Applications VDSS Rds(on) max ID Switch Mode Power Supply ( SMPS ) Uninterruptable Power Supply 600V 0.61 11A High Speed Power Switching Benefits Low Gate Charge Qg results in simple Drive Requirement Improved Gate, Avalanche and Dynamic dv/dt Ruggedness Fully Characterized Capacitance and Avalanche Voltage and Cu
php10n60e.pdf
Philips Semiconductors Preliminary specification PowerMOS transistors PHP10N60E Avalanche energy rated FEATURES SYMBOL QUICK REFERENCE DATA d Repetitive Avalanche Rated Fast switching VDSS = 600 V Stable off-state characteristics High thermal cycling performance ID = 9.6 A g Low thermal resistance RDS(ON) 0.75 s GENERAL DESCRIPTION PINNING SOT78 (TO22
stl10n60m2.pdf
STL10N60M2 N-channel 600 V, 0.580 typ., 5.5 A MDmesh II Plus low Qg Power MOSFET in a PowerFLAT 5x6 HV package Datasheet - production data Features VDS @ Order code TJmax RDS(on) max ID STL10N60M2 650 V 0.660 5.5 A Extremely low gate charge 1 2 3 Lower RDS(on) x area vs previous generation 4 Low gate input resistance PowerFLAT 5x6 HV 100% aval
stb10n60m2 std10n60m2 stp10n60m2 stu10n60m2.pdf
STB10N60M2, STD10N60M2, STP10N60M2, STU10N60M2 N-channel 600 V, 0.550 typ., 7.5 A MDmesh II Plus low Qg Power MOSFETs in D PAK, DPAK, TO-220 and IPAK packages Datasheet - production data Features TAB TAB RDS(on) 3 Order codes VDS @ TJmax max ID 1 3 1 DPAK STB10N60M2 D 2 PAK STD10N60M2 650 V 0.600 7.5 A STP10N60M2 TAB TAB STU10N60M2 3 Extremely low gate ch
stgb10n60.pdf
STGP10N60L N-CHANNEL 10A - 600V - TO-220 LOGIC LEVEL IGBT TYPE VCES VCE(sat) IC STGP10N60L 600 V
stf10n60m2.pdf
STF10N60M2, STFI10N60M2 N-channel 600 V, 0.550 typ., 7.5 A MDmesh II Plus low Qg Power MOSFETs in TO-220FP and I PAKFP packages Datasheet - production data Features RDS(on) Order codes VDS @ TJmax max ID STF10N60M2 650 V 0.6 7.5 A STFI10N60M2 Extremely low gate charge 3 Lower RDS(on) x area vs previous generation 1 2 2 1 3 Low gate input resistance 2 T
fqp10n60cf fqpf10n60cf.pdf
February 2007 TM FRFET FQP10N60CF / FQPF10N60CF 600V N-Channel MOSFET Features Description 9A, 600V, RDS(on) = 0.8 @VGS = 10 V These N-Channel enhancement mode power field effect transis- tors are produced using Fairchild s proprietary, planar stripe, Low gate charge ( typical 44 nC) DMOS technology. Low Crss ( typical 18 pF) This advanced technology has been especia
fqb10n60ctm fqi10n60ctu.pdf
TM QFET FQB10N60C / FQI10N60C 600V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 9.5A, 600V, RDS(on) = 0.73 @VGS = 10 V transistors are produced using Fairchild s proprietary, Low gate charge ( typical 44 nC) planar stripe, DMOS technology. Low Crss ( typical 18 pF) This advanced technology has been especially tailore
fdp10n60zu fdpf10n60zut.pdf
April 2009 TM UniFET FDP10N60ZU / FDPF10N60ZUT tm N-Channel MOSFET, FRFET 600V, 9A, 0.8 Features Description RDS(on) = 0.65 ( Typ.)@ VGS = 10V, ID = 4.5A These N-Channel enhancement mode power field effect transistors are produced using Fairchild s proprietary, planar Low gate charge ( Typ. 31nC) stripe, DMOS technology. Low Crss ( Typ. 15pF) This advance tech
sgs10n60rufd.pdf
April 2001 IGBT SGS10N60RUFD Short Circuit Rated IGBT General Description Features Fairchild's RUFD series of Insulated Gate Bipolar Short circuit rated 10us @ TC = 100 C, VGE = 15V Transistors (IGBTs) provide low conduction and switching High speed switching losses as well as short circuit ruggedness. The RUFD Low saturation voltage VCE(sat) = 2.2 V @ IC = 10A series i
fqpf10n60ct fqpf10n60cydtu.pdf
April 2007 QFET FQP10N60C / FQPF10N60C 600V N-Channel MOSFET Features Description 9.5A, 600V, RDS(on) = 0.73 @VGS = 10 V These N-Channel enhancement mode power field effect transis- tors are produced using Fairchild s proprietary, planar stripe, Low gate charge ( typical 44 nC) DMOS technology. Low Crss ( typical 18 pF) This advanced technology has been especiall
fqp10n60.pdf
TIGER ELECTRONIC CO.,LTD Product specification 600V N-Channel MOSFET FQP10N60 DESCRIPTION These N-Channel enhancement mode power field effect transistors are produced using Fairchild s proprietary,planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in t
sgp10n60rufd.pdf
IGBT SGP10N60RUFD Short Circuit Rated IGBT General Description Features Fairchild's RUFD series of Insulated Gate Bipolar Short circuit rated 10us @ TC = 100 C, VGE = 15V Transistors (IGBTs) provide low conduction and switching High speed switching losses as well as short circuit ruggedness. The RUFD Low saturation voltage VCE(sat) = 2.2 V @ IC = 10A series is designed f
fqa10n60c.pdf
TM QFET FQA10N60C 600V N-Channel MOSFET General Description Features These N-Channel enhancement mode power field effect 10A, 600V, RDS(on) = 0.73 @VGS = 10 V transistors are produced using Fairchild s proprietary, Low gate charge ( typical 44 nC) planar stripe, DMOS technology. Low Crss ( typical 18 pF) This advanced technology has been especially tailored to Fas
fdbl0110n60.pdf
March 2015 FDBL0110N60 N-Channel PowerTrench MOSFET 60 V, 300 A, 1.2 m Features Typical RDS(on) = 0.85 m at VGS = 10V, ID = 80 A Typical Qg(tot) = 170 nC at VGS = 10V, ID = 80 A UIS Capability D RoHS Compliant Applications Industrial Motor Drive G Industrial Power Supply Industrial Automation Battery Operated tools S Battery Protection For current package draw
fqp10n60c fqpf10n60c.pdf
April 2007 QFET FQP10N60C / FQPF10N60C 600V N-Channel MOSFET Features Description 9.5A, 600V, RDS(on) = 0.73 @VGS = 10 V These N-Channel enhancement mode power field effect transis- tors are produced using Fairchild s proprietary, planar stripe, Low gate charge ( typical 44 nC) DMOS technology. Low Crss ( typical 18 pF) This advanced technology has been especiall
ssf10n60a.pdf
SSF10N60A Advanced Power MOSFET FEATURES BVDSS = 600 V Avalanche Rugged Technology RDS(on) = 0.8 Rugged Gate Oxide Technology Lower Input Capacitance ID = 6.9 A Improved Gate Charge Extended Safe Operating Area TO-3PF Lower Leakage Current 25 A (Max.) @ VDS = 600V Low RDS(ON) 0.646 (Typ.) 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol
fdp10n60nz fdpf10n60nz.pdf
November 2013 FDP10N60NZ / FDPF10N60NZ N-Channel UniFETTM II MOSFET 600 V, 10 A, 750 m Features Description RDS(on) = 640 m (Typ.) @ VGS = 10 V, ID = 5 A UniFETTM II MOSFET is Fairchild Semiconductor s high voltage MOSFET family based on advanced planar stripe and DMOS Low Gate Charge (Typ. 23 nC) technology. This advanced MOSFET family has the smallest Low Crss (Typ.
sgh10n60rufd.pdf
CO-PAK IGBT SGH10N60RUFD FEATURES TO-3P * Short Circuit rated 10uS @Tc=100 * High Speed Switching * Low Saturation Voltage VCE(sat) = 1.95 V @ Ic=10A * High Input Impedance * CO-PAK, IGBT with FRD Trr = 42nS (Typ) C APPLICATIONS * AC & DC Motor controls G * General Purpose Inverters * Robotics , Servo Controls * Power Supply E * Lamp Ballast ABSOLUTE MAXIMUM RATINGS
sgp10n60ruf.pdf
N-CHANNEL IGBT SGP10N60RUF FEATURES TO-220 * Short Circuit rated 10uS @Tc=100 * High Speed Switching * Low Saturation Voltage VCE(sat) = 1.95 V @ Ic=10A * High Input Impedance APPLICATIONS C * AC & DC Motor controls * General Purpose Inverters G * Robotics , Servo Controls * Power Supply * Lamp Ballast E ABSOLUTE MAXIMUM RATINGS Symbol Rating Units Characteristics VC
sgp10n60rufd.pdf
CO-PAK IGBT SGP10N60RUFD FEATURES TO-220 * Short Circuit rated 10uS @Tc=100 * High Speed Switching * Low Saturation Voltage VCE(sat) = 2.1 V @ Ic=10A * High Input Impedance * CO-PAK, IGBT with FRD Trr = 50nS (Typ) C APPLICATIONS * AC & DC Motor controls G * General Purpose Inverters * Robotics , Servo Controls * Power Supply E * Lamp Ballast ABSOLUTE MAXIMUM RATINGS
ssp10n60a.pdf
Advanced Power MOSFET FEATURES BVDSS = 600 V Avalanche Rugged Technology RDS(on) = 0.8 Rugged Gate Oxide Technology Lower Input Capacitance ID = 9 A Improved Gate Charge Extended Safe Operating Area A Lower Leakage Current 25 (Max.) @ VDS = 600V Low RDS(ON) 0.646 (Typ.) 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol Characteristic Value
sss10n60a.pdf
Advanced Power MOSFET FEATURES BVDSS = 600 V Avalanche Rugged Technology RDS(on) = 0.8 Rugged Gate Oxide Technology Lower Input Capacitance ID = 5.1 A Improved Gate Charge Extended Safe Operating Area A Lower Leakage Current 25 (Max.) @ VDS = 600V Low RDS(ON) 0.646 (Typ.) 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol Characteristic Value
sgw10n60rufd.pdf
CO-PAK IGBT SGW10N60RUFD FEATURES D2-PAK * Short Circuit rated 10uS @Tc=100 * High Speed Switching * Low Saturation Voltage VCE(sat) = 1.95 V @ Ic=10A * High Input Impedance * CO-PAK, IGBT with FRD Trr = 42nS (Typ) C APPLICATIONS * AC & DC Motor controls G * General Purpose Inverters * Robotics , Servo Controls * Power Supply E * Lamp Ballast ABSOLUTE MAXIMUM RATING
ssh10n60a.pdf
Advanced Power MOSFET FEATURES BVDSS = 600 V Avalanche Rugged Technology RDS(on) = 0.8 Rugged Gate Oxide Technology Lower Input Capacitance ID = 10 A Improved Gate Charge Extended Safe Operating Area A Lower Leakage Current 25 (Max.) @ VDS = 600V Low RDS(ON) 0.646 (Typ.) 1 2 3 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol Characteristic Value
dmg10n60sct.pdf
DMG10N60SCT N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features and Benefits I Low Input Capacitance D BV R DSS DS(ON) T = +25 C C High BV Rating for Power Application DSS 600V 0.75 @V = 10V 12A GS Low Input/Output Leakage Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Note 3) For autom
iku10n60r.pdf
IGBT IGBT with integrated diode in packages offering space saving advantage IKD10N60R, IKU10N60R 600V TRENCHSTOPTM RC-Series for hard switching applications Datasheet Industrial & Multimarket IKD10N60R, IKU10N60R TRENCHSTOPTM RC-Series for hard switching applications IGBT with integrated diode in packages offering space saving advantage C Features TRENCHSTOPTM Reverse Conducting (R
igp10n60trev2 3g.pdf
IGP10N60T TrenchStop Series q Low Loss IGBT in TrenchStop and Fieldstop technology Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C C Short circuit withstand time 5 s Designed for - Variable Speed Drive for washing machines and air G conditioners E - induction cooking - Uninterrupted Power Supply TrenchStop and Fie
ikp10n60t.pdf
IKP10N60T TRENCHSTOP Series p Low Loss DuoPack IGBT in TRENCHSTOP and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode Features C Very low VCE(sat) 1.5V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s Designed for G E - Variable Speed Drive for washing machines, air condition
sgp10n60a sgw10n60a rev2.pdf
SGP10N60A SGW10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter PG-TO-247-3 NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable b
ikb10n60trev2 3g.pdf
IKB10N60T TrenchStop Series p Low Loss DuoPack IGBT in TrenchStop and Fieldstop technology with soft, fast recovery anti-parallel EmCon 3 diode C Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s G E Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners Trenc
ihd10n60ra.pdf
IGBT Reverse conducting IGBT with monolithic body diode IHD10N60RA 600V Soft Switching Series Qualified to automotive standard AECQ101 Data sheet Industrial Power Control IHD10N60RA Soft Switching Series Reverse conducting IGBT with monolithic body diode C Features Powerful monolithic body diode with low forward voltage designed for soft commutation only TRENCHSTOPTM t
skp10n60a.pdf
SKP10N60A, SKB10N60A SKW10N60A Fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode 75% lower Eoff compared to previous generation C combined with low conduction losses Short circuit withstand time 10 s Designed for - Motor controls G E - Inverter NPT-Technology for 600V applications offers - very tight parameter distribution - hig
aihd10n60r.pdf
AIHD10N60R TRENCHSTOPTM RC-Series for hard switching applications IGBT with integrated diode in packages offering space saving advantage C Features TRENCHSTOPTM Reverse Conducting (RC) technology for 600V applications offering Optimised V and V for low conduction losses CEsat F G Smooth switching performance leading to low EMI levels E Very tight parameter distribution
sgb10n60a .pdf
SGB10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switc
ikd10n60r.pdf
IGBT IGBT with integrated diode in packages offering space saving advantage IKD10N60R 600V TRENCHSTOPTM RC-Series for hard switching applications Data sheet Industrial Power Control IKD10N60R TRENCHSTOPTM RC-Series for hard switching applications IGBT with integrated diode in packages offering space saving advantage C Features TRENCHSTOPTM Reverse Conducting (RC) technology for 600
ikd10n60ra.pdf
IGBT IGBT with integrated diode in packages offering space saving advantage IKD10N60RA 600V TRENCHSTOPTM RC-Series for hard switching applications Data sheet Industrial Power Control IKD10N60RA TRENCHSTOPTM RC-Series for hard switching applications IGBT with integrated diode in packages offering space saving advantage C Features TRENCHSTOPTM Reverse Conducting (RC) technology for 6
ikb10n60t.pdf
IKB10N60T TRENCHSTOP Series p Low Loss DuoPack IGBT in TRENCHSTOP and Fieldstop technology with soft, fast recovery anti-parallel Emitter Controlled HE diode Features C Very low VCE(sat) 1.5V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s Designed for frequency inverters for washing machines, fans, pumps and vacuum G
igb10n60t.pdf
IGB10N60T TRENCHSTOP Series p Low Loss IGBT IGBT in TRENCHSTOP and Fieldstop technology Features C Very low VCE(sat) 1.5V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s Designed for frequency inverters for washing machines, fans, pumps and vacuum G cleaners E TRENCHSTOP technology for 600V applications offers
skw10n60a.pdf
SKP10N60A, SKB10N60A SKW10N60A Fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode 75% lower Eoff compared to previous generation C combined with low conduction losses Short circuit withstand time 10 s Designed for - Motor controls G E - Inverter NPT-Technology for 600V applications offers - very tight parameter distribution - hig
igp10n60t.pdf
IGP10N60T TRENCHSTOP Series q Low Loss IGBT IGBT in TRENCHSTOP and Fieldstop technology Features Very low VCE(sat) 1.5V (typ.) C Maximum Junction Temperature 175 C Short circuit withstand time 5 s Designed for - Variable Speed Drive for washing machines and air conditioners G - induction cooking E - Uninterrupted Power Supply TRENCHS
igb10n60t rev1 2g.pdf
IGB10N60T TrenchStop Series p Low Loss IGBT in TrenchStop and Fieldstop technology C Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s G E Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners TrenchStop technology for 600 V applications offers - very tight
ihd10n60ra 1 4.pdf
IHD10N60RA Soft Switching Series Reverse conducting IGBT with monolithic body diode C Powerful monolithic body diode with low forward voltage designed for soft commutation only TrenchStop technology applications offers G E - very tight parameter distribution - high ruggedness, temperature stable behavior - low V CEsat - easy parallel switching capability due to pos
skb10n60a.pdf
SKB10N60A Fast IGBT in NPT-technology with soft, fast recovery anti-parallel Emitter Controlled Diode C 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 s G E Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners NPT-Technology for 600V applications offers - ver
ikd10n60r iku10n60r.pdf
IGBT IGBT with integrated diode in packages offering space saving advantage IKD10N60R, IKU10N60R 600V TRENCHSTOPTM RC-Series for hard switching applications Datasheet Industrial & Multimarket IKD10N60R, IKU10N60R TRENCHSTOPTM RC-Series for hard switching applications IGBT with integrated diode in packages offering space saving advantage C Features TRENCHSTOPTM Reverse Conducting (R
skp10n60a skw10n60a.pdf
SKP10N60A SKW10N60A Fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode C 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 s G E Designed for - Motor controls - Inverter NPT-Technology for 600V applications offers - very tight parameter distribution - hig
sgw10n60a.pdf
SGP10N60A SGW10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter PG-TO-247-3 NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable b
skb10n60ag.pdf
SKB10N60A Fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode C 75% lower Eoff compared to previous generation combined with low conduction losses Short circuit withstand time 10 s G E Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners NPT-Technology for 600V applications offers - very tight
ika10n60t.pdf
IKA10N60T TrenchStop Series Low Loss DuoPack IGBT in Trench and Fieldstop technology with soft, fast recovery anti-parallel EmCon HE diode C Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s G E Designed for - Variable Speed Drive for washing machines, air conditioners and induction cooking - U
sgb10n60a.pdf
SGB10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switc
ika10n60trev2 3g.pdf
IKA10N60T TrenchStop Series Low Loss DuoPack IGBT in TrenchStop and Fieldstop technology with soft, fast recovery anti-parallel EmCon HE diode Features C Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s G E TrenchStop and Fieldstop technology for 600 V applications offers - very tigh
ikp10n60trev2 3g.pdf
IKP10N60T TrenchStop Series p Low Loss DuoPack IGBT in TrenchStop and Fieldstop technology with soft, fast recovery anti-parallel EmCon HE diode C Very low VCE(sat) 1.5 V (typ.) Maximum Junction Temperature 175 C Short circuit withstand time 5 s G E Designed for - Variable Speed Drive for washing machines, air conditioners and induction cook
sgp10n60a.pdf
SGP10N60A SGW10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter PG-TO-247-3 NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable b
sgp10n60a sgw10n60a rev2 5g.pdf
SGP10N60A SGW10N60A Fast IGBT in NPT-technology C 75% lower Eoff compared to previous generation combined with low conduction losses G Short circuit withstand time 10 s E Designed for - Motor controls - Inverter PG-TO-247-3 NPT-Technology for 600V applications offers - very tight parameter distribution - high ruggedness, temperature stable b
ixsa10n60b2d1 ixsp10n60b2d1.pdf
High Speed IGBT IXSA 10N60B2D1 VCES = 600 V IXSP 10N60B2D1 with Diode IC25 = 20 A VCE(sat) = 2.5 V Short Circuit SOA Capability Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-263 (IXSA) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V G VGEM Transient 30 V E C (TAB) IC25 TC = 25 C20 A TO-220AB (IXSP)
ixgp10n60.pdf
Preliminary data VCES IC25 VCE(sat) Low VCE(sat) IGBT IXGA/IXGP/IXGH10N60 600 V 20 A 2.5 V High speed IGBT IXGA/IXGP/IXGH10N60A 600 V 20 A 3.0 V TO-220AB(IXGP) Symbol Test Conditions Maximum Ratings G C E VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V TO-263 AA (IXGA) VGES Continuous 20 V VGEM Transient 30 V G IC25 TC = 25 C20 A C (TAB) E
ixsh10n60b2d1 ixsq10n60b2d1.pdf
High Speed IGBT IXSH 10N60B2D1 VCES = 600 V IXSQ 10N60B2D1 with Diode IC25 = 20 A Short Circuit SOA Capability VCE(sat) = 2.5 V Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-247 (IXSH) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V VGEM Transient 30 V G (TAB) C E IC25 TC = 25 C20 A IC110 TC = 110
ixsa10n60b2d1.pdf
High Speed IGBT IXSA 10N60B2D1 VCES = 600 V IXSP 10N60B2D1 with Diode IC25 = 20 A VCE(sat) = 2.5 V Short Circuit SOA Capability Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-263 (IXSA) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V G VGEM Transient 30 V E C (TAB) IC25 TC = 25 C20 A TO-220AB (IXSP)
ixxr110n60b4h1.pdf
Advance Technical Information XPTTM 600V VCES = 600V IXXR110N60B4H1 GenX4TM w/ Diode IC110 = 75A VCE(sat) 2.0V (Electrically Isolated Tab) tfi(typ) = 27ns Extreme Light Punch Through IGBT for 5-30kHz Switching ISOPLUS247TM Symbol Test Conditions Maximum Ratings VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C, RGE = 1M 600 V VGES Continuous
ixxk110n60b4h1.pdf
Advance Technical Information VCES = 600V XPTTM 600V IXXK110N60B4H1 IC100 = 110A GenX4TM w/ Diode IXXX110N60B4H1 VCE(sat) 2.0V tfi(typ) = 27ns Extreme Light Punch Through IGBT for 5-30kHz Switching TO-264 (IXXK) Symbol Test Conditions Maximum Ratings G VCES TJ = 25 C to 150 C 600 V C E VCGR TJ = 25 C to 150 C, RGE = 1M 600 V Tab VGES Continuous
ixsq10n60b2d1.pdf
High Speed IGBT IXSH 10N60B2D1 VCES = 600 V IXSQ 10N60B2D1 with Diode IC25 = 20 A Short Circuit SOA Capability VCE(sat) = 2.5 V Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-247 (IXSH) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V VGEM Transient 30 V G (TAB) C E IC25 TC = 25 C20 A IC110 TC = 110
ixgp10n60-a ixga10n60-a ixgh10n60-a.pdf
Preliminary data VCES IC25 VCE(sat) Low VCE(sat) IGBT IXGA/IXGP/IXGH10N60 600 V 20 A 2.5 V High speed IGBT IXGA/IXGP/IXGH10N60A 600 V 20 A 3.0 V TO-220AB(IXGP) Symbol Test Conditions Maximum Ratings G C E VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V TO-263 AA (IXGA) VGES Continuous 20 V VGEM Transient 30 V G IC25 TC = 25 C20 A C (TAB) E
ixgh10n60.pdf
Preliminary data VCES IC25 VCE(sat) Low VCE(sat) IGBT IXGA/IXGP/IXGH10N60 600 V 20 A 2.5 V High speed IGBT IXGA/IXGP/IXGH10N60A 600 V 20 A 3.0 V TO-220AB(IXGP) Symbol Test Conditions Maximum Ratings G C E VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V TO-263 AA (IXGA) VGES Continuous 20 V VGEM Transient 30 V G IC25 TC = 25 C20 A C (TAB) E
ixtp10n60pm.pdf
Preliminary Technical Information IXTP 10N60PM VDSS = 600 V PolarHVTM ID25 = 5 A Power MOSFET RDS(on) 740 m (Electrically Isolated Tab) N-Channel Enhancement Mode Avalanche Rated OVERMOLDED TO-220 Symbol Test Conditions Maximum Ratings (IXTP...M) OUTLINE VDSS TJ = 25 C to 175 C 600 V VDGR TJ = 25 C to 175 C; RGS = 1 M 600 V VGS Continuou
ixsh10n60b2d1.pdf
High Speed IGBT IXSH 10N60B2D1 VCES = 600 V IXSQ 10N60B2D1 with Diode IC25 = 20 A Short Circuit SOA Capability VCE(sat) = 2.5 V Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-247 (IXSH) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V VGEM Transient 30 V G (TAB) C E IC25 TC = 25 C20 A IC110 TC = 110
ixsp10n60b2d1.pdf
High Speed IGBT IXSA 10N60B2D1 VCES = 600 V IXSP 10N60B2D1 with Diode IC25 = 20 A VCE(sat) = 2.5 V Short Circuit SOA Capability Preliminary Data Sheet D1 Symbol Test Conditions Maximum Ratings TO-263 (IXSA) VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V VGES Continuous 20 V G VGEM Transient 30 V E C (TAB) IC25 TC = 25 C20 A TO-220AB (IXSP)
ixti10n60p.pdf
IXTA 10N60P VDSS = 600 V PolarHVTM IXTI 10N60P ID25 = 10 A Power MOSFET IXTP 10N60P RDS(on) 740 m N-Channel Enhancement Mode Avalanche Rated Symbol Test Conditions Maximum Ratings TO-263 (IXTA) VDSS TJ = 25 C to 175 C 600 V VDGR TJ = 25 C to 175 C; RGS = 1 M 600 V G VGS Continuous Transient 30 V S (TAB) ID25 TC = 25 C10 A
ixxx110n60b4h1.pdf
Advance Technical Information VCES = 600V XPTTM 600V IXXK110N60B4H1 IC100 = 110A GenX4TM w/ Diode IXXX110N60B4H1 VCE(sat) 2.0V tfi(typ) = 27ns Extreme Light Punch Through IGBT for 5-30kHz Switching TO-264 (IXXK) Symbol Test Conditions Maximum Ratings G VCES TJ = 25 C to 150 C 600 V C E VCGR TJ = 25 C to 150 C, RGE = 1M 600 V Tab VGES Continuous
ixgh10n60a.pdf
Preliminary data VCES IC25 VCE(sat) Low VCE(sat) IGBT IXGA/IXGP/IXGH10N60 600 V 20 A 2.5 V High speed IGBT IXGA/IXGP/IXGH10N60A 600 V 20 A 3.0 V TO-220AB(IXGP) Symbol Test Conditions Maximum Ratings G C E VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V TO-263 AA (IXGA) VGES Continuous 20 V VGEM Transient 30 V G IC25 TC = 25 C20 A C (TAB) E
ixgp10n60a.pdf
Preliminary data VCES IC25 VCE(sat) Low VCE(sat) IGBT IXGA/IXGP/IXGH10N60 600 V 20 A 2.5 V High speed IGBT IXGA/IXGP/IXGH10N60A 600 V 20 A 3.0 V TO-220AB(IXGP) Symbol Test Conditions Maximum Ratings G C E VCES TJ = 25 C to 150 C 600 V VCGR TJ = 25 C to 150 C; RGE = 1 M 600 V TO-263 AA (IXGA) VGES Continuous 20 V VGEM Transient 30 V G IC25 TC = 25 C20 A C (TAB) E
ndf10n60z ndp10n60z.pdf
NDF10N60Z, NDP10N60Z N-Channel Power MOSFET 600 V, 0.75 W Features Low ON Resistance Low Gate Charge http //onsemi.com Zener Diode-protected Gate 100% Avalanche Tested These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS VDSS RDS(ON) (MAX) @ 5 A Compliant 600 V 0.75 ABSOLUTE MAXIMUM RATINGS (TC = 25 C unless otherwise noted) Rating Symbol NDF NDP U
fgp10n60undf.pdf
Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
fdbl0110n60.pdf
Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
ndf10n60z.pdf
NDF10N60Z N-Channel Power MOSFET 600 V, 0.75 W Features Low ON Resistance Low Gate Charge www.onsemi.com ESD Diode-Protected Gate 100% Avalanche Tested 100% Rg Tested VDSS (@ TJmax) RDS(ON) (MAX) @ 5 A These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS 650 V 0.75 W Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 C unless otherwise noted) N-Channel
fqp10n60c fqpf10n60c.pdf
Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
fdp10n60nz fdpf10n60nz.pdf
November 2013 FDP10N60NZ / FDPF10N60NZ N-Channel UniFETTM II MOSFET 600 V, 10 A, 750 m Features Description RDS(on) = 640 m (Typ.) @ VGS = 10 V, ID = 5 A UniFETTM II MOSFET is Fairchild Semiconductor s high voltage MOSFET family based on advanced planar stripe and DMOS Low Gate Charge (Typ. 23 nC) technology. This advanced MOSFET family has the smallest Low Crss (Typ.
10n60l-tf3t-t 10n60g-tf3t-t 10n60l- t2q-t 10n60g- t2q-t 10n60l-tq2-t 10n60g-tq2-t 10n60l-tq2-r 10n60g-tq2-r.pdf
UNISONIC TECHNOLOGIES CO., LTD 10N60 Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 10N60 is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switchin
10n60l-ta3-t 10n60g-ta3-t 10n60l-tf3-t 10n60g-tf3-t 10n60l-tf1-t 10n60g-tf1-t 10n60l-tf2-t 10n60g-tf2-t.pdf
UNISONIC TECHNOLOGIES CO., LTD 10N60 Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 10N60 is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switchin
10n60k.pdf
UNISONIC TECHNOLOGIES CO., LTD 10N60K Preliminary Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 10N60K is an N-channel Power MOSFET using UTC s advanced technology to provide customers a minimum on-state resistance and superior switching performance, etc. The UTC 10N60K is generally applied in high efficient DC to DC converters, PWM motor controls an
fmc10n60e.pdf
FMC10N60E FUJI POWER MOSFET Super FAP-E3 series N-CHANNEL SILICON POWER MOSFET Features Outline Drawings [mm] Equivalent circuit schematic Maintains both low power loss and low noise T-Pack(S) Lower R (on) characteristic DS More controllable switching dv/dt by gate resistance Drain(D) Smaller V ringing waveform during switching GS Narrow band of the gate threshold voltage (3.0 0.5V)
fmi10n60e.pdf
FMI10N60E FUJI POWER MOSFET Super FAP-E3 series N-CHANNEL SILICON POWER MOSFET Features Outline Drawings [mm] Equivalent circuit schematic Maintains both low power loss and low noise T-Pack(L) Lower R (on) characteristic DS More controllable switching dv/dt by gate resistance Drain(D) Smaller V ringing waveform during switching GS Narrow band of the gate threshold voltage (3.0 0.5V)
fmv10n60e.pdf
FMV10N60E FUJI POWER MOSFET Super FAP-E3 series N-CHANNEL SILICON POWER MOSFET Features Outline Drawings [mm] Equivalent circuit schematic Maintains both low power loss and low noise TO-220F(SLS) Lower R (on) characteristic DS More controllable switching dv/dt by gate resistance Drain(D) Smaller V ringing waveform during switching GS Narrow band of the gate threshold voltage (3.0 0.
fmp10n60e.pdf
FMP10N60E FUJI POWER MOSFET Super FAP-E3 series N-CHANNEL SILICON POWER MOSFET Features Outline Drawings [mm] Equivalent circuit schematic Maintains both low power loss and low noise TO-220AB Lower R (on) characteristic DS More controllable switching dv/dt by gate resistance Drain(D) Smaller V ringing waveform during switching GS Narrow band of the gate threshold voltage (3.0 0.5V)
tsm10n60ci tsm10n60cz.pdf
TSM10N60 600V N-Channel MOSFET TO-220 ITO-220 PRODUCT SUMMARY Pin Definition 1. Gate VDS (V) RDS(on)( )(max) ID (A) 2. Drain 3. Source 600 0.75 @ VGS =10V 10 Features Block Diagram Advanced high dense cell design. High Power and Current handing capability. Application Power Supply. Lighting. Ordering Information Part No. Package Packing
cjp10n60 cjpf10n60.pdf
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-220-3L/TO-220F Plastic-Encapsulate MOSFETS CJP10N60,CJPF10N60 N-Channel Power MOSFET TO-220-3L/TO-220F Description The CJP10N60/CJPF10N60 is a high voltage and high current power MOSFET, designed to have characteristics, such as fast switching time, low gate charge, low on-state resistance and have rugged avalanche character
dg10n60.pdf
JiangSu Dongchen Electronics Technology Co.,Ltd DG10N60 N 201603-A N-CHANNEL ENHANCEMENT MODE MOSFET General Description DG10N60 N
cjb10n60.pdf
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD TO-263-2L Plastic-Encapsulate MOSFETS CJB10N60 N-Channel Power MOSFET TO-263-2L Description The CJB10N60 is a high voltage and high current power MOSFET, designed to have characteristics, such as fast switching time, low gate charge, low on-state resistance and have rugged avalanche characteristics. This power MOSFET is usu
kf10n60p-f.pdf
KF10N60P/F SEMICONDUCTOR N CHANNEL MOS FIELD TECHNICAL DATA EFFECT TRANSISTOR General Description KF10N60P A This planar stripe MOSFET has better characteristics, such as fast O C switching time, low on resistance, low gate charge and excellent F avalanche characteristics. It is mainly suitable for active power factor E DIM MILLIMETERS G _ correction and switching mode power su
kf10n60p kf10n60f.pdf
KF10N60P/F SEMICONDUCTOR N CHANNEL MOS FIELD TECHNICAL DATA EFFECT TRANSISTOR General Description KF10N60P A This planar stripe MOSFET has better characteristics, such as fast O C switching time, low on resistance, low gate charge and excellent F avalanche characteristics. It is mainly suitable for active power factor E DIM MILLIMETERS G _ correction and switching mode power su
h10n60.pdf
Spec. No. MOS200902 HI-SINCERITY Issued Date 2009.01.20 Revised Date 2009.08.05 MICROELECTRONICS CORP. Page No. 1/5 H10N60 Series H10N60 Series Tab 3-Lead Plastic TO-220AB N-Channel Power MOSFET (600V,10A) Package Code E Pin 1 Gate Pin 2 & Tab Drain Applications Pin 3 Source 3 2 Switch Mode Power Supply 1 3-Lead TO-220FP) Uninterruptable Po
aow10n60.pdf
AOW10N60/AOWF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOW10N60 & AOWF10N60 have been fabricated using an advanced high voltage MOSFET process that is ID (at VGS=10V) 10A designed to deliver high levels of performance and RDS(ON) (at VGS=10V)
aot10n60.pdf
AOT10N60/AOB10N60/AOTF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT10N60 & AOB10N60 & AOTF10N60 have been fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 10A process that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aow10n60 aowf10n60.pdf
AOW10N60/AOWF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOW10N60 & AOWF10N60 have been fabricated using an advanced high voltage MOSFET process that is ID (at VGS=10V) 10A designed to deliver high levels of performance and RDS(ON) (at VGS=10V)
aob10n60l.pdf
AOT10N60/AOB10N60/AOTF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT10N60 & AOB10N60 & AOTF10N60 have been fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 10A process that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aotf10n60.pdf
AOT10N60/AOB10N60/AOTF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT10N60 & AOB10N60 & AOTF10N60 have been fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 10A process that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aowf10n60.pdf
AOW10N60/AOWF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOW10N60 & AOWF10N60 have been fabricated using an advanced high voltage MOSFET process that is ID (at VGS=10V) 10A designed to deliver high levels of performance and RDS(ON) (at VGS=10V)

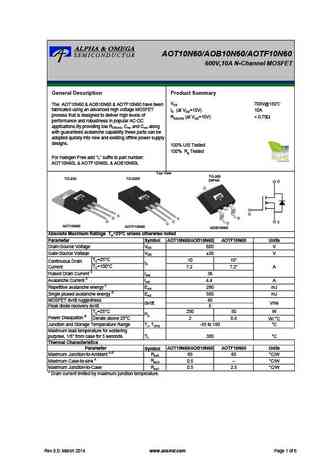

aot10n60 aob10n60 aotf10n60.pdf
AOT10N60/AOB10N60/AOTF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT10N60 & AOB10N60 & AOTF10N60 have been fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 10A process that is designed to deliver high levels of RDS(ON) (at VGS=10V)
aob10n60.pdf
AOT10N60/AOB10N60/AOTF10N60 600V,10A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT10N60 & AOB10N60 & AOTF10N60 have been fabricated using an advanced high voltage MOSFET ID (at VGS=10V) 10A process that is designed to deliver high levels of RDS(ON) (at VGS=10V)
ap10n60w.pdf
AP10N60W RoHS-compliant Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Avalanche Test D BVDSS 600V Fast Switching Characteristic RDS(ON) 0.75 Simple Drive Requirement ID 10A G S Description AP10N60 series are specially designed as main switching devices for universal 90 265VAC off-line AC/DC converter applications. The TO-3P type
afn10n60t220ft afn10n60t220t.pdf
AFN10N60 Alfa-MOS 600V / 10A N-Channel Technology Enhancement Mode MOSFET General Description Features AFN10N60 is an N-channel enhancement mode Power 600V/5A,RDS(ON)=1 (MAX)@VGS=10V MOSFET which is produced using VDMOS technology. The Low gate charge improved planar stripe cell and the improved guard ring Low Crss terminal have been especially tailored to minimize on-state
sss10n60.pdf
Shenzhen Tuofeng Semiconductor Technology Co., Ltd SSS10N60 N N-CHANNEL MOSFET Package MAIN CHARACTERISTICS 10.0 A ID 600 V VDSS Rdson 0.75 @Vgs=10V 34 nC Qg APPLICATIONS High efficiency switch mode power supplies Electronic lamp ballasts UPS
sif10n60c.pdf
Shenzhen SI Semiconductors Co., LTD. Product Specification Shenzhen SI Semiconductors Co., LTD. Product Specification Shenzhen SI Semiconductors Co., LTD. Product Specification Shenzhen SI Semiconductors Co., LTD. Product Specification N- MOS / N-CHANNEL POWER MOSFET SIF10N60C N- MOS / N-CHANNEL POWER MOSFET SIF10N60C
mp10n60eif mp10n60eib mp10n60eis mp10n60eic.pdf
N R N-CHANNEL MOSFET MP10N60EI Package MAIN CHARACTERISTICS ID 10A VDSS 600V Rdson-max 0.66 Vgs=10V Qg-Typ 35nC APPLICATIONS High efficiency switch mode power supplies Electronic lamp ballasts LED based on half bridge LE
jcs10n60f jcs10n60c.pdf
R JCS10N60C JCS10N60C MAIN CHARACTERISTICS Package ID 10 A VDSS 600 V Rdson-max 0.85 Vgs=10V Qg-Typ 51.5 nC APPLICATIONS High efficiency switch mode power supplies Electronic lamp ballasts LED based on half bridge LED power supplies FEATURES
jcs10n60bt jcs10n60st jcs10n60ct jcs10n60ft.pdf
N R N-CHANNEL MOSFET JCS10N60T Package MAIN CHARACTERISTICS ID 9.5 A VDSS 600 V Rdson 0.75 @Vgs=10V Qg 37.2 nC APPLICATIONS High efficiency switch mode power supplies Electronic lamp ballasts UPS based on half bridge UPS
mtn10n60fp.pdf
Spec. No. C406FP Issued Date 2008.12.02 CYStech Electronics Corp. Revised Date 2014.02.10 Page No. 1/ 9 N-Channel Enhancement Mode Power MOSFET BVDSS 600V RDSON(MAX) 0.75 MTN10N60FP ID 10A Description The MTN10N60FP is a N-channel enhancement-mode MOSFET, providing the designer with the best combination of fast switching, ruggedized device design, low on-re
mtn10n60e3.pdf
Spec. No. C406E3 Issued Date 2010.09.27 CYStech Electronics Corp. Revised Date Page No. 1/9 N-Channel Enhancement Mode Power MOSFET BVDSS 600V RDSON(MAX) 0.75 MTN10N60E3 ID 10A Description The MTN10N60E3 is a N-channel enhancement-mode MOSFET, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance an
sdf10n60 sdp10n60 sdp10n60.pdf
SDP10N60 SDF10N60 a S mHop Microelectronics C orp. Ver 1.1 N-Channel Enhancement Mode Field Effect Transistor FEATURES PRODUCT SUMMARY Super high dense cell design for low RDS(ON). RDS(ON) ( ) Typ VDSS ID Rugged and reliable. 600V 10A 0.62 @ VGS=10V TO-220 and TO-220F Package. D G D S G D S G SDP SERIES SDF SERIES TO-220 TO-220F S ORDERING INFORMATION Ordering Code Package M
ftp10n60c fta10n60c.pdf
FTP10N60C FTA10N60C N-Channel MOSFET Pb Lead Free Package and Finish Applications VDSS RDS(ON) (Max.) ID Adaptor TV Main Power 600 V 0.85 10 A SMPS Power Supply LCD Panel Power D Features RoHS Compliant Low ON Resistance Low Gate Charge Peak Current vs Pulse Width Curve G G G Ordering Information DS DS TO-220F TO-220 S PART NUMBE
brcs10n60aa.pdf
BRCS10N60AA Rev.A Sep.-2017 DATA SHEET / Descriptions TO-262 N MOS N-CHANNEL MOSFET in a TO-262 Plastic Package. / Features , , Low gate charge, low crss, fast switching. / Applications DC/DC These devices are well suited for high effici
br10n60.pdf
BR10N60 Rev.C Jul.-2018 DATA SHEET / Descriptions TO-220 N MOS N-CHANNEL MOSFET in a TO-220 Plastic Package. / Features , , Low gate charge, low crss, fast switching. / Applications DC/DC These devices are well suited for high efficiency
brf10n60.pdf
BRF10N60(BRCS10N60FL) Rev.C Feb.-2015 DATA SHEET / Descriptions TO-220FL N MOS N-CHANNEL MOSFET in a TO-220FL Plastic Package. / Features , , Low gate charge, low crss, fast switching. / Applications DC/DC These devices are well suited f
brfl10n60.pdf
BRFL10N60 Rev.E Nov.-2017 DATA SHEET / Descriptions TO-220FL N MOS N-CHANNEL MOSFET in a TO-220FL Plastic Package. / Features , , Low gate charge, low crss, fast switching. / Applications DC/DC These devices are well suited for high effi
10n60a 10n60af 10n60h.pdf
RoHS 10N60 Series RoHS SEMICONDUCTOR Nell High Power Products N-Channel Power MOSFET (10A, 600Volts) DESCRIPTION The Nell 10N60 is a three-terminal silicon D device with current conduction capability of 10A, fast switching speed, low on-state resistance, breakdown voltage rating of 600V, and max. threshold voltage of 4 volts. They are designed for use in applications such G
cs10n60 a8r.pdf
Silicon N-Channel Power MOSFET R CS10N60 A8R General Description VDSS 600 V CS10N60 A8R, the silicon N-channel Enhanced ID 10 A PD(TC=25 ) 130 W VDMOSFETs, is obtained by the self-aligned planar Technology RDS(ON)Typ 0.68 which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various po
cs10n60f a9hd.pdf
Silicon N-Channel Power MOSFET R CS10N60F A9HD VDSS 600 V General Description ID 10 A CS10N60F A9HD, the silicon N-channel Enhanced PD (TC=25 ) 50 W VDMOSFETs, is obtained by the self-aligned planar RDS(ON)Typ 0.6 Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in variou
cs10n60 a8hd.pdf
Silicon N-Channel Power MOSFET R CS10N60 A8HD VDSS 600 V General Description ID 10 A CS10N60 A8HD, the silicon N-channel Enhanced PD (TC=25 ) 125 W VDMOSFETs, is obtained by the self-aligned planar RDS(ON)Typ 0.6 Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various
cs10n60f a9r.pdf
Silicon N-Channel Power MOSFET R CS10N60F A9R General Description VDSS 600 V CS10N60F A9R, the silicon N-channel Enhanced ID 10 A PD(TC=25 ) 40 W VDMOSFETs, is obtained by the self-aligned planar Technology RDS(ON)Typ 0.68 which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various p
cm10n60f.pdf
R CM10N60F www.jdsemi.cn ShenZhen Jingdao Electronic Co.,Ltd. POWER MOSFET 600V N-Channel VDMOS RoHS 1 LD E 2 1
cm10n60az.pdf
R CM10N60AZ www.jdsemi.cn ShenZhen Jingdao Electronic Co.,Ltd. POWER MOSFET 600V N-Channel VDMOS RoHS 1 LD E 2
ftk10n60p f dd.pdf
SEMICONDUCTOR FTK10N60P/F/DD TECHNICAL DATA 10 Amps, 600 Volts N-CHANNEL MOSFET DESCRIPTION These N-Channel enhancement mode power field effect P Transistors are produced using planar stripe, DMOS technology. 1 This advanced technology has been especially tailored to minimize on - state resistance , provide superior TO-220 switching performance,and Withstand high energy pulse
f10n60.pdf
F10N60 10A 600V N-channel Enhancement Mode Power MOSFET 1 Description These N-channel enhanced vdmosfets, is obtained by the self-aligned V DSS = 600V planar technology which reduce the conduction loss, improve switching I = 10.0A D performance and enhance the avalanche energy. Which accords with the RoHS standard. TO-220F provides insulation voltage rated at 2000V R DS(on) TYP)
kx10n60f.pdf
DIP Type MOSFET N-Channel MOSFET KX10N60F Unit mm TO-220F 0.20 0.20 0.20 2.54 0.20 0.70 Features VDS (V) = 600V ID = 10 A (VGS = 10V) 0.20 2.76 RDS(ON) 730m (VGS = 10V) 1 2 3 Qg(typ.)= 29.5nC 1.47max 0.20 0.50 D 0.20 0.80 2.54typ 2.54typ G S Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Drain-Sou
svf10n60cafj.pdf
SVF10N60CAFJ 10A 600V N 2 SVF10N60CAFJ N MOS F-CellTM VDMOS 1 3 1. 2.
svf10n60t svf10n60f svf10n60s svf10n60k.pdf
SVF10N60T/F/S/K 10A 600V N 2 SVF10N60T/F/S/K N MOS 1 F-CellTM VDMOS 3 TO-263-2L 1
mdf10n60bth.pdf
MDF10N60B N-Channel MOSFET 600V, 10A, 0.7 General Description Features These N-channel MOSFET are produced using advanced VDS = 600V MagnaChip s MOSFET Technology, which provides low on- ID = 10A @ VGS = 10V state resistance, high switching performance and excellent RDS(ON) 0.7 @ VGS = 10V quality. Applications These devices are suitable device for SMPS, high Speed
mdfs10n60dth.pdf
MDFS10N60D N-Channel MOSFET 600V, 10A, 0.75 General Description Features These N-channel MOSFET are produced using advanced VDS = 600V MagnaChip s MOSFET Technology, which provides low on- ID = 10A @ VGS = 10V state resistance, high switching performance and excellent RDS(ON) 0.75 @ VGS = 10V quality. Applications These devices are suitable device for SMPS, high Spee
mdf10n60gth mdp10n60gth.pdf
MDP10N60G/MDF10N60G N-Channel MOSFET 600V, 10A, 0.7 General Description Features These N-channel MOSFET are produced using advanced V = 600V DS MagnaChip s MOSFET Technology, which provides low on- VDS = 660V @ Tjmax state resistance, high switching performance and excellent ID = 10A @ VGS = 10V quality. RDS(ON) 0.7 @ VGS = 10V Applications These devices are suitabl
msf10n60.pdf
MSF10N60 N-Channel 600V MOSFET Description The MSF10N60 is a N-channel enhancement-mode MOSFET , providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The ITO-220AB package is universally preferred for all commercial-industrial applications Features Low On Resistance Simple Drive Requ
ms10n60.pdf
MS10N60 600V N-Channel MOSFET General Description The MS13N50 is a N-channel enhancement-mode MOSFET, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications Features Low On Resistance Simple Drive Re
wff10n60.pdf
WFF10N60 WFF10N60 WFF10N60 WFF10N60 Silicon N-Channel MOSFET Silicon N-Channel MOSFET Silicon N-Channel MOSFET Silicon N-Channel MOSFET Features 10A,600V,R (Max 0.75 )@V =10V DS(on) GS Ultra-low Gate Charge(Typical 34nC) Fast Switching Capability 100%Avalanche Tested Isolation Voltage(V =4000V AC) ISO Improved dv/dt capability General Description This
wfp10n60.pdf
WFP10N60 WFP10N60 WFP10N60 WFP10N60 Silicon N-Channel MOSFET Silicon N-Channel MOSFET Silicon N-Channel MOSFET Silicon N-Channel MOSFET Features 10A,600V,R (Max 0.75 )@V =10V DS(on) GS Ultra-low Gate Charge(Typical 34nC) Fast Switching Capability 100%Avalanche Tested Isolation Voltage(V =4000V AC) ISO Improved dv/dt capability General Description This
bl10n60-p bl10n60-a.pdf
BL10N60 Power MOSFET Power MOSFET Power MOSFET Power MOSFET 1 Description BL10N60, the silicon N-channel Enhanced MOSFETs, is obtained by advanced MOSFET technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor is suitable device for SMPS, high speed switching and general purpose application
bl10n60a-p bl10n60a-a.pdf
BL10N60A Power MOSFET Power MOSFET Power MOSFET Power MOSFET 1 Description BL10N60A, the silicon N-channel Enhanced MOSFETs, is obtained by advanced MOSFET technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor is suitable device for SMPS, high speed switching and general purpose applicati
t10n60gp.pdf
CHENMKO ENTERPRISE CO.,LTD T10N60GP SURFACE MOUNT NPN Silicon Transistor VOLTAGE 60Volts CURRENT 10 Ampere APPLICATION * General purpose applications. * Other switching applications. TO-220 FEATURE * Package. (TO-220) * DC Current Gain Specified to Ic=10A ( ) .187 4.7 ( ) .148 3.8 ( ) .153 3.9 * High Current Gain-Bandwidth Product fT=2MHz (Min.) .413 10.5 ( ) .108 ( )
cs10n60fa9hd.pdf
CS10N60FA9HD 600V Silicon N-Channel Power MOSFET Features Outline Fast switching. TO-220F ESD improved capability. 0.189(4.80) 0.173(4.40) Low gate charge. 0.409(10.40) 0.378(9.60) 0.114(2.90) Low reverse transfer capacitances. 0.098(2.50) 100% single pulse avalanche energy test. 0.638(16.20) 0.606(15.40) Marking code Mechanical data G D S E
fhp10n60a fhf10n60a.pdf
N N-CHANNEL MOSFET FHP10N60A/ FHF10N60A MAIN CHARACTERISTICS FEATURES Low gate charge ID 10A Crss ( 23pF) Low Crss (typical 23pF ) VDSS 600V Fast switching Rdson-typ 0.68 @Vgs=10V 100% 100% avalanche tested Qg-typ 45nC dv/dt Improved dv/dt capability RoHS RoHS product APPLICATION High efficiency switch mode power su
jfpc10n60c jffm10n60c.pdf
JFPC10N60C JFFM10N60C 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using advanced - 10A, 600V, RDS(on)typ. = 0.68 @VGS = 10 V planar stripe DMOS technology. This advanced - Low gate charge technology has been especially tailored to minimize - High ruggedness on-state resistance, provide superior switching - Fast switching performanc
jfpc10n60ci.pdf
JFPC10N60CI 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using advanced - 10A, 600V, RDS(on)typ. = 0.8 @VGS = 10 V planar stripe DMOS technology. This advanced - Low gate charge technology has been especially tailored to minimize - High ruggedness on-state resistance, provide superior switching - Fast switching performance, and withst
cs10n60f.pdf
BRF10N60(CS10N60F) N-CHANNEL MOSFET/N MOS DC/DC Purpose These devices are well suited for high efficiency switching DC/DC converters and switch mode power supplies. , , Features Low gate charge, low crss, fast switching. /Absolute maximum ratings(Ta=25
slp10n60c slf10n60c.pdf
SLP10N60C / SLF10N60C 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using Maple semi s - 10A, 600V, RDS(on)typ. = 0.62 @VGS = 10 V advanced planar stripe DMOS technology. - Low gate charge ( typical 36.5nC) This advanced technology has been especially tailored - High ruggedness to minimize on-state resistance, provide superior switching - Fast switchi
psa10n60c.pdf
PSA10N60C 600V N-ch Planar MOSFET General Features BVDSS RDS(ON),typ. ID RoHS Compliant 600V 0.65 10A RDS(ON),typ.=0.65 @VGS=10V Low Gate Charge Minimize Switching Loss Fast Recovery Body Diode Applications Adaptor Charger G D SMPS Standby Power S TO-220F Ordering Information Part Number Package Brand Package No to Scale PSA1
swf10n60d.pdf
SW10N60D N-channel Enhanced mode TO-220F MOSFET TO-220F Features BVDSS 600V ID 10A High ruggedness Low RDS(ON) (Typ 0.9 )@VGS=10V RDS(ON) 0.9 Low Gate Charge (Typ 35nC) 2 Improved dv/dt Capability 1 100% Avalanche Tested 2 3 Application UPS Inverter TV-POWER 1 3 1. Gate 2. Drain 3. Source General Description This power
srm10n60.pdf
Datasheet 10A, 600V, N-Channel Power MOSFET SRM10N60 General Description Symbol The Sanrise SRM10N60 is a high voltage power MOSFET, which has better characteristics, such as fast switching time, low gate charge, low on- state resistance. Sanrise SRM10N60 break down voltage rating is 600V and it has a high rugged avalanche characteristics. This power MOSFET is usually used at hi
hfw10n60s.pdf
May 2010 BVDSS = 600 V RDS(on) typ HFW10N60S ID = 9.5 A 600V N-Channel MOSFET D2-PAK FEATURES Originative New Design Superior Avalanche Rugged Technology 1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 29 nC (Typ.) Extended Safe Operating Area Lower RDS(ON)
hfp10n60u.pdf
Feb 2013 BVDSS = 600 V RDS(on) typ = 0.67 HFP10N60U ID = 9.5 A 600V N-Channel MOSFET TO-220 FEATURES Originative New Design Superior Avalanche Rugged Technology 1 2 3 Robust Gate Oxide Technology 1.Gate 2. Drain 3. Source Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 29 nC (Typ.) Extended Safe Operating Area Lo
hfp10n60s.pdf
Nov 2007 BVDSS = 600 V RDS(on) typ HFP10N60S ID = 9.5 A 600V N-Channel MOSFET TO-220 FEATURES Originative New Design 1 2 3 Superior Avalanche Rugged Technology 1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 29 nC (Typ.) Extended Safe Operating Area Lower RDS(
hfs10n60u.pdf
Oct 2013 BVDSS = 600 V RDS(on) typ = 0.67 HFS10N60U ID = 9.5 A 600V N-Channel MOSFET TO-220F FEATURES Originative New Design Superior Avalanche Rugged Technology 1 2 3 Robust Gate Oxide Technology 1.Gate 2. Drain 3. Source Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 29 nC (Typ.) Extended Safe Operating Area L
hfs10n60s.pdf
Nov 2007 BVDSS = 600 V RDS(on) typ = 0.67 HFS10N60S ID = 9.5 A 600V N-Channel MOSFET TO-220F FEATURES 1 Originative New Design 2 3 Superior Avalanche Rugged Technology 1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 29 nC (Typ.) Unrivalled Gate Charge 29 nC (Typ )
sff10n60.pdf
SemiWell Semiconductor SFF10N60 N-Channel MOSFET Features RDS(ON) Max 0.75 ohm at VGS = 10V Gate Charge ( Typical 48 nC) Improve dv/dt capability, Fast switching 100% avalanche Tested General Description This MOSFET is produced using advanced planar strip DMOS technology. This latest technology has been especially designed to minimize on-state resistance h
tmp10n60a tmpf10n60a.pdf
TMP10N60A(G)/TMPF10N60A(G) N-channel MOSFET Features BVDSS ID RDS(on) Low gate charge 600V 10A
tmp10n60 tmpf10n60.pdf
TMP10N60/TMPF10N60 TMP10N60G/TMPF10N60G VDSS = 660 V @Tjmax Features ID = 10A Low gate charge RDS(on) = 0.75 W(max) @ VGS= 10 V 100% avalanche tested Improved dv/dt capability RoHS compliant Halogen free package JEDEC Qualification D G S Device Package Marking Remark TMP10N60 / TMPF10N60 TO-220 / TO-220F TMP10N60 / TMPF10N60 RoHS TMP10N60G / TMPF10N60G
tsp10n60m tsf10n60m.pdf
TSP10N60M/TSF10N60M 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using Truesemi s 10.0A,600V,Max.RDS(on)=0.8 @ VGS =10V advanced planar stripe DMOS technology. This advanced technology has been especially tailored to Low gate charge(typical 48nC) minimize on-state resistance, provide superior switching High ruggedness performance,
qm10n60f.pdf
QM10N60F 1 2011-11-15 - 1 - N-Ch 600V Fast Switching MOSFETs General Description Product Summery The QM10N60F is the highest performance N-ch MOSFETs with specialized high voltage BVDSS RDSON ID technology, which provide excellent RDSON and 600V 0.7 12A gate charge for most of the SPS, Charger ,Adapter and lighting applications . Applications The QM10N60F me
wmm10n60c4 wml10n60c4 wmo10n60c4 wmn10n60c4 wmp10n60c4 wmk10n60c4.pdf
WMM10N60C4, WML10N6 WM C4 60C4, MO10N60C WMN10N60C4, WMP10N6 WM C4 60C4, MK10N60C 600V 0.52 S T V Super Junction Power MOSFET Descrip ption WMOSTM C4 is Wa 4th generation super ayon s n junction MOSFET fa that is utilizing charge M amily S balance te or extremely esistance echnology fo y low on-re D S D G G G S D G and low ga charge performanc WMOSTM
cs10n60a8hd.pdf
Silicon N-Channel Power MOSFET R CS10N60 A8HD VDSS 600 V General Description ID 10 A CS10N60 A8HD, the silicon N-channel Enhanced PD (TC=25 ) 125 W VDMOSFETs, is obtained by the self-aligned planar RDS(ON)Typ 0.6 Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various
cs10n60fa9hd.pdf
Silicon N-Channel Power MOSFET R CS10N60F A9HD VDSS 600 V General Description ID 10 A CS10N60F A9HD, the silicon N-channel Enhanced PD (TC=25 ) 50 W VDMOSFETs, is obtained by the self-aligned planar RDS(ON)Typ 0.6 Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various
cs10n60fa9r.pdf
Silicon N-Channel Power MOSFET R CS10N60F A9R General Description VDSS 600 V CS10N60F A9R, the silicon N-channel Enhanced ID 10 A PD(TC=25 ) 40 W VDMOSFETs, is obtained by the self-aligned planar Technology RDS(ON)Typ 0.68 which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various p
cs10n60f cs10n60p.pdf
nvert Suzhou Convert Semiconductor Co ., Ltd. CS10N60F,CS10N60P 600V N-Channel MOSFET FEATURES Fast switching 100% avalanche tested Improved dv/dt capability APPLICATIONS Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC) Device Marking and Package Information Device Package Marking CS10N60F TO-220F CS10N60F CS
cs10n60f cs10n60p cs1060k.pdf
nvert Suzhou Convert Semiconductor Co ., Ltd. CS10N60F,CS10N60P,CS1060K 600V N-Channel MOSFET FEATURES Fast switching 100% avalanche tested Improved dv/dt capability APPLICATIONS Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC) Device Marking and Package Information Device Package Marking CS10N60F TO-220F CS10
fir10n60fg.pdf
FIR10N60FG Silicon N-Channel Power MOSFET PIN Connection TO-220F VDSS 600 V ID 10 A PD (TC=25 ) 125 W RDS(ON) 0.63 Features G D S Fast Switching ESD Improved Capability D Low Gate Charge (Typical Data 60nC) Low Reverse transfer capacitances(Typical 28pF) G 100% Single Pulse avalanche energy Test S Applications Marking Diagram Power switch circuit of adap
smt10n60.pdf
SMT10N60 600V N-Channnel MOSFET Features 10.0A, 600V, R =0.7 @V =10V DS(on(Typ)) GS Low Gate Charge Low C rss 100% Avalanche Tested Fast Switching Improved dv/dt Capability Application High Frequency Switching Mode Power Supply Active Power Factor Correction Absolute Maximum Ratings(Tc=25 C unless otherwise noted) Symbol Parameter Val
smf10n60.pdf
SMF10N60 600V N-Channnel MOSFET Features 10.0A, 600V, R =0.75 @V =10V DS(on)(Typ) GS Low Gate Charge Low C rss 100% Avalanche Tested Fast Switching Improved dv/dt Capability Application High Frequency Switching Mode Power Supply Active Power Factor Correction Absolute Maximum Ratings(Tc=25 C unless otherwise noted) Symbol Parameter Va
hf10n60.pdf
Nov 2005 BVDSS = 600 V RDS(on) typ = 0.64 HF10N60 ID = 9.5 A 600V N-Channel MOSFET TO-220F FEATURES 1 Originative New Design 2 3 Superior Avalanche Rugged Technology 1.Gate 2. Drain 3. Source Robust Gate Oxide Technology Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge 44 nC (Typ.) Extended Safe Operat
jmpc10n60bj.pdf
JMPC10N60BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 600V, 10A Load Switch RDS(ON)
jmpf10n60bj.pdf
JMPF10N60BJ Description JMP N-channel Enhancement Mode Power MOSFET Features Applications 600V, 10A Load Switch RDS(ON)
lnd10n60 lnc10n60 lne10n60 lnf10n60.pdf
LND10N60/LNC10N60/LNE10N60/LNF10N60 Lonten N-channel 600V, 10A Power MOSFET Description Product Summary The Power MOSFET is fabricated using the VDSS 600V advanced planer VDMOS technology. The ID 10A resulting device has low conduction resistance, RDS(on),max 0.9 superior switching performance and high avalance Qg,typ 31.4 nC energy. Features Low RDS(on) Low gate
sss10n60.pdf
SHENZHEN TUOFENG SEMICONDUCTOR TECHNOLOGY CO. LTD N-CHANNEL MOSFET SSS10N60 Package MAIN CHARACTERISTICS 10.0 A ID 600 V VDSS 0.75 Rdson @Vgs=10V 34 nC Qg APPLICATIONS High efficiency switch mode power supplies Electronic lamp ballasts UPS based on half bridge UPS
fdpf10n60nz.pdf
FDPF10N60NZ www.VBsemi.tw N-Channel 650V (D-S) Power MOSFET FEATURES PRODUCT SUMMARY VDS (V) at TJ max. 650 Low figure-of-merit (FOM) Ron x Qg Low input capacitance (Ciss) RDS(on) max. at 25 C ( ) VGS = 10 V 0.68 43 Reduced switching and conduction losses Qg max. (nC) Ultra low gate charge (Qg) 5 Qgs (nC) Avalanche energy rated (UIS) 22 Qgd (nC) Configur
dgp10n60ctl.pdf
RoHS DGP10N60CTL COMPLIANT IGBT Descrete V 600 V CE I 10 A C V I = A 1.65 V CE(SAT) C 10 Applications Soft switchingapplications Circuit Airconditioning Motor driveinverter Features High speed smooth switching device for hard & soft switching Maximum junction temperature 175 Positive temperature coefficient High ruggedness,
tma10n60h.pdf
TMA10N60H Wuxi Unigroup Microelectronics Company 600V N-Channel MOSFET FEATURES Fast switching 100% avalanche tested Improved dv/dt capability APPLICATIONS Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC) Device Marking and Package Information Device Package Marking TMA10N60H TO-220F A10N60H Abs
hms10n60k hms10n60i.pdf
HMS10N60K/HMS10N60I HMS10N60K/HMS10N60I 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using H&M Semi s - 10A, 600V, RDS(on) typ. = 0.42 @VGS = 10 V Advanced Super-Junction technology. - Low gate charge ( typical 35nC) This advanced technology has been especially tailored - High ruggedness to minimize conduction loss, provide superior switching - Fast
hm10n60 hm10n60f.pdf
10N60 / 10N60F 600V N-Channel MOSFET General Description Features This Power MOSFET is produced using SL semi s 10.0A, 600V, RDS(on) = 0.750 @VGS = 10 V advanced planar stripe DMOS technology. Low gate charge ( typical 48nC) This advanced technology has been especially tailored to High ruggedness minimize on-state resistance, provide superior switching Fast swit
h10n60p h10n60f.pdf
10N60 Series N-Channel MOSFET 9.5A, 600V, N H FQP10N60C H10N60P P TO-220P HAOHAI 50Pcs 1000Pcs 5000Pcs 10N60 FQPF10N60C H10N60F F TO-220F 10N60 Series Pin Assignment Features ID=9.5A Originative New De
aow10n60.pdf
isc N-Channel MOSFET Transistor AOW10N60 FEATURES Drain Current I =10A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R = 0.75 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpos
aot10n60.pdf
isc N-Channel MOSFET Transistor AOT10N60 FEATURES Drain Current I =10A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R = 0.75 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpos
mdp10n60gth.pdf
INCHANGE Semiconductor isc N-Channel MOSFET Transistor MDP10N60GTH FEATURES With TO-220F packaging High speed switching Very high commutation ruggedness Easy to use 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operationz APPLICATIONS PFC stages LCD & PDP TV Power supply Switching applications ABSOLUTE MAX
mdf10n60gth.pdf
INCHANGE Semiconductor isc N-Channel MOSFET Transistor MDF10N60GTH FEATURES With TO-220 packaging Low switching loss Ultra low gate charge Easy to use 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operationz APPLICATIONS Switching applications AC-DC converters LED lighting Uninterruptible power supply ABSO
aotf10n60.pdf
isc N-Channel MOSFET Transistor AOTF10N60 FEATURES Drain Current I =10A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R = 0.75 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpo
dmg10n60sct.pdf
isc N-Channel MOSFET Transistor DMG10N60SCT FEATURES Drain Current I = 12A@ T =25 D C Drain Source Voltage- V = 600V(Min) DSS Static Drain-Source On-Resistance R = 750m (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general p
aob10n60.pdf
isc N-Channel MOSFET Transistor AOB10N60 FEATURES Drain Current I =10A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R = 0.75 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpos
Otros transistores... 5N60, 6N60, 6N60Z, 7N60A, 7N60, 7N60Z, 7N60K, 8N60, 3401, 10N60K, 12N60, 15N60, 18N60, 20N60, 22N60, UF601, UK2996
Parámetros del MOSFET. Cómo se afectan entre sí.
History: STS3405 | FDI045N10AF102
🌐 : EN ES РУ
Liste
Recientemente añadidas las descripciónes de los transistores:
MOSFET: CEZC2P07 | CEZ2R05 | CEU3133 | CES2361 | CES2312A | CEP100N10L | CEM3425 | CEM3139 | CEM3133 | CEM3115 | CED3133 | CEC3257 | CEC2533 | CEB100N10L | BC3134KT | BC3134K
Popular searches
c3198 | 2sc793 | 2sd313 replacement | 2n4249 | a1013 transistor | 2sc2705 | bc239 | 2sc3264
