10N60 Spec and Replacement
The 10N60 is an N-channel MOSFET designed for high-voltage, high-efficiency switching applications. It typically supports up to 600V drain-source voltage and around 10A continuous drain current, making it suitable for power supplies, LED drivers, motor-control systems. Featuring low Rds(on) and fast switching speed, the 10N60 minimizes conduction and switching losses, improving thermal performance.
Type Designator: 10N60
Type of Transistor: MOSFET
Type of Control Channel: N
-Channel
Pd ⓘ
- Maximum Power Dissipation: 156
W
|Vds|ⓘ - Maximum Drain-Source Voltage: 600
V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 30
V
|Id| ⓘ - Maximum Drain Current: 10
A
Tj ⓘ - Maximum Junction Temperature: 150
°C
tr ⓘ - Rise Time: 69
nS
Cossⓘ -
Output Capacitance: 166
pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.72
Ohm
Package: TO-220
TO-220F
TO-220F1
TO-220F2
TO-262
TO-263
10N60 Transistor Equivalent Substitute - MOSFET Cross-Reference Search
10N60 Specs
10n60.pdf

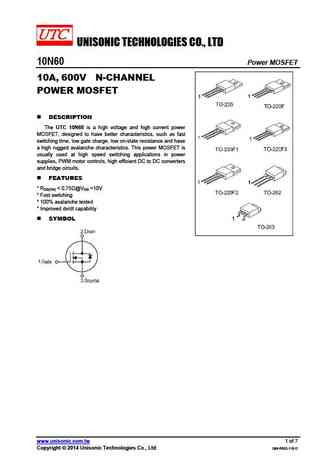

UNISONIC TECHNOLOGIES CO., LTD 10N60 Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 10N60 is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switchin... See More ⇒
