AOW15S60 MOSFET Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: AOW15S60
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 208 W
|Vds|ⓘ - Voltaje máximo drenador-fuente: 600 V
|Vgs|ⓘ - Voltaje máximo fuente-puerta: 30 V
|Id|ⓘ - Corriente continua de drenaje: 15 A
Tjⓘ - Temperatura máxima de unión: 150 °C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 22 nS
Cossⓘ - Capacitancia de salida: 58 pF
RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.29 Ohm
Encapsulados: TO-262
Búsqueda de reemplazo de AOW15S60 MOSFET
- Selecciónⓘ de transistores por parámetros
AOW15S60 datasheet
aow15s60.pdf
AOW15S60/AOWF15S60 TM 600V 15A MOS Power Transistor General Description Product Summary VDS @ Tj,max 700V The AOW15S60 & AOWF15S60 have been fabricated using the advanced MOSTM high voltage process that is IDM 63A designed to deliver high levels of performance and RDS(ON),max 0.29 robustness in switching applications. Qg,typ 16nC By providing low RDS(on), Qg an
aow15s60.pdf
isc N-Channel MOSFET Transistor AOW15S60 FEATURES Drain Current I = 15A@ T =25 D C Drain Source Voltage- V = 600V(Min) DSS Static Drain-Source On-Resistance R = 0.78 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purp

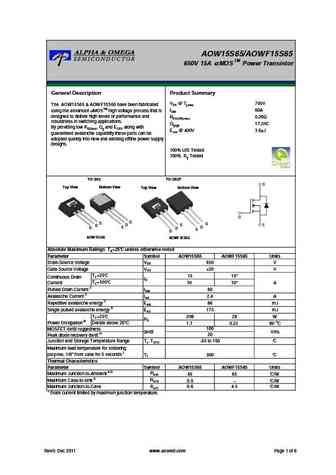

aow15s65 aowf15s65.pdf
AOW15S65/AOWF15S65 TM 650V 15A MOS Power Transistor General Description Product Summary VDS @ Tj,max 750V The AOW15S65 & AOWF15S65 have been fabricated using the advanced MOSTM high voltage process that is IDM 60A designed to deliver high levels of performance and RDS(ON),max 0.29 robustness in switching applications. Qg,typ 17.2nC By providing low RDS(on), Qg
aow15s65.pdf
AOW15S65/AOWF15S65 TM 650V 15A MOS Power Transistor General Description Product Summary VDS @ Tj,max 750V The AOW15S65 & AOWF15S65 have been fabricated using the advanced MOSTM high voltage process that is IDM 60A designed to deliver high levels of performance and RDS(ON),max 0.29 robustness in switching applications. Qg,typ 17.2nC By providing low RDS(on), Qg
Otros transistores... AOW10T60P , AOW11N60 , AOW11S60 , AOW11S65 , AOW12N50 , AOW12N60 , AOW12N65 , AOW14N50 , IRF3205 , AOW15S65 , AOW20C60 , AOW20S60 , AOW2500 , AOW25S65 , AOW284 , AOW2918 , AOW298 .
