IRFP260 Todos los transistores



IRFP260 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: IRFP260

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Disipación total del dispositivo (Pd): 280 W

Tensión drenaje-fuente |Vds|: 200 V

Tensión compuerta-fuente |Vgs|: 20 V

Corriente continua de drenaje |Id|: 46 A

Temperatura operativa máxima (Tj): 150 °C

CARACTERÍSTICAS ELÉCTRICAS

Tensión umbral compuerta-fuente |Vgs(th)|: 4 V

Carga de compuerta (Qg): 230(max) nC

Tiempo de elevación (tr): 120 nS

Conductancia de drenaje-sustrato (Cd): 1200 pF

Resistencia drenaje-fuente RDS(on): 0.055 Ohm

Empaquetado / Estuche: TO247AC

Búsqueda de reemplazo de MOSFET IRFP260



IRFP260 Datasheet (PDF)

0.1. auirfp2602.pdf Size:207K _international_rectifier

IRFP260
IRFP260

PD - 96420AUTOMOTIVE GRADEAUIRFP2602HEXFET Power MOSFETFeatures Advanced Process TechnologyDV(BR)DSS 24V Low On-Resistance 175C Operating Temperature RDS(on) typ. 1.25m Fast Switching max. 1.6m Repetitive Avalanche Allowed up to Tjmax G Lead-Free, RoHS CompliantID (Silicon Limited) 380A Automotive Qualified *SID (Package Limited) 180A Description

0.2. irfp260pbf.pdf Size:1340K _international_rectifier

IRFP260
IRFP260

PD- 95915IRFP260PbF Lead-Free9/27/04Document Number: 91215 www.vishay.com1IRFP260PbFDocument Number: 91215 www.vishay.com2IRFP260PbFDocument Number: 91215 www.vishay.com3IRFP260PbFDocument Number: 91215 www.vishay.com4IRFP260PbFDocument Number: 91215 www.vishay.com5IRFP260PbFDocument Number: 91215 www.vishay.com6IRFP260PbFPeak Diode Recovery

 0.3. irfp260.pdf Size:168K _international_rectifier

IRFP260
IRFP260

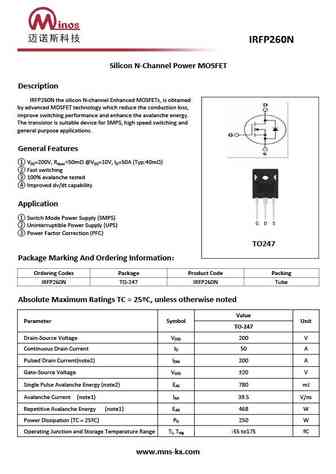

0.4. irfp260n.pdf Size:122K _international_rectifier

IRFP260
IRFP260

PD - 94004AIRFP260NHEXFET Power MOSFET Advanced Process TechnologyDVDSS = 200V Dynamic dv/dt Rating 175C Operating Temperature Fast SwitchingRDS(on) = 0.04G Fully Avalanche Rated Ease of ParallelingID = 50AS Simple Drive RequirementsDescriptionFifth Generation HEXFETs from International Rectifier utilize advanced processingtechniques to achieve extreme

 0.5. irfp260npbf.pdf Size:180K _international_rectifier

IRFP260
IRFP260

PD - 95010AIRFP260NPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Dynamic dv/dt RatingVDSS = 200Vl 175C Operating Temperaturel Fast SwitchingRDS(on) = 0.04l Fully Avalanche RatedGl Ease of ParallelingID = 50Al Simple Drive RequirementsSl Lead-FreeDescriptionFifth Generation HEXFETs from International Rectifier utilizeadvanced processing techni

0.6. irfp260mpbf.pdf Size:634K _international_rectifier

IRFP260
IRFP260

PD - 96293IRFP260MPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Dynamic dv/dt RatingVDSS = 200Vl 175C Operating Temperaturel Fast SwitchingRDS(on) = 0.04l Fully Avalanche RatedGl Ease of ParallelingID = 50Al Simple Drive RequirementsSl Lead-FreeDescriptionFifth Generation HEXFETs from International Rectifier utilize advanced processingtechniq

0.7. irfp260 sihfp260.pdf Size:1762K _vishay

IRFP260
IRFP260

IRFP260, SiHFP260Vishay SiliconixPower MOSFETFEATURESPRODUCT SUMMARY Dynamic dV/dt RatingVDS (V) 200Available Repetitive Avalanche RatedRDS(on) ()VGS = 10 V 0.055RoHS* Isolated Central Mounting HoleQg (Max.) (nC) 230COMPLIANT Fast SwitchingQgs (nC) 42 Ease of ParallelingQgd (nC) 110 Simple Drive RequirementsConfiguration Single Comp

0.8. irfp260npbf.pdf Size:180K _infineon

IRFP260
IRFP260

PD - 95010AIRFP260NPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Dynamic dv/dt RatingVDSS = 200Vl 175C Operating Temperaturel Fast SwitchingRDS(on) = 0.04l Fully Avalanche RatedGl Ease of ParallelingID = 50Al Simple Drive RequirementsSl Lead-FreeDescriptionFifth Generation HEXFETs from International Rectifier utilizeadvanced processing techni

0.9. irfp260mpbf.pdf Size:634K _infineon

IRFP260
IRFP260

PD - 96293IRFP260MPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Dynamic dv/dt RatingVDSS = 200Vl 175C Operating Temperaturel Fast SwitchingRDS(on) = 0.04l Fully Avalanche RatedGl Ease of ParallelingID = 50Al Simple Drive RequirementsSl Lead-FreeDescriptionFifth Generation HEXFETs from International Rectifier utilize advanced processingtechniq

0.10. irfp260.pdf Size:399K _inchange_semiconductor

IRFP260
IRFP260

iscN-Channel MOSFET Transistor IRFP260FEATURESLow drain-source on-resistance:RDS(ON) 55m @V =10VGSEnhancement mode:Vth = 2.0 to 4.0V (VDS = 10 V, ID=0.25mA)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONSwitching Voltage RegulatorsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER

0.11. irfp260m.pdf Size:247K _inchange_semiconductor

IRFP260
IRFP260

INCHANGE Semiconductorisc N-Channel MOSFET Transistor IRFP260MIIRFP260MFEATURESStatic drain-source on-resistance:RDS(on)40mEnhancement mode:100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONHigh Speed Power SwitchingABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Dr

0.12. irfp260n.pdf Size:242K _inchange_semiconductor

IRFP260
IRFP260

INCHANGE Semiconductorisc N-Channel MOSFET Transistor IRFP260NIIRFP260NFEATURESStatic drain-source on-resistance:RDS(on)40mEnhancement mode:100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONFast switchingFully Avalanche RatedABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VAL

0.13. irfp260npbf.pdf Size:212K _inchange_semiconductor

IRFP260
IRFP260

INCHANGE SemiconductorIsc N-Channel MOSFET Transistor IRFP260NPBFFEATURESWith TO-247 packagingEase of parallelingHigh speed switchingHard switched and high frequency circuits100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMB

Otros transistores... IRFP250 , IRFP250A , IRFP251 , IRFP252 , IRFP253 , IRFP254 , IRFP254A , IRFP255 , BUZ11 , IRFP264 , IRFP330 , IRFP331 , IRFP332 , IRFP333 , IRFP340 , IRFP340A , IRFP341 .
