QM7020P MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: QM7020P
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 260 W
Voltaje máximo drenador - fuente |Vds|: 75 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 195 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 2.5 V
Carga de la puerta (Qg): 487 nC
Tiempo de subida (tr): 10.4 nS
Conductancia de drenaje-sustrato (Cd): 1387 pF
Resistencia entre drenaje y fuente RDS(on): 0.0038 Ohm
Paquete / Cubierta: TO-220
Búsqueda de reemplazo de MOSFET QM7020P

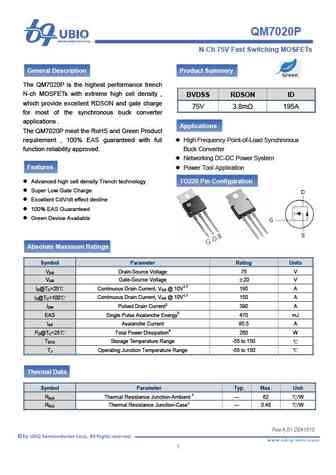

QM7020P Datasheet (PDF)
qm7020p.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
QM7020P N-Ch 75V Fast Switching MOSFETsGeneral Description Product SummeryThe QM7020P is the highest performance trench N-ch MOSFETs with extreme high cell density , BVDSS RDSON ID which provide excellent RDSON and gate charge 75V 3.8m 195Afor most of the synchronous buck converter applications . Applications The QM7020P meet the RoHS and Green Product requirement , 1
