M7002TTD03 Todos los transistores



M7002TTD03 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: M7002TTD03
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 0.15 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 60 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 0.115 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   Cossⓘ - Capacitancia de salida: 25 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 7.2 Ohm
   Paquete / Cubierta: WBFBP-03A

 Búsqueda de reemplazo de MOSFET M7002TTD03

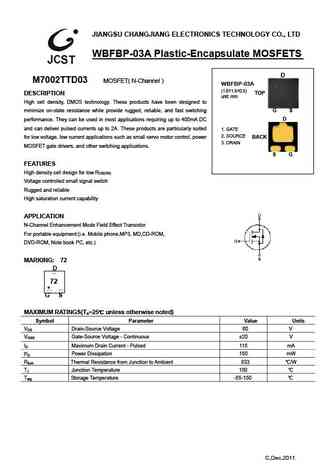

M7002TTD03 Datasheet (PDF)

 ..1. Size:252K  jiangsu
m7002ttd03.pdf

M7002TTD03
M7002TTD03

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD WBFBP-03A Plastic-Encapsulate MOSFETS D M7002TTD03 MOSFET( N-Channel ) WBFBP-03A (1.61.60.5) TOP DESCRIPTION unit: mm High cell density, DMOS technology. These products have been designed to G S minimize on-state resistance while provide rugged, reliable, and fast switching D performance. They can be used i
