N0603N Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: N0603N

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 156 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 60 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 100 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 12 nS

Cossⓘ - Capacitancia de salida: 560 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.0046 Ohm

Encapsulados: TO-262

 Búsqueda de reemplazo de N0603N MOSFET

- Selecciónⓘ de transistores por parámetros



N0603N datasheet

 ..1. Size:209K  renesas
 n0603n.pdf pdf_icon

N0603N

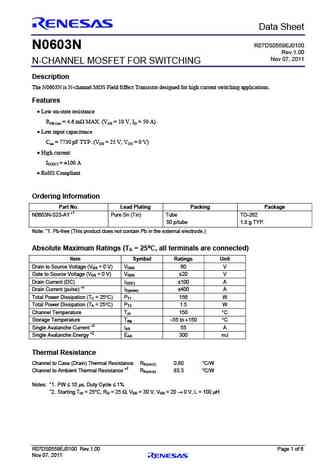

Preliminary Data Sheet R07DS0559EJ0100 N0603N Rev.1.00 Nov 07, 2011 N-CHANNEL MOSFET FOR SWITCHING Description The N0603N is N-channel MOS Field Effect Transistor designed for high current switching applications. Features Low on-state resistance RDS (on = 4.6 m MAX. (VGS = 10 V, ID = 50 A) ) Low input capacitance Ciss = 7730 pF TYP. (VDS = 25 V, VGS = 0 V)
