JMSL0406AG MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: JMSL0406AG
Código: SL0406A
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 42 W
Voltaje máximo drenador - fuente |Vds|: 40 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 70 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 2.5 V
Carga de la puerta (Qg): 17.9 nC
Tiempo de subida (tr): 8.6 nS
Conductancia de drenaje-sustrato (Cd): 536 pF
Resistencia entre drenaje y fuente RDS(on): 0.0052 Ohm
Paquete / Cubierta: PDFN5X6
Búsqueda de reemplazo de MOSFET JMSL0406AG
JMSL0406AG Datasheet (PDF)
jmsl0406ag.pdf

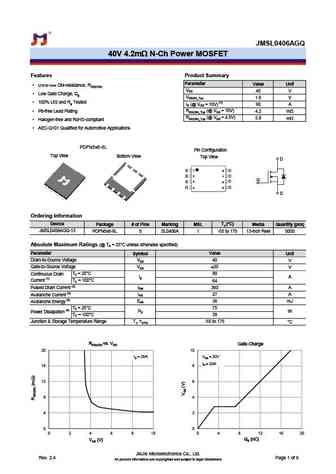

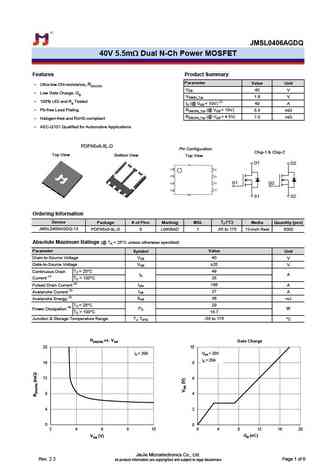

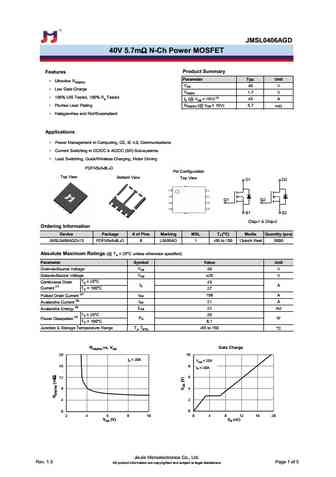

JMSL0406AG40V 4.2m N-Ch Power MOSFETFeatures Product SummaryParameter Typ. Unit Ultra-low RDS(ON) VDS40 V Low Gate Charge VGS(th)1.7 V High Current Capability ID (@ VGS = 10V) (1) 70 A 100% UIS Tested, 100% Rg Tested RDS(ON) (@ VGS = 10V)4.2 mApplications Power Management in Computing, CE, IE 4.0, Communications Current Switching in DC/DC
