JMTP110N06D MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: JMTP110N06D
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 3.1 W|Vds|ⓘ - Voltaje máximo drenador - fuente: 60 V
|Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
|Id|ⓘ - Corriente continua de drenaje: 11 A
Tjⓘ - Temperatura máxima de unión: 150 °C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 19 nS
Cossⓘ - Capacitancia de salida: 183 pF
Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.014 Ohm
Paquete / Cubierta: SOP8
Búsqueda de reemplazo de JMTP110N06D MOSFET

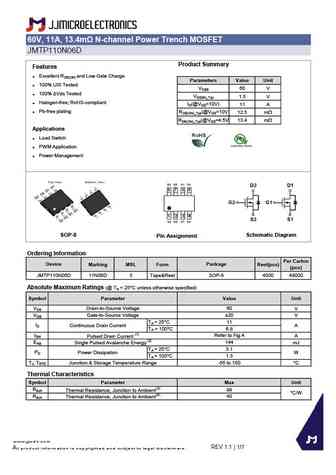

JMTP110N06D Datasheet (PDF)
jmtp110n06d.pdf

60V, 11A, 13.4m N-channel Power Trench MOSFETJMTP110N06DProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 60 V 100% Vds TestedVGS(th)_Typ 1.5 V Halogen-free; RoHS-compliantID(@VGS=10V) 11 A Pb-free platingRDS(ON)_Typ(@VGS=10V 12.5 mWRDS(ON)_Typ(@VGS=4.5V 13.4 mWApplications Load Switch

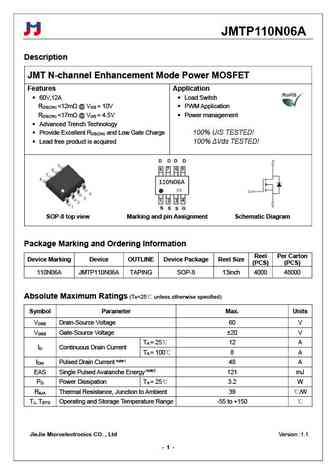

jmtp110n06a.pdf

JMTP110N06A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 60V,12A Load Switch R

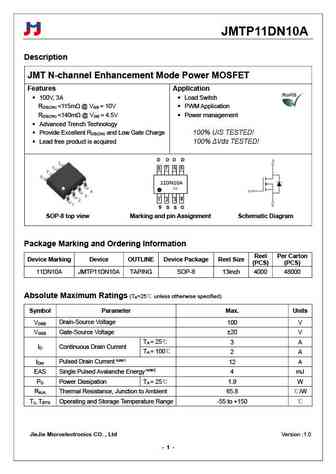

jmtp11dn10a.pdf

JMTP11DN10A Description JMT N-channel Enhancement Mode Power MOSFET Features Application 100V, 3A Load Switch R
jmtp160p03d.pdf

-30V, -11A, 16m P-channel Power Trench MOSFETJMTP160P03DProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS -30 V Halogen-free; RoHS-compliantVGS(th)_Typ -1.7 V Pb-free platingID(@VGS=10V) -11 ARDS(ON)_Typ(@VGS=-10V 12 mWApplications RDS(ON)_Typ(@VGS=-4.5V 16 mW Load Switch PWM Application
Otros transistores... JMTK080P03A , JMTP045N03A , JMTP075N06A , JMTP080N04A , JMTP080N04D , JMTP080P03A , JMTP085P02A , JMTP110N06A , 2N7000 , JMTP11DN10A , JMTQ025N02A , JMTQ040N03A , JMTQ050N02A , JMTQ055N04A , JMTQ062N04A , JMTQ075N03D , JMTQ080P03A .
