AP50N06DF Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AP50N06DF  📄📄

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 41 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 60 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 50 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 41.2 nS

Cossⓘ - Capacitancia de salida: 201 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.0085 Ohm

Encapsulados: PDFN3X3-8L

  📄📄 Copiar

 Búsqueda de reemplazo de AP50N06DF MOSFET

- Selecciónⓘ de transistores por parámetros

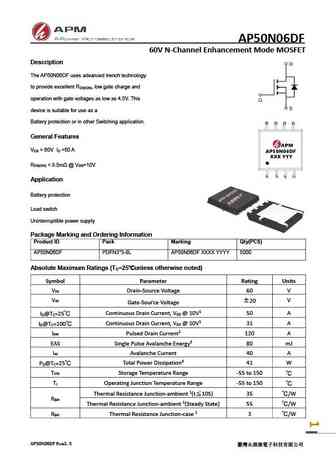

AP50N06DF datasheet

 ..1. Size:3648K  cn apm
 ap50n06df.pdf pdf_icon

AP50N06DF

AP50N06DF 60V N-Channel Enhancement Mode MOSFET Description The AP50N06DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS D R

 6.1. Size:2272K  cn apm
 ap50n06d.pdf pdf_icon

AP50N06DF

AP50N06D 60V N-Channel Enhancement Mode MOSFET Description The AP50N06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS D R

 7.1. Size:2029K  allpower
 ap50n06k.pdf pdf_icon

AP50N06DF

 7.2. Size:2440K  cn apm
 ap50n06nf.pdf pdf_icon

AP50N06DF

AP50N06NF 60V N-Channel Enhancement Mode MOSFET Description The AP50N06NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS D R

MOSTRAR MÁS
