AP10G03S Todos los transistores



AP10G03S MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AP10G03S
   Tipo de FET: MOSFET
   Polaridad de transistor: NP

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 1.5 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 30 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 12(9.8) A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 8.2(14.8) nS
   Cossⓘ - Capacitancia de salida: 131(194) pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.012(0.025) Ohm
   Paquete / Cubierta: SOP8


 Búsqueda de reemplazo de AP10G03S MOSFET

   - Selección ⓘ de transistores por parámetros

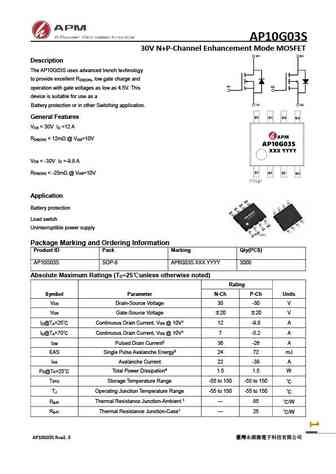

AP10G03S Datasheet (PDF)

 ..1. Size:2476K  cn apm
 ap10g03s.pdf pdf_icon

AP10G03S

AP10G03S 30V N+P-Channel Enhancement Mode MOSFET Description The AP10G03S uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =12 A DS DR

 8.1. Size:2666K  cn apm
 ap10g04df.pdf pdf_icon

AP10G03S

AP10G04DF 40V N+P-Channel Enhancement Mode MOSFET Description The AP10G04DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =9.8A DS DR

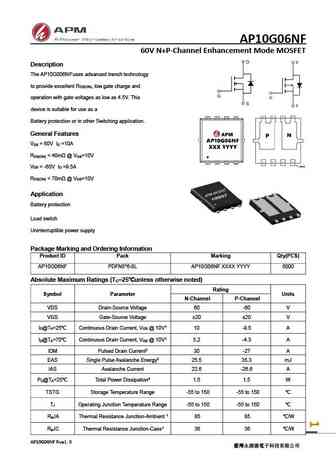

 8.2. Size:2838K  cn apm
 ap10g06nf.pdf pdf_icon

AP10G03S

AP10G06NF 60V N+P-Channel Enhancement Mode MOSFET Description The AP10G006NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =10A DS DR

 8.3. Size:2001K  cn apm
 ap10g04s.pdf pdf_icon

AP10G03S

AP10G04S 40V N+P-Channel Enhancement Mode MOSFET Description The AP10G04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =9.8A DS DR

MOSTRAR MÁS
