AP15G03DF Todos los transistores



AP15G03DF MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AP15G03DF
   Tipo de FET: MOSFET
   Polaridad de transistor: P

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 41.3 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 30 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 19.7 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 8 nS
   Cossⓘ - Capacitancia de salida: 131 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.012 Ohm
   Paquete / Cubierta: PDFN3X3-8L


 Búsqueda de reemplazo de AP15G03DF MOSFET

   - Selección ⓘ de transistores por parámetros



AP15G03DF Datasheet (PDF)

 ..1. Size:2641K  cn apm
 ap15g03df.pdf pdf_icon

AP15G03DF

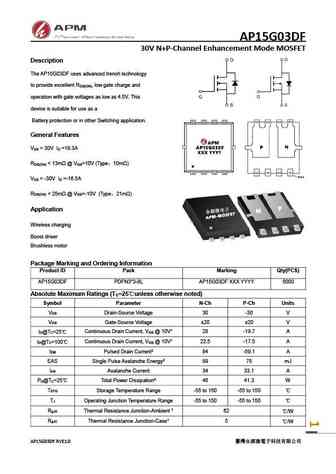

AP15G03DF 30V N+P-Channel Enhancement Mode MOSFET Description The AP15G03DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =19.3A DS DR

 7.1. Size:1771K  cn apm
 ap15g03nf.pdf pdf_icon

AP15G03DF

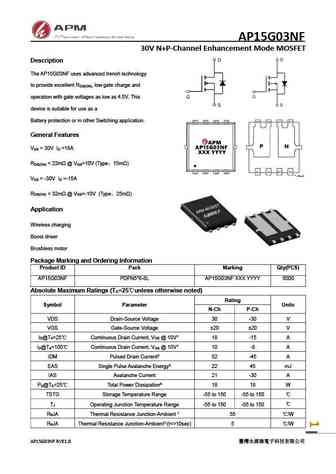

AP15G03NF 30V N+P-Channel Enhancement Mode MOSFET Description The AP15G03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 30V I =18A DS DR

 8.1. Size:2122K  cn apm
 ap15g04nf.pdf pdf_icon

AP15G03DF

AP15G04NF 40V N+P-Channel Enhancement Mode MOSFET Description The AP15G04NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =21A DS DR
