AP50N20MP
MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: AP50N20MP
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 104
W
|Vds|ⓘ - Voltaje máximo drenador - fuente: 200
V
|Vgs|ⓘ - Voltaje máximo fuente - puerta: 20
V
|Id|ⓘ - Corriente continua de drenaje: 50
A
Tjⓘ - Temperatura máxima de unión: 150
°C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 54
nS
Cossⓘ - Capacitancia
de salida: 355
pF
Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.06
Ohm
Paquete / Cubierta:
TO247
Búsqueda de reemplazo de AP50N20MP
MOSFET
-
Selección ⓘ de transistores por parámetros
AP50N20MP
Datasheet (PDF)
..1. Size:1356K cn apm
ap50n20mp.pdf

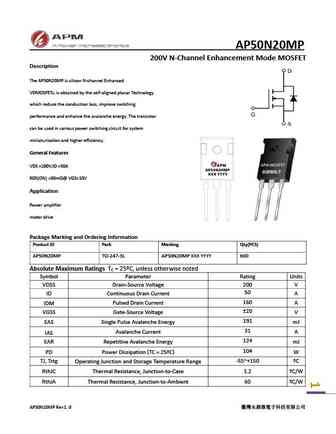

AP50N20MP 200V N-Channel Enhancement Mode MOSFET Description The AP50N20MP is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and higher efficiency. Ge
