AP8H06S Todos los transistores



AP8H06S MOSFET Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AP8H06S
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 1.5 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 60 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 8.2 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 14.2 nS
   Cossⓘ - Capacitancia de salida: 86 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.038 Ohm
   Paquete / Cubierta: SOP8


 Búsqueda de reemplazo de AP8H06S MOSFET

   - Selección ⓘ de transistores por parámetros



AP8H06S PDF Specs

 ..1. Size:1689K  cn apm
 ap8h06s.pdf pdf_icon

AP8H06S

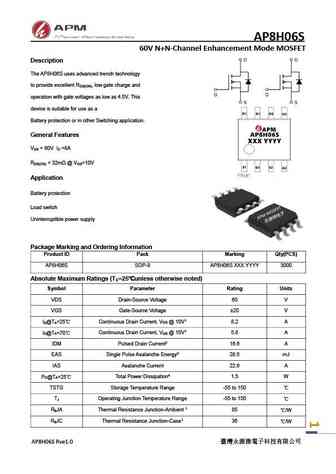

AP8H06S 60V N+N-Channel Enhancement Mode MOSFET Description The AP8H06S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =8A DS D R ... See More ⇒

 9.1. Size:1214K  cn apm
 ap8h04df.pdf pdf_icon

AP8H06S

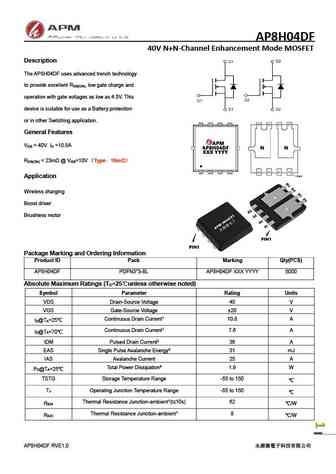

AP8H04DF 40V N+N-Channel Enhancement Mode MOSFET Description The AP8H04DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =10.8A DS D R ... See More ⇒

 9.2. Size:2038K  cn apm
 ap8h04s.pdf pdf_icon

AP8H06S

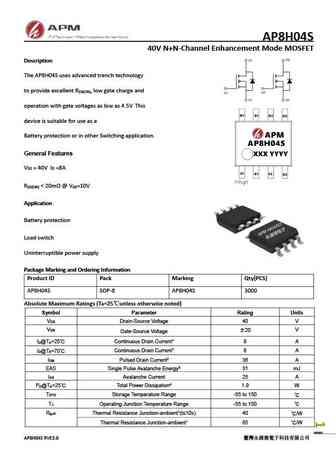

AP8H04S 40V N+N-Channel Enhancement Mode MOSFET Description The AP8H04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =8A DS D R ... See More ⇒
