AP70P02D MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AP70P02D
   Tipo de FET: MOSFET
   Polaridad de transistor: P

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 29 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 20 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 12 V
   |Id|ⓘ - Corriente continua de drenaje: 70 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 76.8 nS
   Cossⓘ - Capacitancia de salida: 509 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.009 Ohm
   Paquete / Cubierta: TO252


 Búsqueda de reemplazo de AP70P02D MOSFET

   - Selección ⓘ de transistores por parámetros



AP70P02D Datasheet (PDF)

 ..1. Size:1090K  cn apm
 ap70p02d.pdf pdf_icon

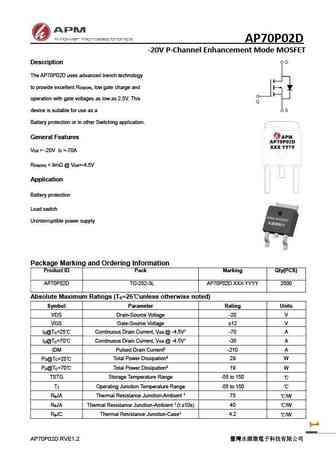

AP70P02D

AP70P02D -20V P-Channel Enhancement Mode MOSFET Description The AP70P02D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-70A DS DR

 8.1. Size:1663K  cn apm
 ap70p03d.pdf pdf_icon

AP70P02D

AP70P03D -30V P-Channel Enhancement Mode MOSFET Description The AP70P03D uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-70 A DS DR

 8.2. Size:1611K  cn apm
 ap70p03nf.pdf pdf_icon

AP70P02D

AP70P03NF -30V P-Channel Enhancement Mode MOSFET Description The AP70P03NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-70 A DS DR

 8.3. Size:1495K  cn apm
 ap70p03df.pdf pdf_icon

AP70P02D

AP70P03DF -30V P-Channel Enhancement Mode MOSFET Description The AP70P03DF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-70A DS DR
