AP220N10MP Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AP220N10MP

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 296 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 100 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 220 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 26 nS

Cossⓘ - Capacitancia de salida: 1290 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.0032 Ohm

Encapsulados: TO247

 Búsqueda de reemplazo de AP220N10MP MOSFET

- Selecciónⓘ de transistores por parámetros



AP220N10MP datasheet

 ..1. Size:1423K  cn apm
 ap220n10mp.pdf pdf_icon

AP220N10MP

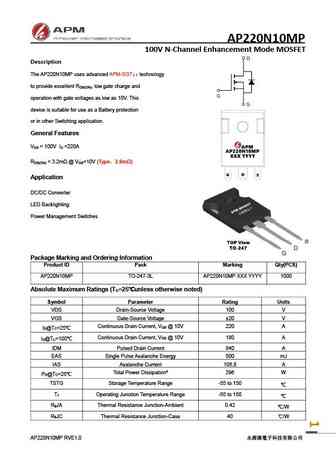

AP220N10MP 100V N-Channel Enhancement Mode MOSFET Description The AP220N10MP uses advanced APM-SGT technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 100V I =220A DS D R

 8.1. Size:1485K  1
 ap220n04p ap220n04t.pdf pdf_icon

AP220N10MP

AP220N04PIT 40V N-Channel Enhancement Mode MOSFET Description The AP220N04P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 40V I =220A DS D R

 8.2. Size:1586K  cn apm
 ap220n08tlg1.pdf pdf_icon

AP220N10MP

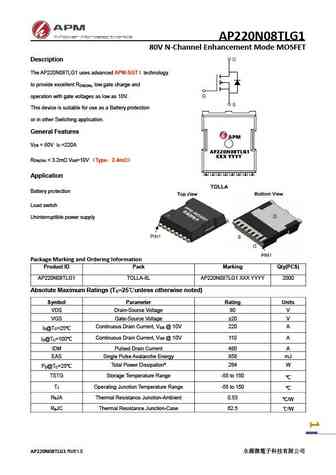

AP220N08TLG1 80V N-Channel Enhancement Mode MOSFET Description The AP220N08TLG1 uses advanced APM-SGT I technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 10V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 80V I =220A DS D R

 8.3. Size:1929K  cn apm
 ap220n06mp.pdf pdf_icon

AP220N10MP
