AGM3400E MOSFET Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AGM3400E

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 1.2 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 30 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 12 V

|Id|ⓘ - Corriente continua de drenaje: 5.6 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 28 nS

Cossⓘ - Capacitancia de salida: 229 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.025 Ohm

Encapsulados: SOT23

 Búsqueda de reemplazo de AGM3400E MOSFET

- Selecciónⓘ de transistores por parámetros



AGM3400E datasheet

 ..1. Size:1800K  cn agmsemi
 agm3400e.pdf pdf_icon

AGM3400E

AGM3400E Typical Performance Characteristics Figure1. Output Characteristics Figure2. Transfer Characteristics Figure 3 On-Resistance vs. Drain Current Figure 4 On-Resistance vs. Junction Temperature and Gate Voltage Figure5. Capacitance Characteristics Figure6. Gate Charge www.agm-mos.com 3 VER2.71 AGM3400E Figure7. Safe Operation Area Figure8. Maximum Continuous Drain

 0.1. Size:1777K  cn agmsemi

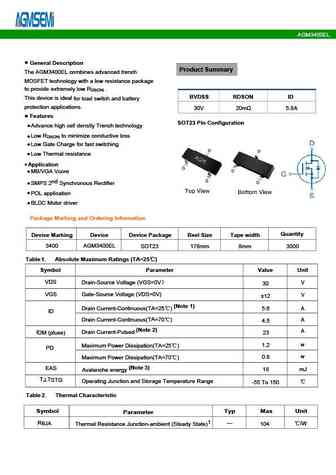

 agm3400el.pdf pdf_icon

AGM3400E

AGM3400EL Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 30 -- -- V GS D DSS Zero Gate Voltage Drain Current V =30V,V =0V -- -- 1 A DS GS I DSS V = 12V,V =0V -- -- nA GS DS IGSS Gate-Body Leakage Current 100 VGS(th) Gate Threshold Voltage V

 8.1. Size:1838K  cn agmsemi

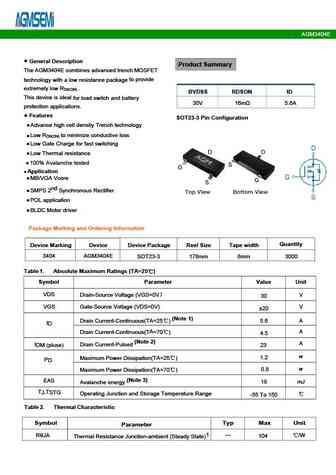

 agm3404e.pdf pdf_icon

AGM3400E

AGM3404E Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 30 -- -- V GS D DSS Zero Gate Voltage Drain Current V =30V,V =0V -- -- 1 A DS GS I DSS V = 20V,V =0V -- -- nA GS DS IGSS Gate-Body Leakage Current 100 VGS(th) Gate Threshold Voltage V

 8.2. Size:1748K  cn agmsemi

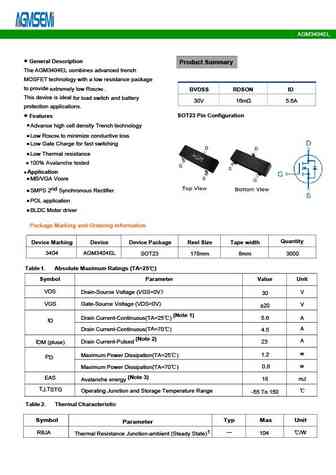

 agm3404el.pdf pdf_icon

AGM3400E

AGM3404EL Table 3. Electrical Characteristics (TJ=25 unless otherwise noted) Symbol Parameter Conditions Min Typ Max Unit On/Off States BV Drain-Source Breakdown Voltage V =0V I =250 A 30 -- -- V GS D DSS Zero Gate Voltage Drain Current V =30V,V =0V -- -- 1 A DS GS I DSS V = 20V,V =0V -- -- nA GS DS IGSS Gate-Body Leakage Current 100 VGS(th) Gate Threshold Voltage V
