AOTF20N40L Todos los transistores

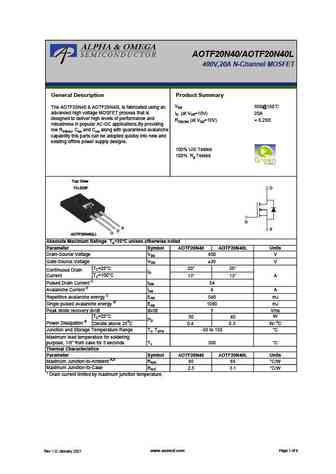

AOTF20N40/AOTF20N40L 400V,20A N-Channel MOSFET General Description Product Summary VDS 500@150 The AOTF20N40 & AOTF20N40L is fabricated using an advanced high voltage MOSFET process that is ID (at VGS=10V) 20A designed to deliver high levels of performance and RDS(ON) (at VGS=10V)

AOTF20N40 400V,20A N-Channel MOSFET General Description Product Summary VDS 500@150 The AOTF20N40 is fabricated using an advanced high voltage MOSFET process that is designed to deliver high ID (at VGS=10V) 20A levels of performance and robustness in popular AC-DC RDS(ON) (at VGS=10V)

isc N-Channel MOSFET Transistor AOTF20N40 FEATURES Drain Current I =20A@ T =25 D C Drain Source Voltage- V =400V(Min) DSS Static Drain-Source On-Resistance R =0.25 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpos

AOT20N60/AOTF20N60 600V,20A N-Channel MOSFET General Description Product Summary VDS 700V@150 The AOT20N60 & AOTF20N60 have been fabricated using an advanced high voltage MOSFET process that is ID (at VGS=10V) 20A designed to deliver high levels of performance and RDS(ON) (at VGS=10V)

isc N-Channel MOSFET Transistor AOTF20N60 FEATURES Drain Current I = 20A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R =0.37 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpo
