MS23N06A Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: MS23N06A  📄📄

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 1 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 30 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 12 V

|Id|ⓘ - Corriente continua de drenaje: 5.8 A

Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 47 nS

Cossⓘ - Capacitancia de salida: 84 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.03 Ohm

Encapsulados: SOT23

  📄📄 Copiar

 Búsqueda de reemplazo de MS23N06A MOSFET

- Selecciónⓘ de transistores por parámetros



MS23N06A datasheet

 ..1. Size:343K  bruckewell
 ms23n06a.pdf pdf_icon

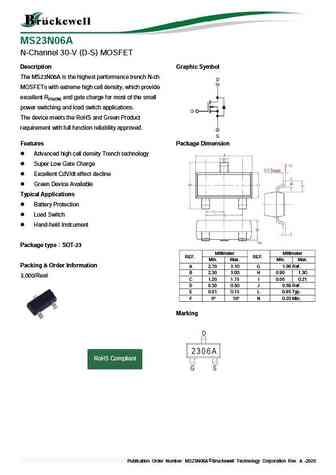

MS23N06A

MS23N06A N-Channel 30-V (D-S) MOSFET Description Graphic Symbol The MS23N06A is the highest performance trench N-ch MOSFETs with extreme high cell density, which provide excellent RDS(ON) and gate charge for most of the small power switching and load switch applications. The device meets the RoHS and Green Product requirement with full function reliability approved. Features P
