CEM3139 Datasheet. Equivalente

 ..1. Size:1094K  cet
 cem3139.pdf

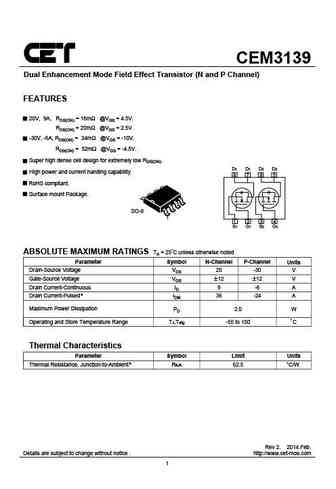

CEM3139 Dual Enhancement Mode Field Effect Transistor (N and P Channel) FEATURES 20V, 9A, RDS(ON) = 16m @VGS = 4.5V. RDS(ON) = 20m @VGS = 2.5V. -30V, -6A, RDS(ON) = 34m @VGS = -10V. RDS(ON) = 52m @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). D1 D1 D2 D2 High power and current handing capability. 8 7 6 5 RoHS compliant. Surface mount Package. S

 8.1. Size:505K  cet
 cem3138.pdf

CEM3138 Dual N-Channel Enhancement Mode Field Effect Transistor FEATURES 5 30V, 9.1A, RDS(ON) = 15m @VGS = 10V. RDS(ON) = 21m @VGS = 4.5V. 30V, 6.9A, RDS(ON) = 26m @VGS = 10V. RDS(ON) = 35m @VGS = 4.5V. D1 D1 D2 D2 Super high dense cell design for extremely low RDS(ON). 8 7 6 5 High power and current handing capability. Lead free product is acquired. Surface mount Pac

 8.2. Size:665K  cet
 cem3133.pdf

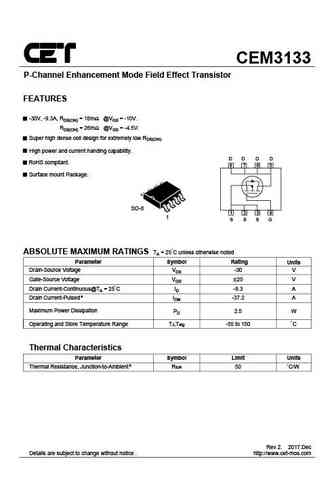

CEM3133 P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -9.3A, RDS(ON) = 18mW @VGS = -10V. RDS(ON) = 26mW @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D D D D RoHS compliant. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S S S G ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parame

 9.1. Size:615K  cet
 cem3109.pdf

CEM3109 Dual Enhancement Mode Field Effect Transistor (N and P Channel) PRELIMINARY FEATURES 30V, 10A, RDS(ON) = 14m @VGS = 10V. RDS(ON) = 20m @VGS = 4.5V. -30V, -8A, RDS(ON) = 20m @VGS = -10V. RDS(ON) = 30m @VGS = -4.5V. D1 D1 D2 D2 Super high dense cell design for extremely low RDS(ON). 8 7 6 5 High power and current handing capability. Lead free product is acquired.

 9.2. Size:372K  cet
 cem3172.pdf

CEM3172 N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 8.9A, RDS(ON) = 20m @VGS = 10V. RDS(ON) = 32m @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D D D D Lead free product is acquired. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S S S G ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwis

 9.3. Size:387K  cet
 cem3120.pdf

CEM3120 N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 10A, RDS(ON) = 15m @VGS = 10V. RDS(ON) = 22m @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D D D D Lead free product is acquired. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S S S G ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise

 9.4. Size:387K  cet
 cem3178.pdf

CEM3178 PRELIMINARY Dual N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 7.6A, RDS(ON) = 22m @VGS = 10V. RDS(ON) = 33m @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is acquired. D1 D1 D2 D2 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S1 G1 S2 G2 ABSOLUTE MAXIMUM RATINGS T

 9.5. Size:383K  cet
 cem3115.pdf

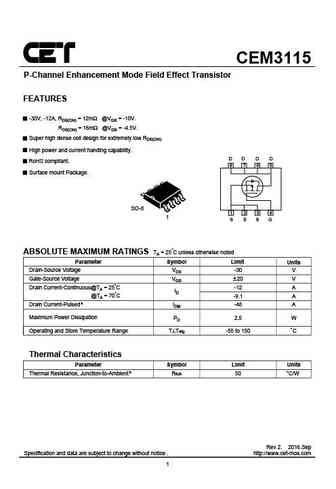

CEM3115 P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -12A, RDS(ON) = 12m @VGS = -10V. RDS(ON) = 16m @VGS = -4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D D D D RoHS compliant. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 1 S S S G ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Par

 9.6. Size:273K  cet
 cem3128.pdf

CEM3128 Dual N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 9A, RDS(ON) = 16m @VGS = 10V. RDS(ON) = 23m @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. D1 D1 D2 D2 Lead free product is acquired. 8 7 6 5 Surface mount Package. SO-8 1 2 3 4 S1 G1 S2 G2 1 ABSOLUTE MAXIMUM RATINGS TA = 25 C unles

 9.7. Size:882K  cn vbsemi
 cem3128.pdf

CEM3128 www.VBsemi.tw Dual N-Channel 30 V (D-S) MOSFET FEATURES PRODUCT SUMMARY TrenchFET Power MOSFET VDS (V) RDS(on) ( ) ID (A)a Qg (Typ.) 100 % Rg Tested 0.016 at VGS = 10 V 8.5 100 % UIS Tested 30 7.1 Compliant to RoHS Directive 2002/95/EC 0.020 at VGS = 4.5 V 7.6 APPLICATIONS Notebook System Power Low Current DC/DC D 1 D 2 SO-8 S D
