NJW3281G
. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: NJW3281G
Material: Si
Polaridad de transistor: NPN
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 200
W
Tensión colector-base (Vcb): 250
V
Tensión colector-emisor (Vce): 250
V
Tensión emisor-base (Veb): 5
V
Corriente del colector DC máxima (Ic): 15
A
Temperatura operativa máxima (Tj): 150
°C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 30
MHz
Capacitancia de salida (Cc): 600
pF
Ganancia de corriente contínua (hfe): 75
Paquete / Cubierta:
TO3P
Búsqueda de reemplazo de transistor bipolar NJW3281G
NJW3281G
Datasheet (PDF)
..1. Size:115K onsemi
njw1302g njw3281g.pdf
NJW3281G (NPN)NJW1302G (PNP)Complementary NPN-PNPSilicon Power BipolarTransistorsThe NJW3281G and NJW1302G are power transistors for highhttp://onsemi.compower audio, disk head positioners and other linear applications.Features15 AMPERES Exceptional Safe Operating AreaCOMPLEMENTARY NPN/PNP Gain Matching within 10% from 50 mA to 5 A Excellent Gain LinearitySI
..2. Size:111K onsemi
njw3281g njw1302g.pdf
NJW3281G (NPN)NJW1302G (PNP)Complementary NPN-PNPSilicon Power BipolarTransistorsThe NJW3281G and NJW1302G are power transistors for highhttp://onsemi.compower audio, disk head positioners and other linear applications.Features15 AMPERES Exceptional Safe Operating AreaCOMPLEMENTARY NPN/PNP Gain Matching within 10% from 50 mA to 5 A Excellent Gain LinearitySI

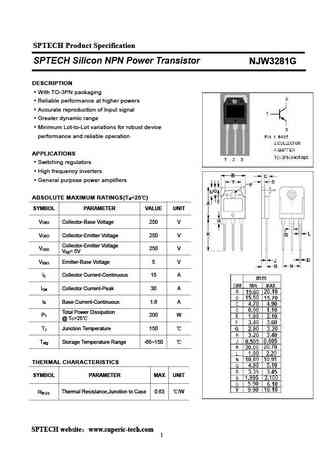

..3. Size:434K cn sptech
njw3281g.pdf
SPTECH Product SpecificationSPTECH Silicon NPN Power TransistorNJW3281GDESCRIPTIONWith TO-3PN packagingReliable performance at higher powersAccurate reproduction of Input signalGreater dynamic rangeMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching regulatorsHigh frequency invertersGeneral purpose powe

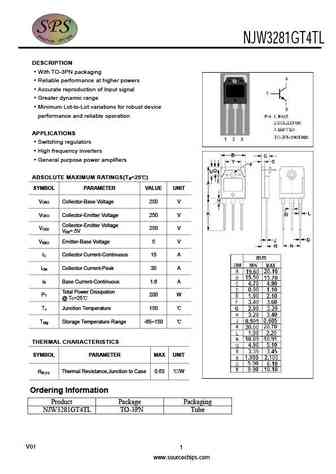

0.1. Size:834K cn sps
njw3281gt4tl.pdf
NJW3281GT4TLDESCRIPTIONWith TO-3PN packagingReliable performance at higher powersAccurate reproduction of Input signalGreater dynamic rangeMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching regulatorsHigh frequency invertersGeneral purpose power amplifiersABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PAR
7.1. Size:83K onsemi
njw3281 njw1302g.pdf
NJW3281G (NPN)NJW1302G (PNP)Preferred DevicesComplementary NPN-PNPSilicon Power BipolarTransistorsThe NJW3281G and NJW1302G are power transistors for highhttp://onsemi.compower audio, disk head positioners and other linear applications.Features15 AMPERES Exceptional Safe Operating Area NPN/PNP Gain Matching within 10% from 50 mA to 5 A COMPLEMENTARY Excellent
