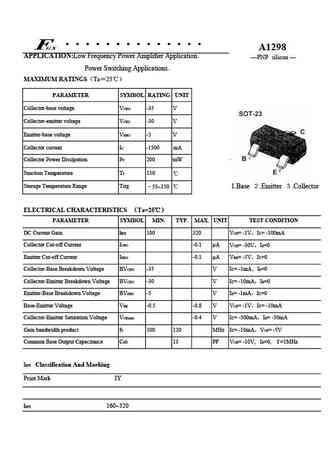

A1298 APPLICATION Low Frequency Power Amplifier Application. PNP silicon Power Switching Applications. MAXIMUM RATINGS Ta 25 PARAMETER SYMBOL RATING UNIT Collector-base voltage VCBO -35 V Collector-emitter voltage VCEO -30 V Emitter-base voltage VEBO -5 V Collector current IC -1500 mA . Collector Power Dissipation PC 200 mW 2 Junction Temp

 0.1. Size:203K  toshiba
 2sa1298.pdf

2SA1298 TOSHIBA Transistor Silicon PNP Epitaxial (PCT process) 2SA1298 Low Frequency Power Amplifier Application Unit mm Power Switching Applications High DC current gain hFE = 100 320 Low saturation voltage V = -0.4 V (max) CE (sat) (I = -500 mA, I = -20 mA) C B Suitable for driver stage of small motor Complementary to 2SC3265 Small package Max

 0.2. Size:189K  toshiba
 2sa1298o 2sa1298y.pdf

2SA1298 TOSHIBA Transistor Silicon PNP Epitaxial (PCT process) 2SA1298 Low Frequency Power Amplifier Application Unit mm Power Switching Applications High DC current gain hFE = 100 to 320 Low saturation voltage VCE (sat) = -0.4 V (max) (IC = -500 mA, IB = -20 mA) Suitable for driver stage of small motor Complementary to 2SC3265 Small package Absolu

 0.3. Size:44K  fairchild semi
 ksa1298.pdf

KSA1298 Low Frequency Power Amplifier 3 Complement to KSC3265 2 SOT-23 1 1. Base 2. Emitter 3. Collector PNP Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25 C unless otherwise noted Symbol Parameter Ratings Units VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -25 V VEBO Emitter-Base Voltage -5 V IC Collector Current -800 mA IB Base Current -160

 0.4. Size:19K  samsung
 ksa1298.pdf

KSA1298 PNP EPITAXIAL SILICON TRANSISTOR LOW FREQUENCY POWER STO-23 Complement to KSC3265 ABSOLUTE MAXIMUM RATINGS (T =25 ) A Characteristic Symbol Rating Unit Collector-Base Voltage VCBO -30 V Collector-Emitter Voltage VCEO -25 V Emitter-Base Voltage VEBO -5 V Collector Current IC -800 mA Base Current IB -160 mA Collector Dissipation PC 200 mW Junction Temperature TJ 150 Sto

 0.5. Size:319K  mcc
 2sa1298-o.pdf

MCC 2SA1298-O TM Micro Commercial Components 20736 Marilla Street Chatsworth Micro Commercial Components CA 91311 2SA1298-Y Phone (818) 701-4933 Fax (818) 701-4939 Features Power switching application Low frequency power amplifier application PNP General Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Purpose Amplifier Lead Free Fin

 0.6. Size:319K  mcc
 2sa1298-y.pdf

MCC 2SA1298-O TM Micro Commercial Components 20736 Marilla Street Chatsworth Micro Commercial Components CA 91311 2SA1298-Y Phone (818) 701-4933 Fax (818) 701-4939 Features Power switching application Low frequency power amplifier application PNP General Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Purpose Amplifier Lead Free Fin

 0.7. Size:458K  mcc
 2sa1298.pdf

2SA1298 Features Power Switching Application Low Frequency Power Amplifier Application Halogen Free. Green Device (Note 1) PNP General Moisture Sensitivity Level 1 Epoxy Meets UL 94 V-0 Flammability Rating Purpose Amplifier Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25 C Unless

 0.8. Size:162K  onsemi
 ksa1298.pdf

Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur

 0.9. Size:78K  secos
 2sa1298.pdf

2SA1298 -0.8A , -35V PNP Silicon Plastic Encapsulated Transistor Elektronische Bauelemente RoHS Compliant Product A suffix of -C specifies halogen & lead-free SOT-23 FEATURES Low Frequency Power Amplifier Application A Power Switching Applications L 3 3 Top View C B CLASSIFICATION OF hFE (1) 1 1 2 Product-Rank 2SA1298-O 2SA1298-Y 2 K E Range 100 20

 0.10. Size:450K  jiangsu
 kta1298.pdf

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Transistors SOT-23 KTA1298 TRANSISTOR (PNP) 1. BASE 2. EMITTER FEATURES 3. COLLECTOR Low frequency power amplifier application Power switching application MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -35 V VCEO Collector-Emit

 0.11. Size:71K  kec
 kta1298.pdf

SEMICONDUCTOR KTA1298 TECHNICAL DATA EPITAXIAL PLANAR PNP TRANSISTOR LOW FREQUENCY POWER AMPLIFIER APPLICATION. POWER SWITCHING APPLICATION. E L B L FEATURES DIM MILLIMETERS High DC Current Gain hFE=100 320. _ + 2.93 0.20 A B 1.30+0.20/-0.15 Low Saturation Voltage C 1.30 MAX 2 VCE(sat)=-0.4V(Max.) (IC=-500mA, IB=-20mA). 3 D 0.45+0.15/-0.05 E 2.40+0.30/-0.20 Suitable

 0.12. Size:342K  htsemi
 kta1298.pdf

KTA1298 TRANSISTOR (PNP) SOT-23 1. BASE FEATURES 2. EMITTER Low frequency power amplifier application 3. COLLECTOR Power switching application MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage -35 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current Continuous -0.8 A

 0.13. Size:296K  htsemi
 2sa1298.pdf

2SA1 298 TRANSISTOR(PNP) SOT 23 FEATURES Low Frequency Power Amplifier Application Power Swithing Applications MAXIMUM RATINGS (Ta=25 unless otherwise noted) 1. BASE Symbol Parameter Value Unit 2. EMITTER V Collector-Base Voltage -35 V CBO 3. COLLECTOR V Collector-Emitter Voltage -30 V CEO V Emitter-Base Voltage -5 V EBO I Collector Current -800 mA C

 0.14. Size:154K  lge
 kta1298.pdf

KTA1298 SOT-23 Transistor(PNP) SOT-23 1. BASE 2. EMITTER 3. COLLECTOR Features Low frequency power amplifier application Power switching application MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage -35 V Dimensions in inches and (millimeters) VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V

 0.15. Size:219K  first silicon
 fta1298.pdf

SEMICONDUCTOR FTA1298 TECHNICAL DATA General Purpose Transistors LOW FREQUENCY POWER AMPLIFIER APPLICATION. POWER SWITCHING APPLICATION. FEATURES High DC Current Gain hFE=100 320. Low Saturation Voltage 3 VCE(sat)=-0.4V(Max.) (IC=-500mA, IB=-20mA). Suitable for Driver Stage of Small Motor. 2 Complementary to FTC3265. 1 Small Package. SOT 23 MAXIMUM RATING (Ta=25 )

 0.16. Size:761K  kexin
 kta1298.pdf

SMD Type Transistors PNP Transistors KTA1298 SOT-23 Unit mm +0.1 2.9-0.1 +0.1 0.4 -0.1 3 Features Collector Power Dissipation PC=200mW Collector Current IC=-800mA 1 2 +0.05 0.95+0.1 -0.1 0.1 -0.01 1.9+0.1 -0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-Emitter Voltage VCEO -35 V Collector-Ba

 0.17. Size:1004K  kexin
 2sa1298.pdf

SMD Type Transistors PNP Transistors 2SA1298 SOT-23 Unit mm +0.1 2.9 -0.1 +0.1 0.4-0.1 3 Features Collector Current Capability IC=-0.8A 1 2 Collector Emitter Voltage VCEO=-30V +0.1 +0.05 0.95 -0.1 0.1 -0.01 +0.1 1.9 -0.1 Low Frequency Power Amplifier Application Power Swithing Applications 1.Base Complementary to 2SC3265 2.Emitter 3.collecto

 0.18. Size:159K  cn hottech
 kta1298.pdf

Plastic-Encapsulate Transistors FEATURES Low frequency power amplifier application KTA1298(PNP) Power switching application MAXIMUM RATINGS (TA=25 unless otherwise noted) Parameter Symbol Value Unit VCBO Collector-Base Voltage -35 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -800 mA 1. BASE Collector Power Dissipation PC 2
