HP50 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: HP50
Material: Si
Polaridad de transistor: NPN
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 40 W
Tensión colector-base (Vcb): 500 V
Tensión colector-emisor (Vce): 400 V
Tensión emisor-base (Veb): 5 V
Corriente del colector DC máxima (Ic): 1 A
Temperatura operativa máxima (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Transición de frecuencia (ft): 10 MHz
Ganancia de corriente contínua (hfe): 30
Paquete / Cubierta: TO220
Búsqueda de reemplazo de transistor bipolar HP50
HP50 Datasheet (PDF)
hp50.pdf

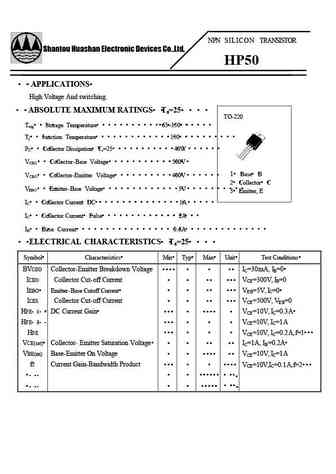

NPN S I L I C O N TRANSISTOR Shantou Huashan Electronic Devices Co.,Ltd. HP50 APPLICATIONS High Voltage And switching. ABSOLUTE MAXIMUM RATINGSTa=25 TO-220 TstgStorage Temperature -65~150 TjJunction Temperature 150 PCCollector DissipationTc=25
