EMT2 . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: EMT2

Código: T2

Material: Si

Polaridad de transistor: PNP

ESPECIFICACIONES MÁXIMAS

Disipación total del dispositivo (Pc): 0.15 W

Tensión colector-base (Vcb): 60 V

Tensión colector-emisor (Vce): 50 V

Tensión emisor-base (Veb): 6 V

Corriente del colector DC máxima (Ic): 0.15 A

Temperatura operativa máxima (Tj): 150 °C

CARACTERÍSTICAS ELÉCTRICAS

Producto de corriente -- ganancia — ancho de banda (ft): 140 MHz

Capacitancia de salida (Cc): 4 pF

Ganancia de corriente contínua (hfe): 120

Empaquetado / Estuche: EMT6

Búsqueda de reemplazo de transistor bipolar EMT2



EMT2 Datasheet (PDF)

1.1. emt2fha umt2nfha imt2afra.pdf Size:929K _update

EMT2
EMT2

EMT2FHA / UMT2NFHA / IMT2AFRA EMT2 / UMT2N / IMT2A Transistors AEC-Q101 Qualified General purpose (dual transistors) EMT2 / UMT2N / IMT2A EMT2FHA / UMT2NFHA / IMT2AFRA External dimensions (Unit : mm) Features 2SA1037AKFRA 1) Two 2SA1037AK chips in a EMT or UMT or SMT package. EMT2FHA EMT2 (4) (3) ( ) ( ) 5 2 (6) (1) 1.2 Equivalent circuits 1.6 EMT2FHA / UMT2NFHA IMT2

1.2. emt2.pdf Size:57K _upd

EMT2
EMT2

 EMT2 / UMT2N / IMT2A Transistors General purpose (dual transistors) EMT2 / UMT2N / IMT2A External dimensions (Unit : mm) Features 1) Two 2SA1037AK chips in a EMT or UMT or SMT package. EMT2 (4) (3) ( ) ( ) 5 2 (6) (1) 1.2 Equivalent circuits 1.6 EMT2 / UMT2N IMT2A (3) (2) (1) (4) (5) (6) Each lead has same dimensions ROHM : EMT6 Tr1 Tr1 Tr2 Tr2 UMT2N (4) (5) (

 1.3. chemt2gp.pdf Size:204K _upd

EMT2
EMT2

CHENMKO ENTERPRISE CO.,LTD CHEMT2GP SURFACE MOUNT Dual Silicon Transistor VOLTAGE 50 Volts CURRENT 150 mAmpere APPLICATION * Small Signal Amplifier . FEATURE * Small surface mounting type. (SOT-563) SOT-563 * Low saturation voltage VCE(sat)=-0.5V(max.)(IC=50mA) * Low cob. Cob=4.0pF(Typ.) * PC= 150mW (Total),120mW per element must not be exceeded. * High saturation current capabili

1.4. emt2fha.pdf Size:929K _upd

EMT2
EMT2

EMT2FHA / UMT2NFHA / IMT2AFRA EMT2 / UMT2N / IMT2A Transistors AEC-Q101 Qualified General purpose (dual transistors) EMT2 / UMT2N / IMT2A EMT2FHA / UMT2NFHA / IMT2AFRA External dimensions (Unit : mm) Features 2SA1037AKFRA 1) Two 2SA1037AK chips in a EMT or UMT or SMT package. EMT2FHA EMT2 (4) (3) ( ) ( ) 5 2 (6) (1) 1.2 Equivalent circuits 1.6 EMT2FHA / UMT2NFHA IMT2

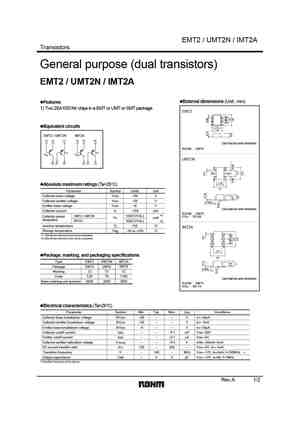

 1.5. emt2.pdf Size:71K _rohm

EMT2
EMT2

EMT2 / UMT2N / IMT2A Transistors General purpose (dual transistors) EMT2 / UMT2N / IMT2A External dimensions (Unit : mm) Features 1) Two 2SA1037AK chips in a EMT or UMT or SMT package. EMT2 (4) (3) ( ) ( ) 5 2 (6) (1) 1.2 Equivalent circuits 1.6 EMT2 / UMT2N IMT2A (3) (2) (1) (4) (5) (6) Each lead has same dimensions ROHM : EMT6 Tr1 Tr1 Tr2 Tr2 UMT2N (4) (5) (6)

1.6. emt2 umt2n imt2a.pdf Size:71K _rohm

EMT2
EMT2

EMT2 / UMT2N / IMT2A Transistors General purpose (dual transistors) EMT2 / UMT2N / IMT2A External dimensions (Unit : mm) Features 1) Two 2SA1037AK chips in a EMT or UMT or SMT package. EMT2 (4) (3) ( ) ( ) 5 2 (6) (1) 1.2 Equivalent circuits 1.6 EMT2 / UMT2N IMT2A (3) (2) (1) (4) (5) (6) Each lead has same dimensions ROHM : EMT6 Tr1 Tr1 Tr2 Tr2 UMT2N (4) (5) (6)

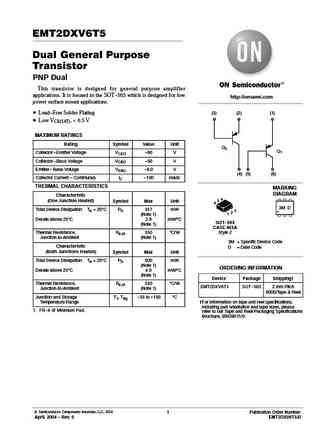

1.7. emt2dxv6t5-d.pdf Size:46K _onsemi

EMT2
EMT2

EMT2DXV6T5 Dual General Purpose Transistor PNP Dual This transistor is designed for general purpose amplifier applications. It is housed in the SOT-563 which is designed for low http://onsemi.com power surface mount applications. Lead-Free Solder Plating (3) (2) (1) Low VCE(SAT), < 0.5 V MAXIMUM RATINGS Rating Symbol Value Unit Q2 Q1 Collector-Emitter Voltage VCEO -60 V Collecto
