JJT50N65UH PDF and Equivalents Search



JJT50N65UH Specs and Replacement

Type Designator: JJT50N65UH

Type: IGBT

Type of IGBT Channel: N

Absolute Maximum Ratings

Pc ⓘ - Maximum Power Dissipation: 312 W

|Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V

|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V

|Ic| ⓘ - Maximum Collector Current: 100 A @25℃

Tj ⓘ - Maximum Junction Temperature: 175 ℃

Electrical Characteristics

|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.9 V @25℃

tr ⓘ - Rise Time, typ: 81 nS

Coesⓘ - Output Capacitance, typ: 136 pF

Package: TO3P

 JJT50N65UH Substitution

- IGBT ⓘ Cross-Reference Search



JJT50N65UH datasheet

 ..1. Size:3697K  jiejie micro

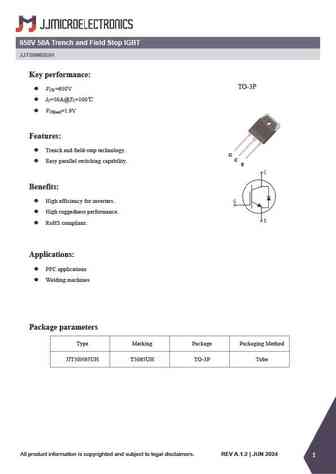

 jjt50n65uh.pdf pdf_icon

JJT50N65UH

650V 50A Trench and Field Stop IGBT JJT50N65UH Key performance TO-3P V =650V CE I =50A@T =100 C C V =1.9V CE(sat) Features Trench and field-stop technology. G C Easy parallel switching capability. E Benefits High efficiency for inverters. High ruggedness performance. RoHS compliant. Applications PFC applications Welding machin... See More ⇒

 5.1. Size:3693K  jiejie micro
 jjt50n65ue.pdf pdf_icon

JJT50N65UH

650V 50A Trench and Field Stop IGBT JJT50N65UE Key performance V =650V CE TO-247 I =50A@T =100 C C V =1.9V CE(sat) Features Trench and field-stop technology. Easy parallel switching capability. G C E Benefits High efficiency for inverters. High ruggedness performance. RoHS compliant. Applications PFC applications Welding machi... See More ⇒

 6.1. Size:4943K  jiejie micro

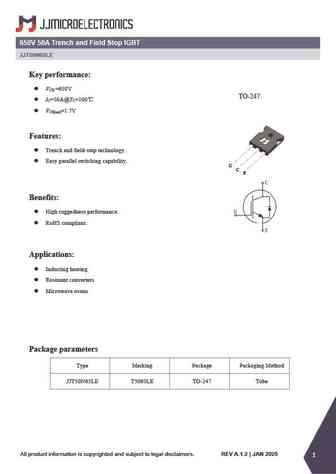

 jjt50n65le.pdf pdf_icon

JJT50N65UH

650V 50A Trench and Field Stop IGBT JJT50N65LE Key performance V =650V CE TO-247 I =50A@T =100 C C V =1.7V CE(sat) Features Trench and field-stop technology. Easy parallel switching capability. G C E Benefits High ruggedness performance. RoHS compliant. Applications Inducting heating Resonant converters Microwave ovens Packag... See More ⇒

 6.2. Size:4257K  jiejie micro

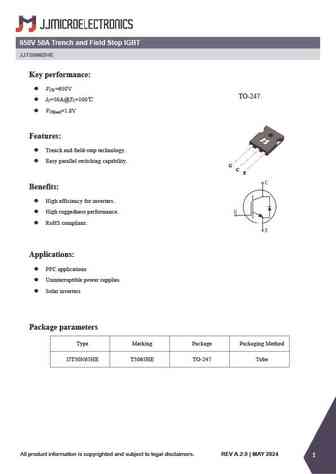

 jjt50n65he.pdf pdf_icon

JJT50N65UH

650V 50A Trench and Field Stop IGBT JJT50N65HE Key performance V =650V CE TO-247 I =50A@T =100 C C V =1.8V CE(sat) Features Trench and field-stop technology. Easy parallel switching capability. G C E Benefits High efficiency for inverters. High ruggedness performance. RoHS compliant. Applications PFC applications Uninterruptib... See More ⇒

SHOW MORE

Specs: JJT10N65SCD , JJT10N65SGD , JJT10N65SS , JJT10N65ST , JJT120N75SA , JJT50N65HE , JJT50N65LE , JJT50N65UE , FGA25N120ANTD , JJT15N120SE , JJT15N65SC , JJT15N65SG , JJT15N65SS , JJT15N65SY , JJT6N65SC , JJT6N65SS , JJT6N65ST .
