STP12PF06 Specs and Replacement
Type Designator: STP12PF06
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 60 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 12 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
Electrical Characteristics
tr ⓘ - Rise Time: 40 nS
Cossⓘ -
Output Capacitance: 230 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.2 Ohm
Package: TO220
- MOSFET ⓘ Cross-Reference Search

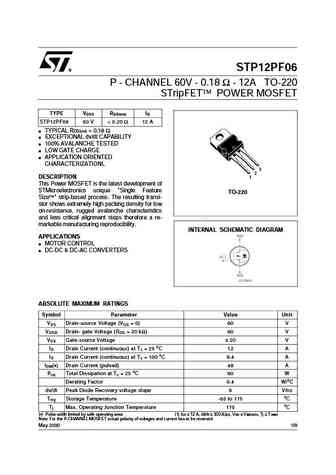

STP12PF06 datasheet
..1. Size:262K st
stp12pf06.pdf
STP12PF06 P - CHANNEL 60V - 0.18 - 12A TO-220 STripFET POWER MOSFET TYPE VDSS RDS(on) ID STP12PF06 60 V ... See More ⇒
..2. Size:266K st
stp12pf06 stf12pf06.pdf
STP12PF06 STF12PF06 P-CHANNEL 60V - 0.18 - 12A TO-220/TO-220FP STripFET II POWER MOSFET Table 1 General Features Figure 1 Package TYPE VDSS RDS(on) ID STP12PF06 60 V ... See More ⇒
