BSD314SPE Datasheet and Replacement


   Type Designator: BSD314SPE
   Type of Transistor: MOSFET
   Type of Control Channel: P -Channel
   Pd ⓘ - Maximum Power Dissipation: 0.5 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 1.5 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 3.9 nS
   Cossⓘ - Output Capacitance: 126 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.14 Ohm
   Package: SOT363


 BSD314SPE substitution

   - MOSFET ⓘ Cross-Reference Search



BSD314SPE Datasheet (PDF)

 ..1. Size:154K  infineon
 bsd314spe.pdf pdf_icon

BSD314SPE

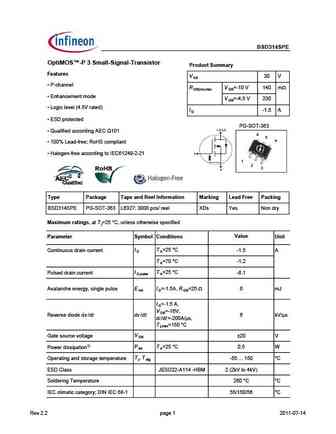

BSD314SPEOptiMOS-P 3 Small-Signal-TransistorProduct SummaryFeaturesV 30 VDS P-channelR V =-10 V 140mDS(on),max GS Enhancement modeV =-4.5 V 230GS Logic level (4.5V rated)I -1.5 AD ESD protectedPG-SOT-363 Qualified according AEC Q101654 100% Lead-free; RoHS compliant Halogen-free according to IEC61249-2-21123Type Pac
