   Type Designator: TK130F06K3
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 300 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 130 A
   Tj ⓘ - Maximum Junction Temperature: 175 °C
   tr ⓘ - Rise Time: 30 nS
   Cossⓘ - Output Capacitance: 1420 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0034 Ohm
   Package: TO220SM


 TK130F06K3 substitution

   - MOSFET ⓘ Cross-Reference Search



TK130F06K3 Datasheet (PDF)

 ..1. Size:212K  toshiba
 tk130f06k3.pdf pdf_icon

TK130F06K3

TK130F06K3 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIV) TK130F06K3 Swiching Regulator, DC-DC Converter Applications Motor Drive Applications Unit: mm Low drain-source ON resistance: RDS (ON) = 2.6 m (typ.) 10.0 0.3 High forward transfer admittance: |Yfs| = 220 S (typ.) 0.4 0.19.5 0.2 Low leakage current: IDSS = 10 A (max) (V

 9.1. Size:217K  st
 stk13003.pdf pdf_icon

TK130F06K3

STK13003HIGH VOLTAGE FAST-SWITCHINGNPN POWER TRANSISTOR STK13003 IS REVERSE PINS OUT VsSTANDARD SOT-82 PACKAGE MEDIUM VOLTAGE CAPABILITY LOW SPREAD OF DYNAMIC PARAMETERS MINIMUM LOT-TO-LOT SPREAD FORRELIABLE OPERATION VERY HIGH SWITCHING SPEEDAPPLICATIONS: ELECTRONIC BALLASTS FORFLUORESCENT LIGHTING SWITCH MODE POWER SUPPLIESSOT-82DESCRIPTION The device is

 9.2. Size:424K  jiejie micro
 jmtk130p04a.pdf pdf_icon

TK130F06K3

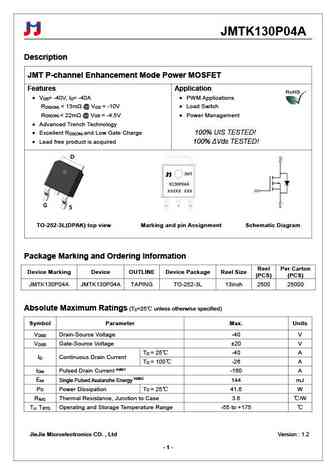

JMTK130P04ADescriptionJMT P-channel Enhancement Mode Power MOSFETFeatures Application V = -40V, I = -40A PWM ApplicationsDS DR
