All MOSFET. AP2310AGN-HF Datasheet



AP2310AGN-HF MOSFET. Datasheet pdf. Equivalent

Type Designator: AP2310AGN-HF

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 1.38 W

Maximum Drain-Source Voltage |Vds|: 65 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Drain Current |Id|: 3 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 6 nS

Drain-Source Capacitance (Cd): 35 pF

Maximum Drain-Source On-State Resistance (Rds): 0.08 Ohm

Package: SOT23

AP2310AGN-HF Transistor Equivalent Substitute - MOSFET Cross-Reference Search

AP2310AGN-HF Datasheet (PDF)

1.1. ap2310agn-hf.pdf Size:58K _a-power

AP2310AGN-HF
AP2310AGN-HF

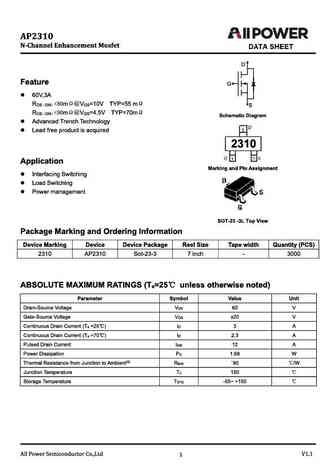

AP2310AGN-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Ў Simple Drive Requirement BVDSS 65V D Ў Small Package Outline RDS(ON) 80m? Ў Surface Mount Device ID 3A S Ў RoHS Compliant & Halogen-Free SOT-23 G D Description AP2310A series are from Advanced Power innovated design and silicon process technology to achieve the lowest pos

4.1. ap2310gg-hf.pdf Size:56K _a-power

AP2310AGN-HF
AP2310AGN-HF

AP2310GG-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Ў Lower Gate Charge BVDSS 60V D Ў Fast Switching Characteristic RDS(ON) 90m? Ў Simple Drive Requirement ID 2.7A G Ў RoHS Compliant & Halogen-Free S D Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, S ruggedized

4.2. ap2310gn-hf.pdf Size:94K _a-power

AP2310AGN-HF
AP2310AGN-HF

AP2310GN-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Ў Simple Drive Requirement BVDSS 60V D Ў Small Package Outline RDS(ON) 90m? Ў Surface Mount Device ID 3A S Ў RoHS Compliant SOT-23 G D Description Advanced Power MOSFETs utilized advanced processing techniques to achieve the lowest possible on-resistance, extremely efficient

4.3. ap2310gk-hf.pdf Size:49K _a-power

AP2310AGN-HF
AP2310AGN-HF

AP2310GK-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Ў Simple Drive Requirement BVDSS 60V Ў Ў Ў D Ў Lower Gate Charge RDS(ON) 90m? Ў Ў Ў S Ў Fast Switching Characteristic ID 4.1A Ў Ў Ў D Ў RoHS Compliant & Halogen-Free Ў Ў Ў SOT-223 G Description D Advanced Power MOSFETs from APEC provide the designer

4.4. ap2310cgn-hf.pdf Size:93K _a-power

AP2310AGN-HF
AP2310AGN-HF

AP2310CGN-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Ў Simple Drive Requirement BVDSS 60V D Ў Small Package Outline RDS(ON) 75m? Ў Surface Mount Device ID 3.2A S Ў Halogen Free & RoHS Compliant Product SOT-23 G D Description Advanced Power MOSFETs utilized advanced processing techniques to achieve the lowest possible on-resis

Datasheet: 2SK3929-01MR , 2SK3931-01 , 2SK3932-01MR , 2SK3936 , AP2308GEN-HF , AP2309AGN-HF , AP2309GEN-HF , AP2309GN-HF , IRFP260M , AP2310CGN-HF , AP2310GG-HF , AP2310GK-HF , AP2310GN-HF , AP2311GK-HF , AP2311GN-HF , AP2312GN , AP2313GN-HF .




AP2310AGN-HF
  AP2310AGN-HF
  AP2310AGN-HF
  AP2310AGN-HF

AP2310AGN-HF
  AP2310AGN-HF
  AP2310AGN-HF
  AP2310AGN-HF
