AP9434GM-HF Specs and Replacement
Type Designator: AP9434GM-HF
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 2.5 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V
|Id| ⓘ - Maximum Drain Current: 8 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 10 nS
Cossⓘ -
Output Capacitance: 90 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0225 Ohm
Package: SO-8
- MOSFET ⓘ Cross-Reference Search
AP9434GM-HF datasheet
..1. Size:96K ape
ap9434gm-hf.pdf
AP9434GM-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Capable of 1.8V Gate Drive BVDSS 30V D D D Lower Gate Charge RDS(ON) 22.5m D Fast Switching Characteristic ID 8A G S RoHS Compliant & Halogen-Free S S SO-8 Description D AP9434 series are from Advanced Power innovated design and silicon process technol... See More ⇒
6.1. Size:167K ape
ap9434gm.pdf
AP9434GM-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Capable of 1.8V Gate Drive BVDSS 30V D D D Lower Gate Charge RDS(ON) 22.5m D Fast Switching Characteristic ID 8A G S RoHS Compliant & Halogen-Free S S SO-8 D Description AP9434 series are from ... See More ⇒
9.1. Size:94K ape
ap9430gh-hf.pdf
AP9430GH-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low On-resistance D BVDSS 30V Simple Drive Requirement RDS(ON) 4m Fast Switching Characteristic ID 75A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the G designer with the best combination of fast switching, D S ... See More ⇒
9.2. Size:169K ape
ap9435gm-hf.pdf
AP9435GM-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -30V D D D Low Gate Charge RDS(ON) 50m D Fast Switching ID -5.3A G S RoHS Compliant S S SO-8 Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized devic... See More ⇒
9.3. Size:98K ape
ap9435gh ap9435gj.pdf
AP9435GH/J RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge BVDSS -30V D Simple Drive Requirement RDS(ON) 50m Fast Switching ID - 20A G S Description G D Advanced Power MOSFETs utilized advanced processing techniques to S TO-252(H) achieve the lowest possible on-resistance, extremely efficient and cost- ... See More ⇒
9.4. Size:95K ape
ap9435gp-hf.pdf
AP9435GP-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge BVDSS -30V D Simple Drive Requirement RDS(ON) 50m Fast Switching Characteristic ID - 15A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized... See More ⇒
9.5. Size:177K ape
ap9435gm.pdf
AP9435GM RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -30V D D D Low Gate Charge RDS(ON) 50m D Fast Switching ID -5.3A G S S S SO-8 Description D The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on... See More ⇒
9.6. Size:97K ape
ap9430agyt-hf.pdf
AP9430AGYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement D BVDSS 30V Small Size & Lower Profile RDS(ON) 4.5m RoHS Compliant & Halogen-Free ID 21A G S D D D Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device desig... See More ⇒
9.7. Size:95K ape
ap9435gk-hf.pdf
AP9435GK-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -30V D Low Gate Charge RDS(ON) 50m Fast Switching Characteristic ID -6A S D RoHS Compliant & Halogen-Free SOT-223 G Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switchi... See More ⇒
9.8. Size:94K ape
ap9435gp.pdf
AP9435GP RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge BVDSS -30V D Simple Drive Requirement RDS(ON) 50m Fast Switching ID - 15A G S Description Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effecti... See More ⇒
9.9. Size:99K ape
ap9435gj-hf.pdf
AP9435GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge BVDSS -30V D Simple Drive Requirement RDS(ON) 50m Fast Switching Characteristic ID - 20A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs utilized advanced processing techniques to G D S TO-252(H) achieve the lowest poss... See More ⇒
9.10. Size:94K ape
ap9431gh-hf.pdf
AP9431GH-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower Gate Charge D BVDSS 55V Simple Drive Requirement RDS(ON) 24m Fast Switching Characteristic ID 23.5A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the G D designer with the best combination of fast switching, ... See More ⇒
9.11. Size:96K ape
ap9432gyt-hf.pdf
AP9432GYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D Small Size & Lower Profile RDS(ON) 12m RoHS Compliant & Halogen-Free ID 14A G S D D Description D D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device desig... See More ⇒
9.12. Size:57K ape
ap9435gg-hf.pdf
AP9435GG-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge BVDSS -30V D Fast Switching Characteristic RDS(ON) 50m Single Drive Requirement ID - 4.2A G RoHS Compliant & Halogen-Free S Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, rugge... See More ⇒
9.13. Size:95K ape
ap9430gyt-hf.pdf
AP9430GYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D Small Size & Lower Profile RDS(ON) 4.5m RoHS Compliant & Halogen-Free ID 23A G S D D Description D D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device desig... See More ⇒
9.14. Size:2952K cn vbsemi
ap9435gk.pdf
AP9435GK www.VBsemi.tw P-Channel 35 V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( ) ID (A)d Qg (Typ.) Definition 0.050 at VGS = - 10 V - 6.2 TrenchFET Power MOSFET - 35 9.8 nC 0.060 at VGS = - 4.5 V - 5.1 100 % Rg Tested 100 % UIS Tested Compliant to RoHS Directive 2002/95/EC S APPLICATIONS Load ... See More ⇒
9.15. Size:850K cn vbsemi
ap9435k.pdf
AP9435K www.VBsemi.tw P-Channel 35 V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( ) ID (A)d Qg (Typ.) Definition 0.050 at VGS = - 10 V - 6.2 TrenchFET Power MOSFET - 35 9.8 nC 0.060 at VGS = - 4.5 V - 5.1 100 % Rg Tested 100 % UIS Tested Compliant to RoHS Directive 2002/95/EC S APPLICATIONS Load S... See More ⇒
9.16. Size:805K cn vbsemi
ap9435gm.pdf
AP9435GM www.VBsemi.tw P-Channel 30-V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( )ID (A) Definition 0.042 at VGS = - 10 V - 5.8 TrenchFET Power MOSFET 0.055 at VGS = - 6 V - 30 - 5.0 Compliant to RoHS Directive 2002/95/EC 0.060 at VGS = - 4.5 V - 4.4 S SO-8 G SD 1 8 S D 2 7 3 6 SD G D 4 5 D Top ... See More ⇒
9.17. Size:833K cn vbsemi
ap9435gg.pdf
AP9435GG www.VBsemi.tw P-Channel 30-V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( ) ID (A)d Qg (Typ.) Definition 0.050 at VGS = - 10 V - 7.6 TrenchFET Power MOSFET - 30 13 nC 100 % Rg Tested 0.056 at VGS = - 4.5 V - 6.0 APPLICATIONS Load Switch Battery Switch D S G G D S D P-Channel MOSFET ABS... See More ⇒
9.18. Size:880K cn vbsemi
ap9435gh.pdf
AP9435GH www.VBsemi.tw P-Channel 30-V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free VDS (V) RDS(on) ( ) ID (A)d Qg (Typ.) TrenchFET Power MOSFET 0.033 at VGS = - 10 V - 26 100 % Rg Tested RoHS - 30 19 nC COMPLIANT 100 % UIS Tested 0.046 at VGS = - 4.5 V - 21 APPLICATIONS Load Switch Notebook Adaptor Switch S TO-252 G G D S D Top View P-Ch... See More ⇒

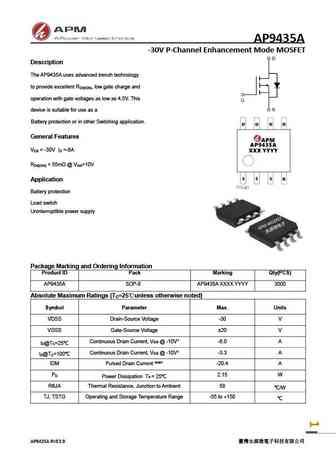

9.19. Size:1280K cn apm
ap9435a.pdf
AP9435A -30V P-Channel Enhancement Mode MOSFET Description The AP9435A uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-6A DS D R ... See More ⇒
