AP9567GJ-HF Specs and Replacement

Type Designator: AP9567GJ-HF

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 34.7 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V

|Id| ⓘ - Maximum Drain Current: 22 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 30 nS

Cossⓘ - Output Capacitance: 140 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.05 Ohm

Package: TO-251

AP9567GJ-HF substitution

- MOSFET ⓘ Cross-Reference Search



AP9567GJ-HF datasheet

 ..1. Size:237K  ape
 ap9567gh-hf ap9567gj-hf.pdf pdf_icon

AP9567GJ-HF

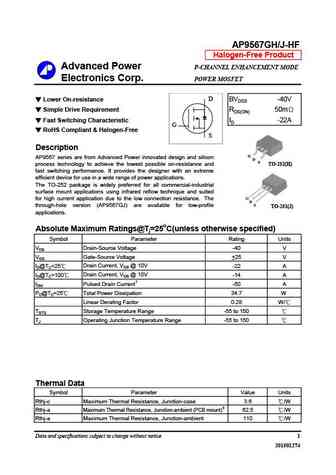

AP9567GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower On-resistance D BVDSS -40V Simple Drive Requirement RDS(ON) 50m Fast Switching Characteristic ID -22A G RoHS Compliant & Halogen-Free S Description G AP9567 series are from Advanced Power innovated design and silicon D S process technology to achieve... See More ⇒

 7.1. Size:237K  ape
 ap9567gh.pdf pdf_icon

AP9567GJ-HF

AP9567GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Lower On-resistance D BVDSS -40V Simple Drive Requirement RDS(ON) 50m Fast Switching Characteristic ID -22A G RoHS Compliant & Halogen-Free S Description G AP9567 series are from Advanced Power innovated design and silicon D S process technology to achieve... See More ⇒

 7.2. Size:101K  ape
 ap9567gh-hf.pdf pdf_icon

AP9567GJ-HF

AP9567GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Lower On-resistance BVDSS -40V Simple Drive Requirement RDS(ON) 50m Fast Switching Characteristic ID -22A G RoHS Compliant & Halogen-Free S Description G D The TO-252 package is widely preferred for all commercial-industrial S TO-252(H) surface mount a... See More ⇒

 7.3. Size:70K  ape
 ap9567gm.pdf pdf_icon

AP9567GJ-HF

AP9567GM Pb Free Plating Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS -40V D D Low On-resistance D RDS(ON) 50m D Fast Switching Characteristic ID -6A G S S SO-8 S Description D The Advanced Power MOSFETs from APEC provide the designer with the best c... See More ⇒

SHOW MORE

Detailed specifications: AP9565BGJ-HF, AP9565BGM-HF, AP9565GEH, AP9565GEJ, AP9565GEM, AP9566GH, AP9566GM, AP9567GH-HF, IRF9540, AP9567GM, AP9569GH-HF, AP9569GJ-HF, AP9569GM, AP9571GP-HF, AP9571GS-HF, AP9573GH-HF, 2SK2333
