All MOSFET. 4N65 Datasheet



4N65 MOSFET. Datasheet pdf. Equivalent

Type Designator: 4N65

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 106 W

Maximum Drain-Source Voltage |Vds|: 650 V

Maximum Gate-Source Voltage |Vgs|: 30 V

Maximum Drain Current |Id|: 4 A

Maximum Junction Temperature (Tj): 150 °C

Rise Time (tr): 100 nS

Drain-Source Capacitance (Cd): 70 pF

Maximum Drain-Source On-State Resistance (Rds): 2.4 Ohm

Package: TO-220 TO-262 TO-263 TO-251 TO-252 TO-220F DFN-8

4N65 Transistor Equivalent Substitute - MOSFET Cross-Reference Search



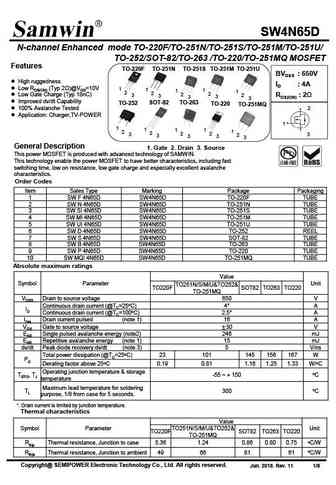

4N65 Datasheet (PDF)

..1. 4n65.pdf Size:376K _utc

4N65 4N65

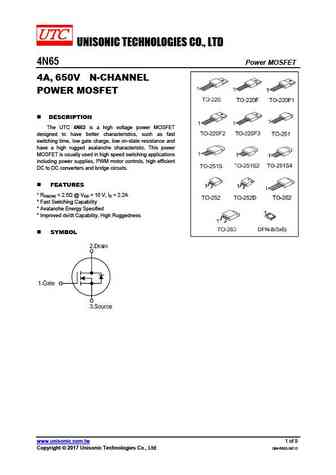

UNISONIC TECHNOLOGIES CO., LTD 4N65 Power MOSFET 4A, 650V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 4N65 is a high voltage power MOSFET designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristic. This power MOSFET is usually used in high speed switching applications includi

..2. 4n65.pdf Size:1550K _umw-ic

4N65 4N65

RUMWUMW 4N65UMW 4N65N- MOSN- MOSN- MOSN- MOS Tc=25CTc=25CTc=25CTc=25CTO-220/220FTO-220/220FTO-220/220FTO-220/220FTO-220/220FTO-220/220FAbsolute Maximum Ratings Tc=25CAbsolute Maximum Ratings Tc=25CAbsolute Maximum Ratings Tc=25Absolute Maximum RatingsTc=25CC

..3. 4n65.pdf Size:229K _inchange_semiconductor

4N65 4N65

isc N-Channel MOSFET Transistor 4N65DESCRIPTIONDrain Current I = 4A@ T =25D CDrain Source Voltage-: V = 650V(Min)DSSFast Switching SpeedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for high efficiency switch mode power supply.ABSOLUTE MAXIMUM RATINGS(T =25)CSYMBOL PARAMETER VALUE UNITV Drain-S

..4. 4n65 4n65f 4n65b 4n65h 4n65g 4n65d.pdf Size:868K _chongqing_pingwei

4N65 4N65

0.1. dg4n65.pdf Size:1254K _1

4N65 4N65

DG4N65V1.0N N-CHANNE ENHANCEMENT MODE MOSFET General Description DG4N65N

0.2. stb34n65m5 stf34n65m5 stfi34n65m5 stp34n65m5 stw34n65m5.pdf Size:1315K _st

4N65 4N65

STB34N65M5, STF34N65M5, STFI34N65M5,STI34N65M5, STP34N65M5, STW34N65M5N-channel 650 V, 0.09 typ., 28 A MDmesh V Power MOSFET in a D2PAK, TO-220FP, I2PAKFP, I2PAK, TO-220 and TO-247 packagesDatasheet - production dataFeaturesTABVDSS @ RDS(on) Order codes ID2TJmax max313STB34N65M52D2PAK1TO-220FPSTF34N65M5I2PAKFPSTFI34N65M5 TABTAB710 V

 0.3. stb34n65m5 sti34n65m5 stp34n65m5 stw34n65m5.pdf Size:1424K _st

4N65 4N65

STB34N65M5, STI34N65M5, STP34N65M5, STW34N65M5N-channel 650 V, 0.09 typ., 28 A MDmesh V Power MOSFETs in D2PAK, I2PAK, TO-220 and TO-247 packagesDatasheet - production dataFeatures TABTABOrder codes VDS @ TJmax RDS(on) max ID231321STB34N65M5D2PAKI2PAKSTI34N65M5710 V 0.11 28 ATABSTP34N65M5STW34N65M5 Worldwide best RDS(on) * area332

0.4. stl34n65m5.pdf Size:1102K _st

4N65 4N65

STL34N65M5N-channel 650 V, 0.099 typ., 22.5 A MDmesh V Power MOSFET in PowerFLAT 8x8 HV packageDatasheet - production dataFeaturesVDS @ RDS(on) Order code IDS(2) Bottom viewTJmax maxS(2)S(2)STL34N65M5 710 V 0.120 22.5 A(1)G(1)D(3)1. The value is rated according to Rthj-case and limited by package. 100% avalanche testedPowerFLAT 8x8 HV Lo

 0.5. stb24n65m2 stf24n65m2 stp24n65m2.pdf Size:1178K _st

4N65 4N65

STB24N65M2, STF24N65M2, STP24N65M2 N-channel 650 V, 0.185 typ., 16 A MDmesh M2 Power MOSFET in D2PAK, TO-220FP and TO-220 packages Datasheet - production data Features Order codes V R max I DS DS(on) DSTB24N65M2 STF24N65M2 650 V 0.23 16 A STP24N65M2 Extremely low gate charge Excellent output capacitance (C ) profile oss 100% avalanche tested Ze

0.6. tk14n65w5.pdf Size:242K _toshiba

4N65 4N65

TK14N65W5MOSFETs Silicon N-Channel MOS (DTMOS)TK14N65W5TK14N65W5TK14N65W5TK14N65W51. Applications1. Applications1. Applications1. Applications Switching Voltage Regulators2. Features2. Features2. Features2. Features(1) Fast reverse recovery time: trr = 100 ns (typ.)(2) Low drain-source on-resistance: RDS(ON) = 0.25 (typ.) by using Super Junction Struc

0.7. tk14n65w.pdf Size:245K _toshiba

4N65 4N65

TK14N65WMOSFETs Silicon N-Channel MOS (DTMOS)TK14N65WTK14N65WTK14N65WTK14N65W1. Applications1. Applications1. Applications1. Applications Switching Voltage Regulators2. Features2. Features2. Features2. Features(1) Low drain-source on-resistance: RDS(ON) = 0.22 (typ.) by used to Super Junction Structure : DTMOS(2) Easy to control Gate switching(3) En

0.8. sihg24n65e.pdf Size:179K _vishay

4N65 4N65

SiHG24N65Ewww.vishay.comVishay SiliconixE Series Power MOSFETFEATURESPRODUCT SUMMARY Low Figure-of-Merit (FOM) Ron x QgVDS (V) at TJ max. 700 Low Input Capacitance (Ciss)RDS(on) max. at 25 C () VGS = 10 V 0.145 Reduced Switching and Conduction LossesQg max. (nC) 122 Ultra Low Gate Charge (Qg)Qgs (nC) 21 Avalanche Energy Rated (UIS)Qgd (nC) 37

0.9. sihp24n65e.pdf Size:209K _vishay

4N65 4N65

SiHP24N65Ewww.vishay.comVishay SiliconixE Series Power MOSFETFEATURESPRODUCT SUMMARY Low Figure-of-Merit (FOM) Ron x QgVDS (V) at TJ max. 700 Low Input Capacitance (Ciss)RDS(on) max. at 25 C () VGS = 10 V 0.145 Reduced Switching and Conduction LossesQg max. (nC) 122 Ultra Low Gate Charge (Qg)Qgs (nC) 21 Avalanche Energy Rated (UIS)Qgd (nC) 37

0.10. sihg64n65e.pdf Size:147K _vishay

4N65 4N65

SiHG64N65Ewww.vishay.comVishay SiliconixE Series Power MOSFETFEATURESPRODUCT SUMMARY Low figure-of-merit (FOM) Ron x QgVDS (V) at TJ max. 700 Low input capacitance (Ciss)RDS(on) max. at 25 C () VGS = 10 V 0.047 Reduced switching and conduction lossesQg max. (nC) 369 Ultra low gate charge (Qg)Qgs (nC) 66Qgd (nC) 93 Avalanche energy rated (UIS)Co

0.11. sihb24n65e.pdf Size:201K _vishay

4N65 4N65

SiHB24N65Ewww.vishay.comVishay SiliconixE Series Power MOSFETFEATURESPRODUCT SUMMARY Low Figure-of-Merit (FOM) Ron x QgVDS (V) at TJ max. 700 Low Input Capacitance (Ciss)RDS(on) max. at 25 C () VGS = 10 V 0.145 Reduced Switching and Conduction LossesQg max. (nC) 122 Ultra Low Gate Charge (Qg)Qgs (nC) 21 Avalanche Energy Rated (UIS)Qgd (nC) 37

0.12. dmg4n65cti.pdf Size:321K _diodes

4N65 4N65

DMG4N65CTI N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features Low Input Capacitance ID V(BR)DSS RDS(ON) Package High BVDss rating for power application TC = 25C Low Input/Output Leakage Lead-Free Finish; RoHS Compliant (Notes 1 & 2) 650V 3.0@VGS = 10V ITO220-3 4.0 A Halogen and Antimony Free. Green Device (Note 3) Qualified to AEC

0.13. dmg4n65ct.pdf Size:273K _diodes

4N65 4N65

DMG4N65CT N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features Low Input Capacitance ID V(BR)DSS RDS(ON) Package High BVDss rating for power application TC = 25C Low Input/Output Leakage 650V 3.0@VGS = 10V TO220-3 4.0 A Lead-Free Finish; RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. Green Device (Note 3) Qualified to AEC-Q

0.14. ixta4n65x2 ixtp4n65x2 ixty4n65x2.pdf Size:238K _ixys

4N65 4N65

Preliminary Technical InformationX2-Class VDSS = 650VIXTY4N65X2Power MOSFET ID25 = 4AIXTA4N65X2 RDS(on) 850m IXTP4N65X2N-Channel Enhancement ModeTO-252 (IXTY)G SSymbol Test Conditions Maximum Ratings D (Tab)VDSS TJ = 25C to 150C 650 VTO-263 (IXTA)VDGR TJ = 25C to 150C, RGS = 1M 650 VVGSS Continuous 30 VG

0.15. ixfa34n65x2 ixfp34n65x2 ixfh34n65x2.pdf Size:205K _ixys

4N65 4N65

X2-Class HiPerFETTM VDSS = 650VIXFA34N65X2Power MOSFET ID25 = 34AIXFP34N65X2 RDS(on) 100m IXFH34N65X2N-Channel Enhancement ModeTO-263 AA (IXFA)Avalanche RatedFast Intrinsic DiodeGSD (Tab)Symbol Test Conditions Maximum RatingsTO-220AB (IXFP)VDSS TJ = 25C to 150C 650 VVDGR TJ = 25C to 150C, RGS = 1M 650 VVGS

0.16. ixth34n65x2.pdf Size:113K _ixys

4N65 4N65

Advance Technical InformationX2-Class VDSS = 650VIXTH34N65X2Power MOSFET ID25 = 34A RDS(on) 105m N-Channel Enhancement ModeAvalanche RatedTO-247GDSymbol Test Conditions Maximum RatingsSD (Tab)VDSS TJ = 25C to 150C 650 VG = Gate D = DrainVDGR TJ = 25C to 150C, RGS = 1M 650 VS = Source Tab = DrainVGSS Contin

0.17. ixtp34n65x2 ixth34n65x2.pdf Size:283K _ixys

4N65 4N65

X2-Class VDSS = 650VIXTP34N65X2Power MOSFET ID25 = 34AIXTH34N65X2 RDS(on) 96m N-Channel Enhancement ModeAvalanche RatedTO-220(IXTP)Symbol Test Conditions Maximum RatingsGVDSS TJ = 25C to 150C 650 V DSD (Tab)VDGR TJ = 25C to 150C, RGS = 1M 650 VTO-247VGSS Continuous 30 V(IXTH)VGSM Transient 40 VID

0.18. ixty4n65x2 ixta4n65x2 ixtp4n65x2.pdf Size:313K _ixys

4N65 4N65

X2-Class VDSS = 650VIXTY4N65X2Power MOSFET ID25 = 4AIXTA4N65X2 RDS(on) 850m IXTP4N65X2N-Channel Enhancement ModeTO-252 (IXTY)G SSymbol Test Conditions Maximum Ratings D (Tab)VDSS TJ = 25C to 150C 650 VTO-263 (IXTA)VDGR TJ = 25C to 150C, RGS = 1M 650 VVGSS Continuous 30 VGVGSM Transient 40 VSID25 TC

0.19. ixth64n65x.pdf Size:154K _ixys

4N65 4N65

Preliminary Technical InformationX-Class VDSS = 650VIXTH64N65XPower MOSFET ID25 = 64A RDS(on) 51m N-Channel Enhancement ModeTO-247 (IXTH)Symbol Test Conditions Maximum RatingsVDSS TJ = 25C to 150C 650 VVDGR TJ = 25C to 150C, RGS = 1M 650 VVGSS Continuous 30 VGD TabVGSM Transient 40 VSID25 TC = 25C64

0.20. ixfp34n65x2m.pdf Size:138K _ixys

4N65 4N65

Preliminary Technical InformationX2-Class HiperFETTM VDSS = 650VIXFP34N65X2MPower MOSFET ID25 = 34A RDS(on) 100m (Electrically Isolated Tab)N-Channel Enhancement Mode OVERMOLDEDTO-220Symbol Test Conditions Maximum RatingsVDSS TJ = 25C to 150C 650 VGIsolated TabDVDGR TJ = 25C to 150C, RGS = 1M 650 VSVGSS Contin

0.21. ixfp34n65x2 ixfh34n65x2.pdf Size:282K _ixys

4N65 4N65

X2-Class HiPerFETTM VDSS = 650VIXFP34N65X2Power MOSFET ID25 = 34AIXFH34N65X2 RDS(on) 100m N-Channel Enhancement ModeAvalanche RatedTO-220(IXFP)Symbol Test Conditions Maximum RatingsGDVDSS TJ = 25C to 150C 650 VSD (Tab)VDGR TJ = 25C to 150C, RGS = 1M 650 VTO-247VGSS Continuous 30 V(IXFH)VGSM Transien

0.22. ixtp24n65x2m.pdf Size:118K _ixys

4N65 4N65

Advance Technical InformationX2-Class VDSS = 650VIXTP24N65X2MPower MOSFET ID25 = 8.5A RDS(on) 145m (Electrically Isolated Tab)N-Channel Enhancement ModeOVERMOLDED TO-220Symbol Test Conditions Maximum RatingsVDSS TJ = 25C to 150C 650 VVDGR TJ = 25C to 150C, RGS = 1M 650 VGDSVGSS Continuous 30 VVGSM Transient

0.23. mcd04n65.pdf Size:428K _mcc

4N65 4N65

0.24. mcp04n65.pdf Size:430K _mcc

4N65 4N65

0.25. mcpf04n65.pdf Size:593K _mcc

4N65 4N65

0.26. mcu04n65.pdf Size:487K _mcc

4N65 4N65

0.27. 4n65k.pdf Size:332K _utc

4N65 4N65

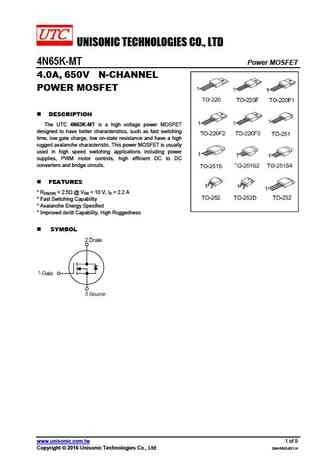

UNISONIC TECHNOLOGIES CO., LTD 4N65K Power MOSFET 4A, 650V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 4N65K is a high voltage power MOSFET designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristic. This power MOSFET is usually used in high speed switching applications includi
