All MOSFET. 4N60 Datasheet



4N60 MOSFET. Datasheet pdf. Equivalent


   Type Designator: 4N60
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Maximum Power Dissipation (Pd): 106 W
   Maximum Drain-Source Voltage |Vds|: 600 V
   Maximum Gate-Source Voltage |Vgs|: 30 V
   Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V
   Maximum Drain Current |Id|: 4 A
   Maximum Junction Temperature (Tj): 150 °C
   Total Gate Charge (Qg): 80 nC
   Rise Time (tr): 80 nS
   Drain-Source Capacitance (Cd): 80 pF
   Maximum Drain-Source On-State Resistance (Rds): 2.2 Ohm
   Package: TO-263 TO-262 TO-251 TO-252 TO-220 TO-220F DFN-8

 4N60 Transistor Equivalent Substitute - MOSFET Cross-Reference Search



4N60 Datasheet (PDF)

 ..1. Size:384K  utc
4n60.pdf

4N60 4N60

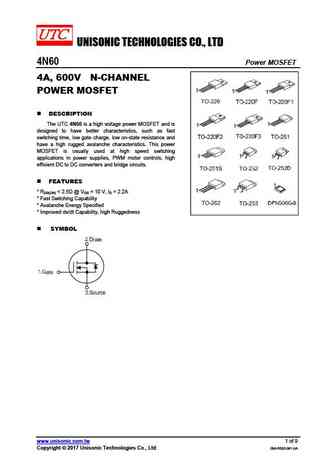

UNISONIC TECHNOLOGIES CO., LTD 4N60 Power MOSFET 4A, 600V N-CHANNEL POWER MOSFET DESCRIPTION The UTC 4N60 is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications
