AOT1606L Datasheet and Replacement
Type Designator: AOT1606L
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Pd ⓘ - Maximum Power Dissipation: 417 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 178 A
Tj ⓘ - Maximum Junction Temperature: 175 °C
tr ⓘ - Rise Time: 31 nS
Cossⓘ - Output Capacitance: 872 pF
Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0063 Ohm
Package: TO-220
AOT1606L substitution
AOT1606L Datasheet (PDF)
aot1606l.pdf

AOT1606L/AOB1606L60V N-Channel Rugged Planar MOSFETGeneral Description Product SummaryVDS60VThe AOT1606L/AOB1606L uses a robust technology thatis designed to provide efficient and reliable power ID (at VGS=10V) 178Aconversion even in the most demanding applications, RDS(ON) (at VGS=10V)
aot1606l.pdf

isc N-Channel MOSFET Transistor AOT1606LFEATURESDrain Current I = 178A@ T =25D CDrain Source Voltage-: V = 60V(Min)DSSStatic Drain-Source On-Resistance: R = 6m(Max)DS(on)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRIPTIONDesigned for use in switch mode power supplies and generalpurpos

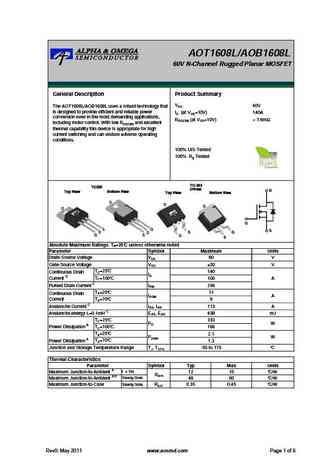

aot1608l.pdf

AOT1608L/AOB1608L60V N-Channel Rugged Planar MOSFETGeneral Description Product SummaryVDS60VThe AOT1608L/AOB1608L uses a robust technology thatis designed to provide efficient and reliable power ID (at VGS=10V) 140Aconversion even in the most demanding applications, RDS(ON) (at VGS=10V)

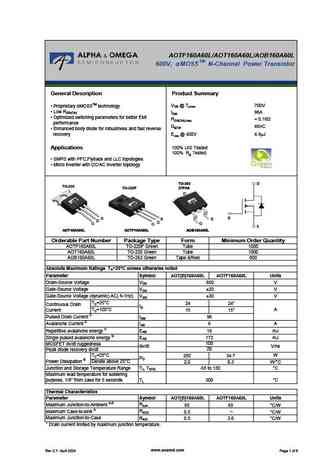

aot160a60l.pdf

AOTF160A60L/AOT160A60L/AOB160A60LTM600V, a MOS5 N-Channel Power TransistorGeneral Description Product Summary VDS @ Tj,max 700V Proprietary MOS5TM technology Low RDS(ON) IDM 96A Optimized switching parameters for better EMI RDS(ON),max
