AP6P090J Specs and Replacement
Type Designator: AP6P090J
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 36.7 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 15 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 21 nS
Cossⓘ -
Output Capacitance: 110 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.09 Ohm
Package: TO251
- MOSFET ⓘ Cross-Reference Search
AP6P090J datasheet
..1. Size:169K ape
ap6p090j.pdf
AP6P090J Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description AP6P090 series are from Advanced Power innovated design and G D silicon process technology to achieve the low... See More ⇒
7.1. Size:204K ape
ap6p090h.pdf
AP6P090H Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description AP6P090 series are from Advanced Power innovated design and G D S silicon process technology to achieve the l... See More ⇒
7.2. Size:186K ape
ap6p090m.pdf
AP6P090M Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 90m Fast Switching Characteristic ID3 -4A G RoHS Compliant & Halogen-Free S Description D D AP6P090 series are from Advanced Power innovated design and silicon D D process technology to achieve t... See More ⇒
9.1. Size:181K ape
ap6p064i.pdf
AP6P064I Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 64m Fast Switching Characteristic ID4 -17A G RoHS Compliant & Halogen-Free S Description AP6P064 series are from Advanced Power innovated design and silicon process technology to achieve the lowest p... See More ⇒
9.2. Size:168K ape
ap6p064j.pdf
AP6P064J Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 64m Fast Switching Characteristic ID -17A G RoHS Compliant & Halogen-Free S Description AP6P064 series are from Advanced Power innovated design and G D silicon process technology to achieve the low... See More ⇒
9.3. Size:182K ape
ap6p070i.pdf
AP6P070I Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID4 -16A G RoHS Compliant & Halogen-Free S Description AP6P070 series are from Advanced Power innovated design and silicon process technology to achieve the lowest p... See More ⇒
9.4. Size:204K ape
ap6p064h.pdf
AP6P064H Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 64m Fast Switching Characteristic ID -17A G RoHS Compliant & Halogen-Free S Description AP6P064 series are from Advanced Power innovated design and G D S silicon process technology to achieve the l... See More ⇒
9.5. Size:205K ape
ap6p070h.pdf
AP6P070H Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free S Description AP6P070 series are from Advanced Power innovated design and G D S silicon process technology to achieve the l... See More ⇒
9.6. Size:165K ape
ap6p070p.pdf
AP6P070P Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free S Description AP6P070 series are from Advanced Power innovated design and silicon process technology to achieve the lowest po... See More ⇒
9.7. Size:67K ape
ap6p025m.pdf
AP6P025M Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 25m Fast Switching Characteristic ID3 -7.3A G RoHS Compliant & Halogen-Free S Description D D AP6P025 series are from Advanced Power innovated design and silicon D D process technology to achieve... See More ⇒
9.8. Size:204K ape
ap6p025h.pdf
AP6P025H Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 25m Fast Switching Characteristic ID -40A G RoHS Compliant & Halogen-Free S Description AP6P025 series are from Advanced Power innovated design and G D silicon process technology to achieve the low... See More ⇒
9.9. Size:177K ape
ap6p025s.pdf
AP6P025S Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 25m Fast Switching Characteristic ID -40A G RoHS Compliant & Halogen-Free S Description AP6P025 series are from Advanced Power innovated design and silicon process technology to achieve the lowest po... See More ⇒
9.10. Size:165K ape
ap6p025p.pdf
AP6P025P Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 25m Fast Switching Characteristic ID -40A G RoHS Compliant & Halogen-Free S Description AP6P025 series are from Advanced Power innovated design and silicon process technology to achieve the lowest po... See More ⇒
9.11. Size:144K ape
ap6p064jb.pdf
AP6P064JB Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 64m Fast Switching Characteristic ID -17A G RoHS Compliant & Halogen-Free S Description AP6P064 series are from Advanced Power innovated design and silicon process technology to achieve the lowest p... See More ⇒
9.12. Size:71K ape
ap6p070s.pdf
AP6P070S Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 70m Fast Switching Characteristic ID -16A G RoHS Compliant & Halogen-Free S Description AP6P070 series are from Advanced Power innovated design and silicon process technology to achieve the lowest po... See More ⇒
9.13. Size:182K ape
ap6p025i.pdf
AP6P025I Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET 100% Rg & UIS Test D BVDSS -60V Simple Drive Requirement RDS(ON) 25m Fast Switching Characteristic ID -26.8A G RoHS Compliant & Halogen-Free S Description AP6P025 series are from Advanced Power innovated design and silicon process technology to achieve the lowest ... See More ⇒
9.14. Size:1170K cn apm
ap6p03si.pdf
AP6P03SI -30V P-Channel Enhancement Mode MOSFET Description The AP6P03SI uses advanced Trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -30V I =-6A DS D R ... See More ⇒
9.15. Size:1467K cn apm
ap6p06mi.pdf
AP6P06MI -60V P-Channel Enhancement Mode MOSFET Description The AP6P06MI uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -60V I =-6A DS D R ... See More ⇒
9.16. Size:1762K cn apm

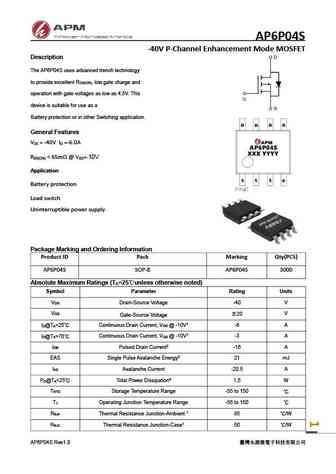

ap6p04s.pdf
AP6P04S -40V P-Channel Enhancement Mode MOSFET Description The AP6P04S uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -40V I =-6.0A DS D R ... See More ⇒
