AP4820AGYT Datasheet. Specs and Replacement

Type Designator: AP4820AGYT  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 3.13 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 30 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 15 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 12 nS

Cossⓘ - Output Capacitance: 230 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0085 Ohm

Package: PMPAK3X3

  📄📄 Copy

AP4820AGYT substitution

- MOSFET ⓘ Cross-Reference Search



AP4820AGYT datasheet

 ..1. Size:117K  ape
 ap4820agyt.pdf pdf_icon

AP4820AGYT

AP4820AGYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D Small Size & Lower Profile RDS(ON) 8.5m RoHS Compliant & Halogen-Free ID 15A G D S D D Description D AP4820A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-... See More ⇒

 0.1. Size:56K  ape
 ap4820agyt-hf.pdf pdf_icon

AP4820AGYT

AP4820AGYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D Small Size & Lower Profile RDS(ON) 8.5m RoHS Compliant & Halogen-Free ID 15A G D S D D Description D AP4820A series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-... See More ⇒

 8.1. Size:59K  ape
 ap4820gyt-hf.pdf pdf_icon

AP4820AGYT

AP4820GYT-HF Halogen-Free Product Advanced Power N-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 30V D Small Size & Lower Profile RDS(ON) 9m RoHS Compliant & Halogen-Free ID 15A G D S D D Description D Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design,... See More ⇒

 9.1. Size:1324K  1

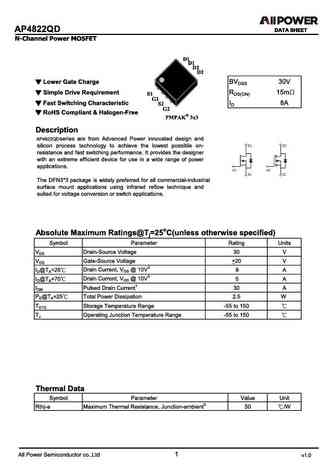

 ap4822qd.pdf pdf_icon
