FS16SM-10 Specs and Replacement

Type Designator: FS16SM-10

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 150 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 500 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 16 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 50 nS

Cossⓘ - Output Capacitance: 230 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.56 Ohm

Package: TO-3P

FS16SM-10 substitution

- MOSFET ⓘ Cross-Reference Search



FS16SM-10 datasheet

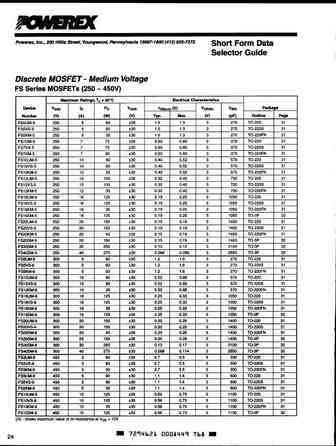

 8.1. Size:449K  powerex
 fs12um fs12vs fs12km fs16um fs16vs fskm fs16sm fs20um fs20vs fs20km fs20sm.pdf pdf_icon

FS16SM-10

... See More ⇒
