AM4362N PDF and Equivalents Search



AM4362N Specs and Replacement


   Type Designator: AM4362N
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 3.1 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 19 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 10 nS
   Cossⓘ - Output Capacitance: 326 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.006 Ohm
   Package: SO-8


 AM4362N substitution

   - MOSFET ⓘ Cross-Reference Search

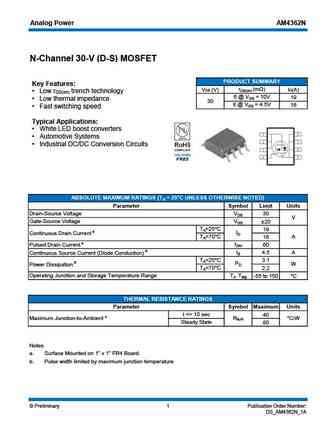

AM4362N datasheet

 ..1. Size:317K  analog power
 am4362n.pdf pdf_icon

AM4362N

Analog Power AM4362N N-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY Key Features rDS(on) (m ) VDS (V) ID(A) Low r trench technology DS(on) 6 @ VGS = 10V 19 Low thermal impedance 30 8 @ VGS = 4.5V 16 Fast switching speed Typical Applications White LED boost converters Automotive Systems Industrial DC/DC Conversion Circuits ABSOLUTE MAXIMUM RATIN... See More ⇒

Detailed specifications: AM40P03-20D , AM40P03-20I , AM40P03-34D , AM40P04-20DE , AM40P06-135P , AM40P10-200P , AM40P20-150PCFM , AM4302N , IRF2807 , AM4380N , AM4390N , AM4392N , AM4394N , AM4396N , AM4400N , AM4400NE , AM4401P .
