VN0106N3 MOSFET Datasheet: N-Ch, 60V, 2A. Full specification with pinout and replacement list

VN0106N3 Specs and Replacement

Type Designator: VN0106N3

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Id| ⓘ - Maximum Drain Current: 2 A

Electrical Characteristics

tr ⓘ - Rise Time: 5 nS

Cossⓘ - Output Capacitance: 20 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 3 Ohm

Package: TO-92

VN0106N3 substitution

- MOSFET ⓘ Cross-Reference Search

VN0106N3 datasheet

..1. Size:62K njs

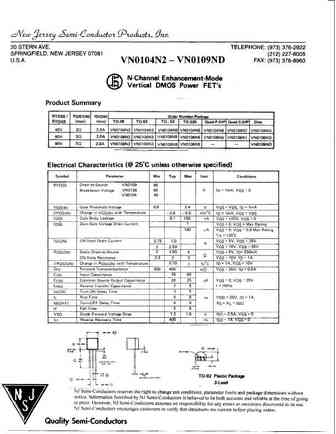

vn0104n2 vn0104n3 vn0104n5 vn0104n6 vn0104n7 vn0104n9 vn0104nd vn0106n2 vn0106n3 vn0106n5 vn0106n6 vn0106n7 vn0106n9 vn0106nd vn0109n2 vn0109n3 vn0109n5 vn0109n9 vn0109nd.pdf pdf_icon

... See More ⇒

8.1. Size:51K njs
zvn0106a.pdf pdf_icon

... See More ⇒

8.2. Size:587K supertex
vn0106.pdf pdf_icon

Supertex inc. VN0106 N-Channel Enhancement-Mode Vertical DMOS FET Features General Description Free from secondary breakdown This enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex s well-proven, silicon- Low power drive requirement gate manufacturing process. This combination produces a Ease of paralleling device with the power... See More ⇒

9.1. Size:588K supertex
vn0104.pdf pdf_icon

Supertex inc. VN0104 N-Channel Enhancement-Mode Vertical DMOS FET Features General Description Free from secondary breakdown This enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex s well-proven, silicon- Low power drive requirement gate manufacturing process. This combination produces a Ease of paralleling device with the power... See More ⇒
