VN3515L Datasheet and Replacement


   Type Designator: VN3515L
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 1 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 350 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 0.15 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 20 nS
   Cossⓘ - Output Capacitance: 30 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 15 Ohm
   Package: TO-92


 VN3515L substitution

   - MOSFET ⓘ Cross-Reference Search

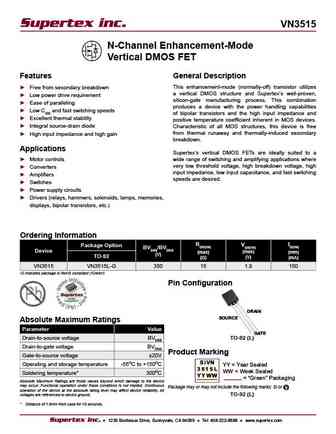

VN3515L Datasheet (PDF)

 ..1. Size:341K  supertex
 vn3515 vn3515l.pdf pdf_icon

VN3515L

VN3515N-Channel Enhancement-ModeVertical DMOS FETFeatures General DescriptionThis enhancement-mode (normally-off) transistor utilizes Free from secondary breakdowna vertical DMOS structure and Supertexs well-proven, Low power drive requirementsilicon-gate manufacturing process. This combination Ease of parallelingproduces a device with the power handling capab
