VN4012L Specs and Replacement

Type Designator: VN4012L

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 400 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 0.16 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 20 nS

Cossⓘ - Output Capacitance: 30 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 12 Ohm

Package: TO-92

VN4012L substitution

- MOSFET ⓘ Cross-Reference Search



VN4012L datasheet

 8.1. Size:544K  supertex
 vn4012.pdf pdf_icon

VN4012L

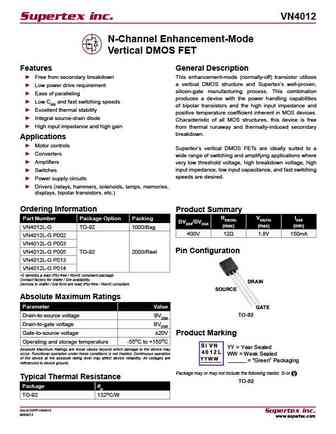

Supertex inc. VN4012 N-Channel Enhancement-Mode Vertical DMOS FET Features General Description Free from secondary breakdown This enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex s well-proven, Low power drive requirement silicon-gate manufacturing process. This combination Ease of paralleling produces a device with the power h... See More ⇒
