IXTZ67N10MA Datasheet. Specs and Replacement

Type Designator: IXTZ67N10MA  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 300 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 67 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.03 Ohm

Package: ZPAK

  📄📄 Copy

IXTZ67N10MA substitution

- MOSFET ⓘ Cross-Reference Search

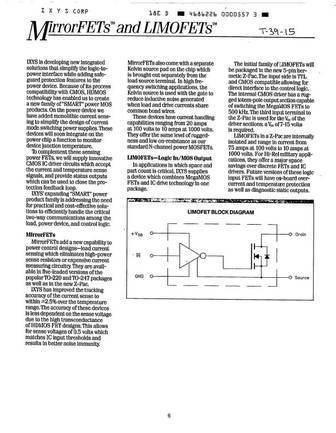

IXTZ67N10MA datasheet

 ..1. Size:681K  1
 ixth12n45ma ixth12n45mb ixth12n50ma ixth12n50mb ixth15n35ma ixth15n35mb ixth15n40ma ixth15n40mb ixtz42n20mb ixtz67n10ma ixtz67n10mb.pdf pdf_icon

IXTZ67N10MA

... See More ⇒

Detailed specifications: IXTZ24N50MA, IXTZ24N50MB, IXTZ27N40MA, IXTZ27N40MB, IXTZ35N25MA, IXTZ35N25MB, IXTZ42N20MA, IXTZ42N20MB, IRFP460, IXTZ67N10MB, J108, J109, J110, J111, J112, J113, J211
