All MOSFET. N0602N Datasheet



N0602N Datasheet and Replacement


   Type Designator: N0602N
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 156 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 100 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 12 nS
   Cossⓘ - Output Capacitance: 560 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.0046 Ohm
   Package: TO-220


 N0602N substitution

   - MOSFET ⓘ Cross-Reference Search



N0602N Datasheet (PDF)

 ..1. Size:209K  renesas
 n0602n.pdf pdf_icon

N0602N

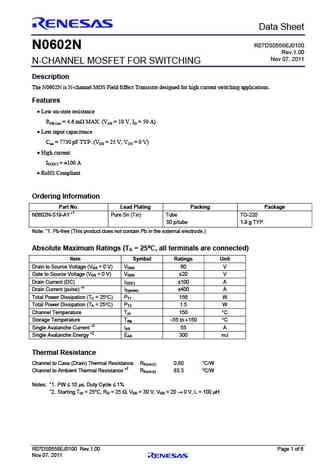

Preliminary Data Sheet R07DS0558EJ0100N0602N Rev.1.00Nov 07, 2011N-CHANNEL MOSFET FOR SWITCHING Description The N0602N is N-channel MOS Field Effect Transistor designed for high current switching applications. Features Low on-state resistance RDS (on = 4.6 m MAX. (VGS = 10 V, ID = 50 A) ) Low input capacitance Ciss = 7730 pF TYP. (VDS = 25 V, VGS = 0 V)
