Type Designator: CJX3439K

Type of Transistor: MOSFET

Type of Control Channel: NP-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.35 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 12 V

|Id| ⓘ - Maximum Drain Current: 0.75 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 4.8 nS

Cossⓘ - Output Capacitance: 13 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.38 Ohm

Package: SOT563

CJX3439K substitution

- MOSFET ⓘ Cross-Reference Search

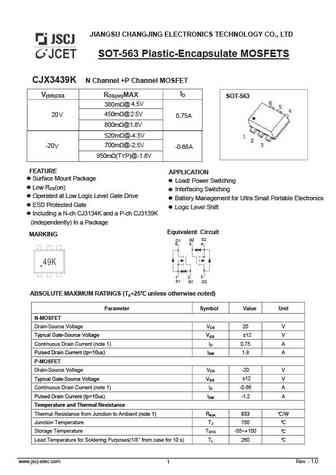

CJX3439K datasheet

 ..1. Size:924K  jiangsu
 cjx3439k.pdf pdf_icon

CJX3439K

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-563 Plastic-Encapsulate MOSFETS CJX3439K N Channel +P Channel MOSFET ID V(BR)DSS RDS(on)MAX SOT-563 380m @ 4.5V 20V 450m @2.5V 0.75A 800m @1.8V 520m @-4.5V 700m @-2.5V -20 V -0.66A 950m (TYP)@-1.8V FEATURE APPLICATION Surface Mount Package Load/ Powe... See More ⇒
