All MOSFET. VB7322 Datasheet



VB7322 Datasheet and Replacement


   Type Designator: VB7322
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 1.3 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 30 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 5.5 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 20 nS
   Cossⓘ - Output Capacitance: 100 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.030(typ) Ohm
   Package: TSOP6


 VB7322 substitution

   - MOSFET ⓘ Cross-Reference Search



VB7322 Datasheet (PDF)

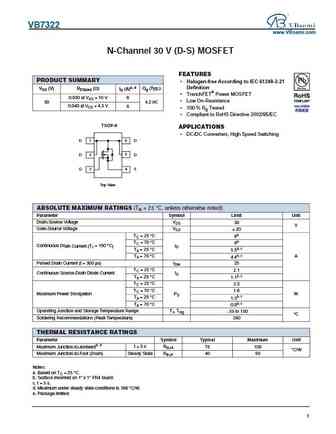

 ..1. Size:779K  cn vbsemi
 vb7322.pdf pdf_icon

VB7322

VB7322www.VBsemi.comN-Channel 30 V (D-S) MOSFETFEATURESPRODUCT SUMMARY Halogen-free According to IEC 61249-2-21DefinitionVDS (V) RDS(on) ()ID (A)a, e Qg (Typ.) TrenchFET Power MOSFET0.030 at VGS = 10 V 6 Low On-Resistance30 4.2 nC0.040 at VGS = 4.5 V 6 100 % Rg Tested Compliant to RoHS Directive 2002/95/ECTSOP-6APPLICATIONS DC/DC C
