KP809D1 PDF and Equivalents Search



KP809D1 Specs and Replacement

Type Designator: KP809D1

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 50 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 800 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 10 A

Tj ⓘ - Maximum Junction Temperature: 100 °C

Electrical Characteristics

tr ⓘ - Rise Time: 50 nS

Cossⓘ - Output Capacitance: 405 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.8 Ohm

Package: TO-218

KP809D1 substitution

- MOSFET ⓘ Cross-Reference Search



KP809D1 datasheet

 ..1. Size:330K  russia

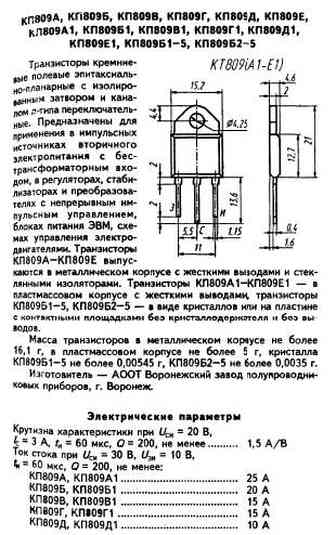

 kp809a kp809b kp809v kp809g kp809d kp809e kp809a1 kp809b1 kp809v1 kp809g1 kp809d1 kp809e1 kp809b1-5 kp809b2-5.pdf pdf_icon

KP809D1

... See More ⇒
