AONS65625 Specs and Replacement
Type Designator: AONS65625
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ
- Maximum Power Dissipation: 178 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 42 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 20 nS
Cossⓘ -
Output Capacitance: 483 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.018 Ohm
Package: DFN5X6-8L
- MOSFET ⓘ Cross-Reference Search
AONS65625 datasheet
..1. Size:422K aosemi
aons65625.pdf
AONS65625 60V P-Channel MOSFET General Description Product Summary VDS -60V Latest advanced trench technology Low RDS(ON) ID (at VGS=-10V) -42A High Current Capability RDS(ON) (at VGS=-10V) ... See More ⇒
9.1. Size:336K 1
aons62922.pdf
AONS62922 TM 120V N-Channel AlphaSGT General Description Product Summary VDS 120V Trench Power AlphaSGTTM technology ID (at VGS=10V) 85A Low RDS(ON) Logic level Gate Drive RDS(ON) (at VGS=10V) ... See More ⇒
9.2. Size:362K aosemi
aons66402t.pdf
AONS66402T TM 40V N-Channel AlphaSGT General Description Product Summary VDS 40V Trench Power MOSFET - AlphaSGTTM technology ID (at VGS=10V) 224A Low RDS(ON) Logic Level Gate Drive RDS(ON) (at VGS=10V) ... See More ⇒
9.3. Size:313K aosemi
aons66916.pdf
AONS66916 TM 100V N-Channel AlphaSGT General Description Product Summary VDS 100V Trench Power AlphaSGTTM technology ID (at VGS=10V) 100A Low RDS(ON) Low Gate Charge RDS(ON) (at VGS=10V) ... See More ⇒
9.4. Size:370K aosemi
aons66524.pdf
AONS66524 TM 150V N-Channel AlphaSGT General Description Product Summary VDS 150V Trench Power AlphaSGTTM technology ID (at VGS=20V) 56A Low RDS(ON) Low Gate Charge RDS(ON) (at VGS=10V) ... See More ⇒
9.5. Size:412K aosemi
aons66609.pdf
AONS66609 TM 60V N-Channel AlphaSGT General Description Product Summary VDS 60V AlphaSGTTM N-Channel Power MOSFET ID (at VGS=10V) 304A Low RDS(ON) Low Gate Charge RDS(ON) (at VGS=10V) ... See More ⇒
9.6. Size:771K aosemi
aons66923.pdf
AONS66923 TM 100V N-Channel AlphaSGT General Description Product Summary VDS 100V Trench Power AlphaSGTTM technology ID (at VGS=10V) 47A Low RDS(ON) Logic Level Driving RDS(ON) (at VGS=10V) ... See More ⇒
9.7. Size:419K aosemi
aons66641t.pdf
AONS66641T TM 60V N-Channel AlphaSGT General Description Product Summary VDS 60V AlphaSGTTM N-Channel Power MOSFET ID (at VGS=10V) 325A Low RDS(ON) Low Gate Charge RDS(ON) (at VGS=10V) ... See More ⇒
9.8. Size:427K aosemi
aons66407.pdf
AONS66407 TM 40V N-Channel AlphaSGT General Description Product Summary VDS 40V Trench Power MOSFET - AlphaSGTTM technology ID (at VGS=10V) 370A Low RDS(ON) Low Gate Charge RDS(ON) (at VGS=10V) ... See More ⇒
9.9. Size:780K aosemi
aons67614.pdf
AONS67614 TM 60V N-Channel AlphaSGT General Description Product Summary VDS 60V Trench Power AlphaSGTTM technology ID (at VGS=10V) 85A Low RDS(ON) Excellent QG x RDS(ON) Product (FOM) RDS(ON) (at VGS=10V) ... See More ⇒
9.10. Size:381K aosemi
aons66521.pdf
AONS66521 150V N-Channel MOSFET General Description Product Summary VDS Trench Power MOSFET technology 150V Low RDS(ON) and Gate Charge ID (at VGS=10V) 100A Enhanced Robustness RDS(ON) (at VGS=10V) ... See More ⇒
9.11. Size:314K aosemi

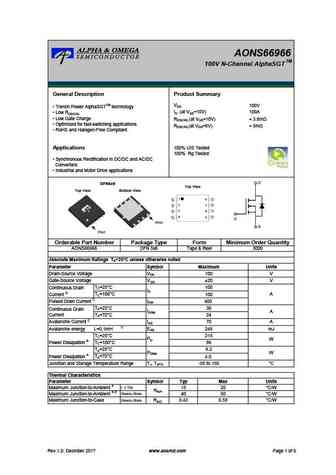

aons66966.pdf
