AOI380A60C Specs and Replacement
Type Designator: AOI380A60C
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 125 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 11 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 13 nS
Cossⓘ - Output Capacitance: 29 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.38 Ohm
Package: TO251A
AOI380A60C substitution
- MOSFET ⓘ Cross-Reference Search
AOI380A60C datasheet
aoi380a60c.pdf

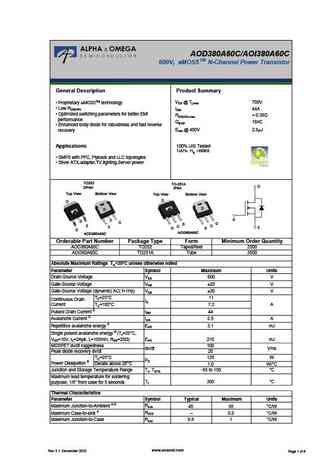

AOD380A60C/AOI380A60C TM 600V, aMOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
aod380a60c aoi380a60c.pdf
AOD380A60C/AOI380A60C TM 600V, aMOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 700V Proprietary aMOS5TM technology Low RDS(ON) IDM 44A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
