AOI950A70 Specs and Replacement
Type Designator: AOI950A70
Type of Transistor: MOSFET
Type of Control Channel: N-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 56.5 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 700 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 5 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 7 nS
Cossⓘ - Output Capacitance: 15 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.95 Ohm
Package: TO251A
AOI950A70 substitution
- MOSFET ⓘ Cross-Reference Search
AOI950A70 datasheet
aoi950a70.pdf

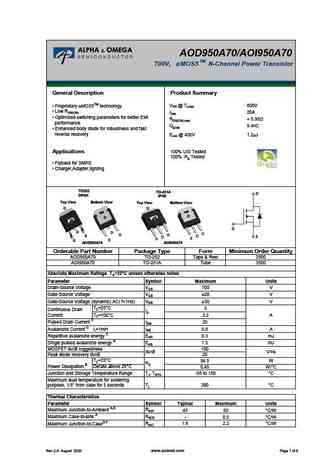

AOD950A70/AOI950A70 TM 700V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 20A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
aod950a70 aoi950a70.pdf
AOD950A70/AOI950A70 TM 700V, a MOS5 N-Channel Power Transistor General Description Product Summary VDS @ Tj,max 800V Proprietary aMOS5TM technology Low RDS(ON) IDM 20A Optimized switching parameters for better EMI RDS(ON),max ... See More ⇒
